.Load Two sides loading Tare 1200kg
Use For transporting LD1/LD2/LD3/LD4/LD8/LD11/LD26/LD29/LD39/P1P/P6P
Features Solid rubber tyre for longer life
28Hot dipped Galvanized rollers
Safety devices on the hook.
5Stoppers at the center area
Towbar laying down as a brake also connecting another dolly
Checkered plate walking ways
IATA AHM 967 standards
Position for 3 forklifts use
Steering structure with rim & ball bearing
Dimension Overall L 4137*W3450*H620mm
Flat form L3450*W2660mm
Wheelbase 1717mm
Performance payload 7000kg
Speed 30km/h
Minimum turn radius 3200mm
Working height 508-518mm
Tire Front（solid tire） 16x5-9 castor tyre
Rear（solid tire） 16x5-9 castor tyre
Roller 28pcs D=76MM *4MM
Surface Protection Hot dipped Galvanized
Main Material Chassis frame 12# Channel steel
Platform 3mm Slip tread plate or plate
Tow bar 8#Seamless steel tube
- Product Details
- {{item.text}}
Quick Details
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
L 4137*W3450*H620mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHIDGE
-
Model Number:
-
CD-10F
-
load:
-
two sides loader
-
tyre:
-
solid tyre
-
size:
-
L 4137*W3450*H620mm
Quick Details
-
Color:
-
silver
-
Use:
-
for air port
-
Material:
-
paint or galvanise
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
L 4137*W3450*H620mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHIDGE
-
Model Number:
-
CD-10F
-
load:
-
two sides loader
-
tyre:
-
solid tyre
-
size:
-
L 4137*W3450*H620mm
Product Description

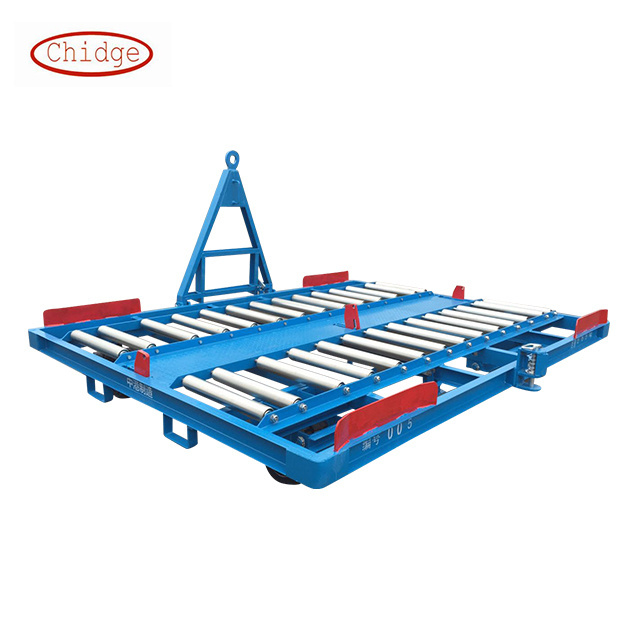

10FT airport pallet dolly for LD1,LD2,LD3, LD4 LD8
