- Product Details
- {{item.text}}
Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
EDUP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
EP-AZ803
-
Chipset:
-
MT7628NN(580MHz)
-
Peak rate:
-
300Mbps Cat4
-
Share:
-
up to 32users
-
WIFI Standard:
-
Support 802.11 b/g/n
-
LTE CHIP:
-
ZTE
-
SIM card slot:
-
Standard USIM MicroSD
-
Frequency:
-
2.4GHz
-
Interface:
-
1*Wan/ 2*Lan
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
EDUP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
EP-AZ803
-
Chipset:
-
MT7628NN(580MHz)
-
Peak rate:
-
300Mbps Cat4
-
Share:
-
up to 32users
-
WIFI Standard:
-
Support 802.11 b/g/n
-
LTE CHIP:
-
ZTE
-
SIM card slot:
-
Standard USIM MicroSD
-
Frequency:
-
2.4GHz
-
Interface:
-
1*Wan/ 2*Lan

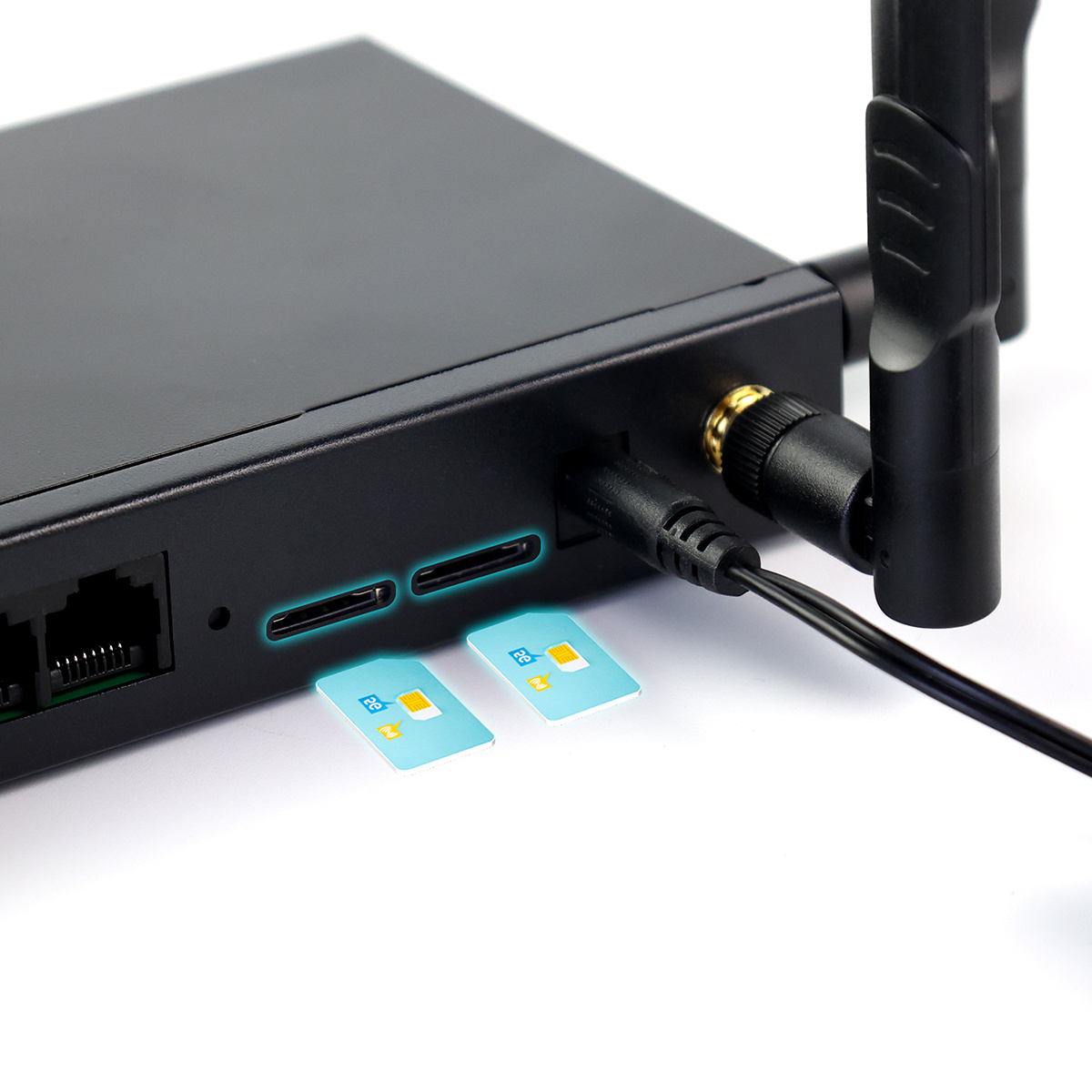

EDUP New Arrival 300Mbps 4G Industrial CPE Load Balancing Dual SIM 4G LTE Router
|
H ardware |
|||
|
C PU |
MT7628NN |
||
|
M emory |
8M ROM+64M RAM |
||
|
R adio |
2T2R,300Mbps,2.4GHz |
||
|
A ntenna |
2* 5 dBi 2. 4G External Antenna 2* 5 dBi 4G External Antenna |
||
|
I nterface |
1* 10/100M Auto MDI/MDIX RJ45 LAN port
1 * DC 1 * RS485 3 * GPIO |
||
|
B utton |
1 * R eset |
||
|
LED |
1 * LTE ,1* VPN , 1*Signal |
||
|
S ize |
99 x88 x30mm |
||
|
P ower |
DC:12V/1A |
||
|
Mounting Type |
Sliding Rail D esktop Wall Mounted |
||
|
RF parameter |
|||
|
W ireless S tandard |
IEEE 802.11 b/g/n |
||
|
17dBm _ 802.11 g _54Mbps(MAX) |
|||
|
RX sensitivity |
11n : -70dBm@10% PER
|
||
|
S oftware |
|||
|
B asic |
O peration M ode |
R outer,AP,WISP, R epeater |
|
|
ISP |
3G/4G ,W AN |
||
|
DHCP |
DHCP sever, R elay, C lient L ist |
||
|
V rtual S erver |
P ort F orwarding,DMZ,UPnP |
||
|
Firewalls |
IP / MAC/URL F ilter, R emote C ontrol |
||
|
DDNS |
Support |
||
|
Q oS |
IP/MAC |
||
|
S tatic Route |
Support |
||
|
L OG |
Support |
||
|
O thers |
QIG |
Support |
|
|
N etwork S witch |
Support |
||
|
Network Detection |
Support |
||
|
4G M odule (Optional) |
|||
|
L TE N etwork T ype |
LTE:B1/3/4/5/7/8/20/28/40 |
||
|
WCDMA:B1 / 5/8 |
|||
