Quick Details
-
Place of Origin:
-
Zhejiang, China
-
POWER:
-
1/4HP
Quick Details
-
Pressure:
-
AC
-
Brand Name:
-
OEM
-
Model Number:
-
VP1A
-
Place of Origin:
-
Zhejiang, China
-
POWER:
-
1/4HP

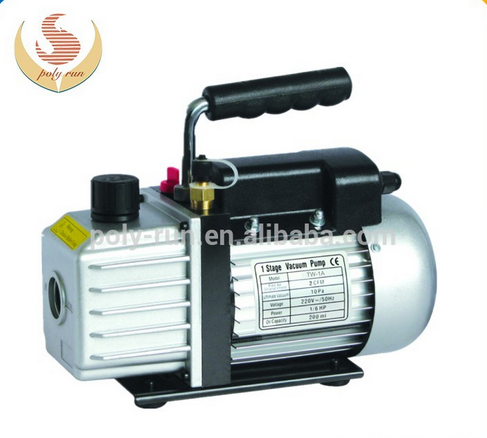

Commercial and Auto air-condition system Single Stage Vacuum Pump (VP1A)
|
Voltage |
220V/50 HZ |
110V/60HZ |
||
|
Free Air Displacement |
2 CFM |
2.5 CFM |
||
|
58 L/min |
0.96 L/S |
72 L/min |
1.2 L/S |
|
|
Ultimate Vacuum |
10 Pa |
|||
|
75 Microns |
0.1 mbar |
|||
|
Motor |
1/6HP |
|||
|
Rotating Speed |
1440 r/min |
1720 r/min |
||
|
Intake Fitting |
1/4SAE |
|||
|
Oil Capacity |
200 ml |
|||
|
Dimension |
270 x 110 x 250 mm |
|||
|
Net Weight |
7.6 kg |
|||
|
Model |
VP0.5A |
VP1A |
VP1.5A |
VP2A |
VP3A |
VP4A |
VP5A |
|
|
Flow Rate (cfm) |
220V~/50Hz |
1CFM 30L/min |
2CFM 60L/min |
3CFM 85L/min |
4CFM 115L/min |
5.5CFM 156L/min |
8CFM 212L/min |
9CFM 260L/min |
|
115V~/60Hz |
1.2CFM 36L/min |
2.5 CFM 72 L/min |
3.6CFM 102L/min |
4.5CFM 128L/min |
6.6CFM 188L/min |
9CFM 255L/min |
11CFM 312L/min |
|
|
Actual Ultimate Vacuum |
20Pa 150Microns |
20Pa 150Microns |
20Pa 150Microns |
20Pa 150Microns |
20Pa 150Microns |
20Pa 150Microns |
20Pa 150Microns |
|
|
Power(HP) |
1/ 6 |
1/ 6 |
1/ 4 |
1/3 |
1/2 |
1/ 2 |
3/4 |
|
|
Motor speed (r / min) |
220V~/50Hz |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
115V~/60Hz |
1720 |
1720 |
1720 |
1720 |
1720 |
1720 |
1720 |
|
|
Inlet Port (optional) |
1/4 SAE |
1/4 SAE |
1/4 SAE |
1/4 SAE |
1/4 SAE |
1/4 SAE |
1/4 SAE |
|
|
Oil Capacity (ml) |
160 |
250 |
200 |
250 |
320 |
700 |
700 |
|
|
Dimensions LxWxH (mm) |
240X115X230 |
249x121x230 |
249x121x230 |
315x125x240 |
340x135x260 |
390x145x280 |
425X155X280 |
|
|
Weight(kg) |
6 |
7.2 |
7.4 |
8.8 |
9.8 |
15.5 |
16 |
|
