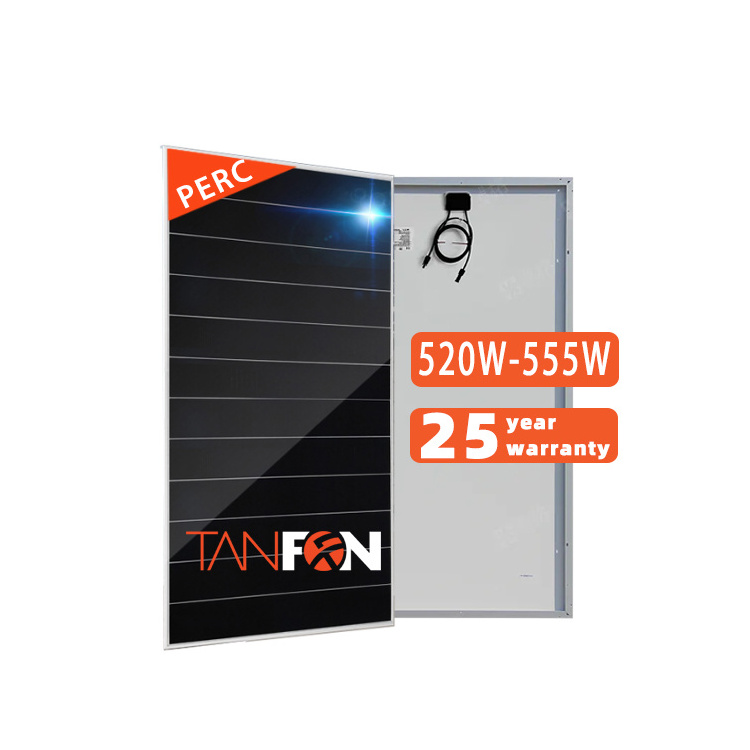

Use automatic welding machine to connect solar cells in series
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2056*1236*35mm
-
Panel Efficiency:
-
22%
-
Application:
-
Solar Energy System Projects
-
Type:
-
PERC, Half Cell, Bifacial, All Black, Black Frame 520w/540w/545w/555w
-
NMOT:
-
42.3℃(±2)
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Panel efficiency:
-
22%
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm2 Symmetrical Lengths
-
Glass:
-
3.2mm High Transmission Tempered Glass
-
Warranty:
-
25 years
-
Connector:
-
Compatible MC-4/Male/Female/Fuse
Quick Details
-
Cell size:
-
210mm*210mm
-
Brand Name:
-
TF
-
Model Number:
-
TFL520-555W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2056*1236*35mm
-
Panel Efficiency:
-
22%
-
Application:
-
Solar Energy System Projects
-
Type:
-
PERC, Half Cell, Bifacial, All Black, Black Frame 520w/540w/545w/555w
-
NMOT:
-
42.3℃(±2)
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Panel efficiency:
-
22%
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm2 Symmetrical Lengths
-
Glass:
-
3.2mm High Transmission Tempered Glass
-
Warranty:
-
25 years
-
Connector:
-
Compatible MC-4/Male/Female/Fuse
bifacial monocrystalline shingled 400w portatil 1000w getting installed kit completo 500w kit plate price 1000watts solar panel
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|
|
|||||
|
TFL-210X30_10_36
|
555
|
550
|
545
|
540
|
520
|
|||||
|
Maximum Power-Pm [W]
|
555
|
550
|
545
|
540
|
520
|
|||||
|
Open Circuit Voltage-Voc [V]
|
48.081
|
48.077
|
48.08
|
48.08
|
48.08
|
|||||
|
Short Circuit Current-Isc [A]
|
14.690
|
14.672
|
14.657
|
14.543
|
14.013
|
|||||
|
Maximum Power Voltage-Vm [V]
|
39.50
|
39.49
|
39.45
|
39.42
|
39.41
|
|||||
|
Maximum Power Current-Im [A]
|
14.690
|
14.672
|
14.657
|
14.543
|
14.012
|
|||||
|
Module Efficiency-η [%]
|
21.88
|
21.66
|
21.45
|
21.23
|
21.02
|
|||||
|
Mechanical Characteristics
|
|
|
|
|
|
|||||
|
Dimensions
|
2056×1236×35mm (L×W×H)
|
|
|
|
|
|||||
|
Weight
|
25.6kg
|
|
|
|
|
|||||
|
Front Glass
|
White toughened safety glass, 3.2mm
|
|
|
|
|
|||||
|
Cells
|
210*210 PERC solar cells
|
|
|
|
|
|||||
|
Back Sheet
|
high weatherability backsheet
|
|
|
|
|
|||||
|
Frame
|
Anodized aluminum profile
|
|
|
|
|
|||||
|
Junction Box
|
IP68,TUV,two diodes
|
|
|
|
|
|||||
|
Cable
|
Length 1200mm, 1×4mm²
|
|
|
|
|
|||||
|
Connector
|
Compatible with MC4
|
|
|
|
|
|||||
|
Temperature Characteristics
|
|
|
|
|
|
|||||
|
NMOT
|
42.3℃(±2)
|
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
-0.27%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
0.04%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Pm
|
-0.34%/℃
|
|
|
|
|
|||||
|
Maximum Ratings
|
|
|
|
|
|
|||||
|
Maximum System Voltage [V]
|
DC 1500IEC)
|
|
|
|
|
|||||
|
Series Fuse Rating [A]
|
20
|
|
|
|
|
|||||
|
Maximum Surface Load Capacity [Pa]
|
5,400
|
|
|
|
|
|||||
|
Temperature Range [°C]
|
– 40~+ 85
|
|
|
|
|
|||||
|
Withstanding Hail
|
Maximum diameter of 25 mm with impact speed of 23 m/s
|
|
|
|
|
|||||
Recommend Products
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string.
typeset the battery string.
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
previous process
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
