Quick Details
-
Panel Size:
-
7.5inch, 7.5inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Stag75
-
Specification:
-
7.5inch
-
Panel Brand:
-
Minew, Minew
-
Firmware Support:
-
OTA
-
Battery:
-
5 Years Lifetime
-
Certification service:
-
TELEC/MIC/IC/KC/WPC/RCM
-
Detection range:
-
120 metre
-
Warranty:
-
1 Years
-
Frequency:
-
2.4GHz
Quick Details
-
Application:
-
Indoor
-
Type:
-
OLED
-
Brand Name:
-
Minew
-
Panel Size:
-
7.5inch, 7.5inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Stag75
-
Specification:
-
7.5inch
-
Panel Brand:
-
Minew, Minew
-
Firmware Support:
-
OTA
-
Battery:
-
5 Years Lifetime
-
Certification service:
-
TELEC/MIC/IC/KC/WPC/RCM
-
Detection range:
-
120 metre
-
Warranty:
-
1 Years
-
Frequency:
-
2.4GHz
Product Description

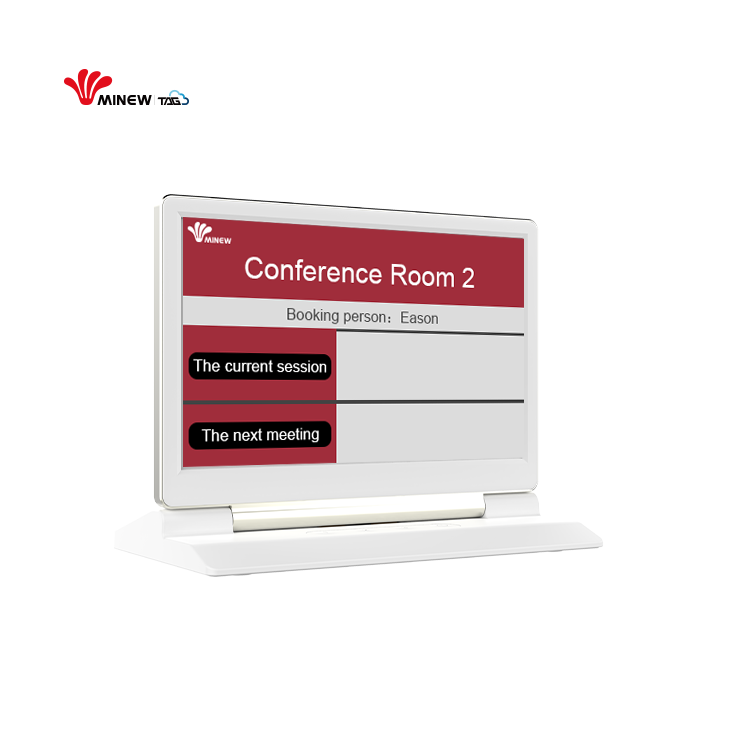

7.5 Inch Electronic E-Ink Label Wireless Bluetooth Flexible Big Large E Ink Display For Office Table
ESL (Electronic Shelf Label) is used by retailers for displaying product pricing information on shelves instead of the traditional
paper pricing tag. The application of ESL will fundamentally improve the problems of errors, data leakage, and other problems
caused by manually replacing labels. ESL can display product information clearly and accurately.
1. Minew BLE5.0 solutions consist of three parts: Gateway, ESLs and Cloud platform.
2. Gateway G1-D is base station. The communcation with ESLs and Cloud platform is Bi-Directional.
3. Cloud platform can integrated with other ERP or POS systems to achieve the Information Synchronised.
|
Model Number
|
MTag75R
|
|
Size
|
7.5 inch
|
|
Dimensions (mm)
|
178.9x124.9x13
|
|
Pixel colors
|
Black/White/Red
|
|
Material
|
ABS
|
|
Function
|
Product information display
|
|
Technology
|
BLE5.0
|
|
Fittings
|
Rails, T Shaped Stand, Ice Plug
|
|
Features
|
NFC（Optional), LED Lights, IP65
|
|
Battery Life
|
5 Years（up to 2 updates/day）
|
|
Operating Temperature
|
Room Temperature（0℃~40℃）
|
FAQ
1. What composed in the whole esl system? Is there any advantage?
Minew ESL solutions: Gateway, ESLs, and Cloud platform, Gateway is the communication bridge between ESLs and the Cloud system.
Minew ESL solutions utilized the latest BLE 5.0 technology which achieve the faster speed and longer range in updating the ESLs.
2. What size ESL do you have?
MINEW ESL include 1.54'', 2.13'', 2.7'', 2.9'', 3.7'', 4.2'', 5.8'', 7.5'', 11.6''.
3. What distance of the gateway? How many tags it can bind?
Normally the distance of gateway is 25-30 meters in radius. Theoretically, a gateway can bind as many as 5000pcs ESLs, however binding less than 1000pcs is recommended for faster refreshing time.
4. Template can be customized?
Minew ESL solutions support DIY template, With our software,everyone is the designer.
5. Is it with battery? how long time of the battery?
Yes, build-in lithium battery with 5 years battery lifetime, replaceable.
6. How about warranty?
1 year. Provide lifetime technical support.
7. We don't need your cloud, Can I use my own system.
Minew ESL solutions: Gateway, ESLs, and Cloud platform, Cloud is mandatory, however, we offer SDK/API for integration, Also support local installation on your own server.
Don't worry data safe.
8. How many cloud license fee.
It depends, negotiable.
9. How about sample order?
For samples, we provide a complete solution demo kit which include ESLs, Gateway and Cloud Platform for testing.
10. What is include in Demo kit? Instock? Delivery time?
A demo kit contains G1-D gateway, 3 pcs of 1.5'' ESL, 3 pcs of 2.1'' ESL, 2 pcs of 2.9'' ESL, 1 pcs of 4.2 inch ESL, access to demo Cloud platform, manual and some accessories.
In stock with 5-7days delivery time.
11. Can we customize our logo? How about MOQ?
Yes, we support OEM with your logo base on MOQ 1000pcs.
