Maintenance regulations.
1. Check the fasteners of each part frequently in use, and tighten them in time if they are loose;
2. The gear meshing area of this machine is lubricated by grease, refuelling once every half a month, and there is powder metallurgy axle tile in the bearing seat, the oil cup on the bearing seat should be filled with oil twice every shift, otherwise the axle and the axle tile will be glued together at your own risk;
3. The amount of flour added to the dough should not exceed the capacity of the dough drum, so as not to burn the motor;
4. If the dough is found to have oil stains, it should be overhauled in time and the oil seal should be replaced.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v, 380v
-
Power:
-
13.2kw, 13.2kw
-
Dimension(L*W*H):
-
1820*810*1675MM
-
Weight:
-
130 KG
-
Output product name:
-
dough
-
Machinery Function:
-
knead dough
-
Keyword:
-
Multiple Dough Mixer
-
Material:
-
304 Stainless Steel
Quick Details
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
xinyu
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220v, 380v
-
Power:
-
13.2kw, 13.2kw
-
Dimension(L*W*H):
-
1820*810*1675MM
-
Weight:
-
130 KG
-
Output product name:
-
dough
-
Machinery Function:
-
knead dough
-
Keyword:
-
Multiple Dough Mixer
-
Material:
-
304 Stainless Steel
Product Description
Installation and use.
1. Check whether the fasteners of each part of the machine are loose, if loose, they need to be tightened.
2. Place the machine on a level ground that is not easily accessible to bystanders.
3. The lower part of the machine must be reliably grounded at the grounding mark to avoid injury from leakage.
4. Users provide their own all-pole disconnecting device (such as knife gate), the machine cable into.
5. Close the knife gate, trigger the switch handle, so that the machine test run, the machine can be put into use without abnormal sound.

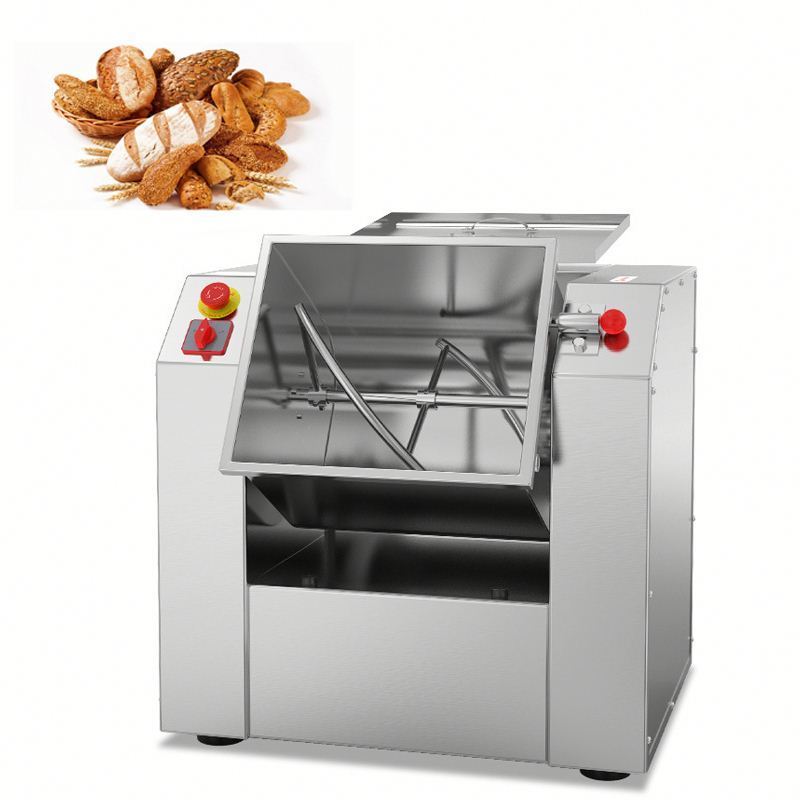

This series of pasta machine for restaurants, enterprises and institutions and food processing plants, steamed bread, cakes, doughnuts, buns, snacks, biscuits, bread, cakes and other pasta use. The machine has the characteristics of low noise, high working efficiency, compact structure, flexible and simple operation, even noodle and easy maintenance.
|
Capacity
|
Power
|
Output
|
Size
|
|
75KG
|
3.55KW
|
150KG-900KG
|
1390*620*1350
|
|
100KG
|
4.55KW
|
200KG-1.2T
|
1490*620*1350
|
|
150KG
|
9.7KW
|
300KG-1.8T
|
1675*810*1620
|
|
200KG
|
13.2KW
|
400KG-2.4T
|
1820*810*1675
|
|
250KG
|
19.6KW
|
500KG-3T
|
1890*960*1750
|
|
300KG
|
24KW
|
600KG-3.6T
|
2050*1000*1780
|
Specification
