Quick Details
-
Dimension(L*W*H):
-
1315*296*314 cm
-
Weight:
-
49000 KG
-
Rated power:
-
133 kW
-
Max. Torque:
-
150KN*m
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tewrex
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1315*296*314 cm
-
Weight:
-
49000 KG
-
Rated power:
-
133 kW
-
Max. Torque:
-
150KN*m
Product Description
* It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary
stability and transport convenience.
* It adopts the electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
* With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
* Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep
detection device is setted in main winding,single rope to make deep inspection more accurate.
* The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
stability and transport convenience.
* It adopts the electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
* With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
* Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep
detection device is setted in main winding,single rope to make deep inspection more accurate.
* The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
Contact us: Monica Yin
|
Model
|
|
Unit
|
XR150D
|
|
|
Engine
|
Rated power
|
kW
|
133
|
|
|
Power unit
|
Max. output torque
|
kN.m
|
150
|
|
|
|
Rotate speed
|
r/min
|
6~28
|
|
|
Max. drilling diameter
|
|
mm
|
800
|
|
|
Max. drilling depth
|
|
m
|
20
|
|
|
Max. extraction force
|
|
kN
|
400
|
|
|
Main winch
|
Max. winch speed
|
m/min
|
75
|
|
|
|
Diameter of steel rope
|
mm
|
28
|
|
|
Vice winch
|
Max. elevation force
|
kN
|
50
|
|
|
|
Max. winch speed
|
m/min
|
60
|
|
|
Drilling mast Inclination
|
Lateral
|
°
|
3
|
|
|
Chassis
|
Max. walking speed
|
km/h
|
3.2
|
|
|
|
Max gradeability
|
%
|
40
|
|
|
|
Min. ground clearance
|
mm
|
352
|
|
|
|
Track shoe width
|
mm
|
800
|
|
|
|
Track shoe's largest overall width
|
mm
|
2960-4100
|
|
|
Hydraulic system
|
Working pressure
|
Mpa
|
32
|
|
|
Machine working quality/Transporation quality
|
|
t
|
48/43
|
|
|
Boundary dimension
|
Working condition
|
mm
|
8620*4100*22845
|
|
|
L*W*H
|
Transporation condition
|
mm
|
13610*2960*3040
|
|
|
Drilling Depth
|
Max.20m
|
|
|
|
|
Mobility
|
yes
|
|
|
|
|

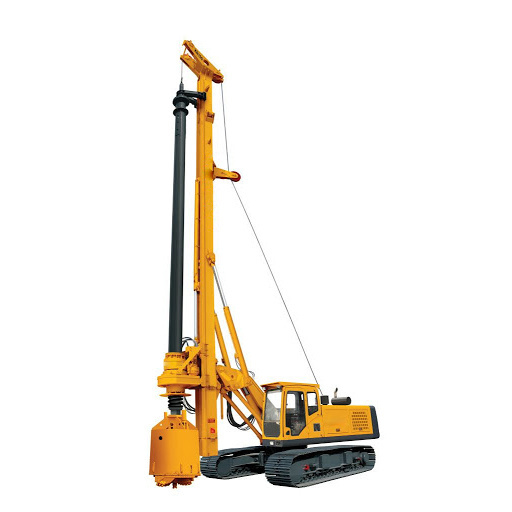

Product name
|
Rotary Drilling Machine
|
|
|
|
|
Application
|
Construction
|
|
|
|
|
Name
|
Multifunction Hydraulic Drilling Rig
|
|
|
|
|
Feature
|
High Drilling Efficiency
|
|
|
|
|
Keyword
|
rotary drilling rig
|
|
|
|
|
Drilling method
|
Top Drive Hydraulic Rotary Drilling
|
|
|
|
|
Engine
|
CUMMINS QSB5.9-C160
|
|
|
|
|
Overall machine height
|
14.7M
|
|
|
|
|
Overall transport height
|
3.547M
|
|
|
|
|
Color
|
aurora green
|
|
|
|
