This equipment is can be used for various construction environment with spraying two-component materials spray(optional) like
polyurethane foaming materials, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating,
cement layer protection, wastewater disposal,roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold
storage insulation, wall insulation and so on.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
3-phase 380V 50Hz single phase 220V 50Hz
-
Dimension(L*W*H):
-
650*600*1000mm
-
Power (kW):
-
12
-
Weight (KG):
-
200 KG
-
Power source:
-
3-phase 380V 50Hz single phase 220V 50Hz
-
Driven mode:
-
Pneumatic
-
Maximum output pressure:
-
20MPa
-
Whole power:
-
12 KW
-
Heater power:
-
3kw *2
-
Chemical output:
-
2-12kg/min
-
A and B chemical output ratio:
-
1:1
-
Air source:
-
more than 0.9cub meter/min,8bar
-
Max hose support:
-
15 meters
-
Keywords:
-
polyurethane foam machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Machine Type:
-
foam spray machine
-
Voltage:
-
3-phase 380V 50Hz single phase 220V 50Hz
-
Dimension(L*W*H):
-
650*600*1000mm
-
Power (kW):
-
12
-
Weight (KG):
-
200 KG
-
Power source:
-
3-phase 380V 50Hz single phase 220V 50Hz
-
Driven mode:
-
Pneumatic
-
Maximum output pressure:
-
20MPa
-
Whole power:
-
12 KW
-
Heater power:
-
3kw *2
-
Chemical output:
-
2-12kg/min
-
A and B chemical output ratio:
-
1:1
-
Air source:
-
more than 0.9cub meter/min,8bar
-
Max hose support:
-
15 meters
-
Keywords:
-
polyurethane foam machine
Product Overview

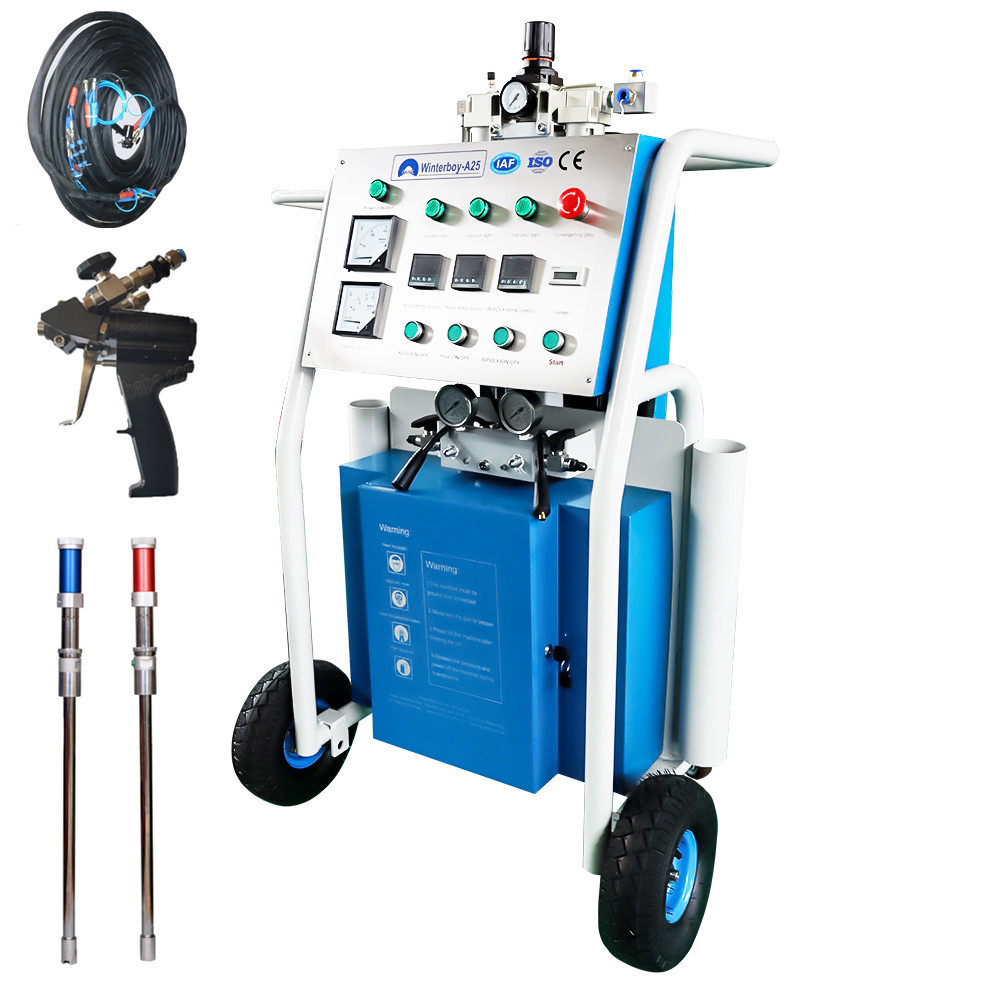

Polyurea and Polyurethane spray foam machine
1. Stable cylinder supercharged unit, easily providing adequate working pressure;
2. Small volume, light weight, low failure rate, simple operation, easy mobility;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the
maximum;
4. Minimizing spraying congestion with 4-layers-feedstock device;
5. Multi-leakage protection system to protect the safety of the operator;
6. Equipped with emergency switch system, help operator deal with emergencies rapidly;
7. Digital counting system can understand original consumption timely;
8. Reliable & powerful 380Vor 220vheating system enables rapid warming of raw materials to the best state, making sure it works
great in cold condition;
9. Humanized design with equipment operation panel, super easy to get the hang of it;
10.Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
11.The latest spraying gun has great features like small volume, light weight, low failure rate,etc;
2. Small volume, light weight, low failure rate, simple operation, easy mobility;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the
maximum;
4. Minimizing spraying congestion with 4-layers-feedstock device;
5. Multi-leakage protection system to protect the safety of the operator;
6. Equipped with emergency switch system, help operator deal with emergencies rapidly;
7. Digital counting system can understand original consumption timely;
8. Reliable & powerful 380Vor 220vheating system enables rapid warming of raw materials to the best state, making sure it works
great in cold condition;
9. Humanized design with equipment operation panel, super easy to get the hang of it;
10.Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
11.The latest spraying gun has great features like small volume, light weight, low failure rate,etc;
PRODUCT SPECIFICATIONS
|
Model
|
Winterboy A25
|
|
Power source
|
3-phase 380V 50Hz/single phase 220V 50Hz
|
|
Heating power
|
12KW
|
|
Driven mode
|
pneumatic
|
|
Air source
|
0.3~0.8 MPa ≥0.9m³/min
|
|
Raw output
|
2~12 kg/min
|
|
Maximum output pressure
|
22MPA
|
|
Heating Temperature
|
0-90℃
|
|
AB material outputratio
|
1:1
|
|
Spray gun
|
1 Set
|
|
Feeding pump
|
2 sets
|
|
Heating hose
|
15 meters
|
|
Gun connection pipe
|
2 pieces
|
|
Feed delivery pipe
|
2 pieces
|
|
pneumatic pipe
|
5 meters
|
|
Spare parts
|
1 set
|
Details Image
Product Application
Winterboy A25 polyurea spray foma machine
applications
