Quick Details
-
Type:
-
2.4 GHz
-
Country of Origin:
-
China
-
Brand:
-
Cansec Wireless
-
size:
-
8*8.35*1.5mm
-
Support Protocol:
-
BLE5.0
-
Frequency:
-
2.4GHz
-
Power supply:
-
1.8-3.8V
-
Current Draw(TX/RX/Standby):
-
6.1mA/5.9mA/1μA
-
TX Power/RX Sensitivity:
-
2dBm/-97dBm
-
Flash/Ram:
-
128KB/28KB
-
I/O:
-
10
Quick Details
-
Model Number:
-
AN2640R2CA-A
-
Chipset:
-
Ti CC2640R2FRSM
-
Application:
-
IoT
-
Type:
-
2.4 GHz
-
Country of Origin:
-
China
-
Brand:
-
Cansec Wireless
-
size:
-
8*8.35*1.5mm
-
Support Protocol:
-
BLE5.0
-
Frequency:
-
2.4GHz
-
Power supply:
-
1.8-3.8V
-
Current Draw(TX/RX/Standby):
-
6.1mA/5.9mA/1μA
-
TX Power/RX Sensitivity:
-
2dBm/-97dBm
-
Flash/Ram:
-
128KB/28KB
-
I/O:
-
10

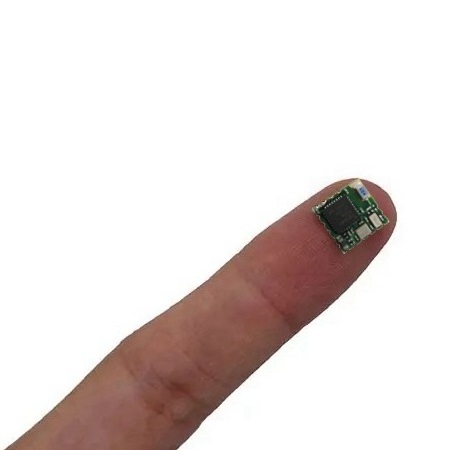

AN2640R2CA-A is A very small Bluetooth module that supports Bluetooth 5.1.
Its small size, low power consumption characteristics
are more suitable for wearable class or small volume requirements of products.
are more suitable for wearable class or small volume requirements of products.
Specifications
|
Parameter
|
|
Min
|
Typ
|
Max
|
Unit
|
|||
|
Operating Voltage
|
|
1.8
|
-
|
3.8
|
V
|
|||
|
Operating Temperature
|
|
-20
|
-
|
+70
|
°C
|
|||
|
Current
Consumption
|
Sleep Mode
|
-
|
1
|
-
|
μA
|
|||
|
|
Receive Mode
|
-
|
5.9
|
-
|
mA
|
|||
|
|
Transmit Mode
|
-
|
6.1
|
-
|
mA
|
|||
|
TX Power
|
|
-
|
-
|
1.1
|
dBm
|
|||
|
RX Sensitivity
|
|
-
|
-
|
-96
|
dBm
|
|||
|
Distance
|
|
30
|
-
|
150
|
m
|
|||
Terminal Description
|
Pad Number
|
Name
|
Description
|
Pin Type
|
|
1
|
JTM
|
JTAG TMSC
|
Digital I/O
|
|
2
|
JTC
|
JTAG TCKC
|
Digital I/O
|
|
3
|
VDDS
|
1.8V to 3.8V Power Supply
|
Power
|
|
4
|
GDN
|
Ground
|
Ground
|
|
5
|
DIO3
|
GPIO, High drive capability, JTAG_TDO
|
Digital I/O
|
|
6
|
DIO4
|
GPIO, High drive capability, JTAG_TDI
|
Digital I/O
|
|
7
|
DIO5
|
GPIO, Sensor Controller, Analog
|
Digital/Analog I/O
|
|
8
|
DIO6
|
GPIO, Sensor Controller, Analog
|
Digital/Analog I/O
|
|
9
|
DIO7
|
GPIO, Sensor Controller, Analog
|
Digital/Analog I/O
|
|
10
|
RSET
|
Reset, active-low. Internal pullup
|
Digital I/O
|
|
11
|
DIO8
|
GPIO, Sensor Controller, Analog
|
Digital/Analog I/O
|
|
12
|
DIO9
|
GPIO, Sensor Controller, Analog
|
Digital/Analog I/O
|
|
13
|
DIO2
|
GPIO, Sensor Controller, High drive capability
|
Digital I/O
|
|
14
|
DIO1
|
GPIO, Sensor Controller, High drive capability
|
Digital I/O
|
|
15
|
DIO0
|
GPIO, Sensor Controller, High drive capability
|
Digital I/O
|
|
16
|
GND
|
Ground
|
Ground
|
|
17
|
GND
|
Ground
|
Ground
|
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have
quality assurance?
A3;
Each of our products has undergone quality testing and has two years of free after-sales service.
