Quick Details
-
Model Number:
-
YX-2500-CM
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
42X22X8CM
-
Weight:
-
5.8KGS
-
Color:
-
Dark Grey
-
Warranty:
-
12 Months
-
Output waveform:
-
Modified Sine Wave Output
-
Max. charging current:
-
20A/12V
-
Certificate:
-
CE FCC ROHS
-
Product name:
-

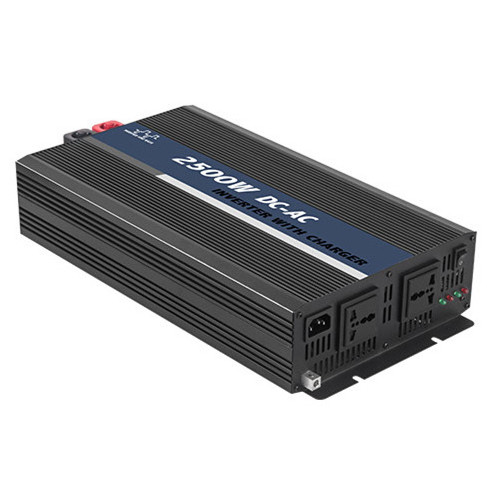

inverter with charger
-
OEM:
-
YES
-
type:
-
inverter
Quick Details
-
Output Current:
-
12A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YASSION
-
Model Number:
-
YX-2500-CM
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
42X22X8CM
-
Weight:
-
5.8KGS
-
Color:
-
Dark Grey
-
Warranty:
-
12 Months
-
Output waveform:
-
Modified Sine Wave Output
-
Max. charging current:
-
20A/12V
-
Certificate:
-
CE FCC ROHS
-
Product name:
-
inverter with charger
-
OEM:
-
YES
-
type:
-
inverter
| INVERTER SPECIFICATIONS-2500W | ||||
| Model | YX-2500-CM | |||
| Output Waveform | Modified Sine Wave | |||
| Continuous Power | 2500W | |||
| Peak Power | 5000W | |||
| Frequency | 50Hz/60Hz | |||
| Efficiency | up to 90% | |||
| Input Voltage | DC12V | DC24V | DC48V | |
| 10-15.5V | 20-31V | 40-61V | ||
| Low voltage protection | 10±0.5V | 20±1V | 40±1V | |
| Over voltage protection | 15.5±0.5V | 31±1V | 61±1V | |
| Output Voltage | 100V/110V/115V/120V/220V/230V/240V | |||
| No Load Current Draws | <1.0A | |||
| Cooling fan | Temperature and load controlled | |||
| Max charger current | 12V | 24V | 48V | |
| 20A | 10A | 10A | ||
| charger process | Main Charge, Floating Charge, Full Charge | |||
| Dimensions(L*W*H) | 420*220*80mm | |||
| Weight | 5.8 ± 0.5kgs | |||
| Protection Function | Low voltage shut down protection | |||
| Over input voltage protection | ||||
| Over temperature protection | ||||
| Over load protection | ||||
| Short circuit protection | ||||
| Reverse polarity protection (Fuse) | ||||
| LED Indicator Light | Charging: when charging,the light turns red. | |||
| Full: once the battery was fully charged,the light will turn green. | ||||
| Inverter: this light will turn green when the switch is ON status. | ||||
| Fault: turns red shows fault. | ||||
| Fuse | External | |||
| USB port | 5V,500mA | |||
| Grounding | Ground Chassis: Properly grounds the Inverter to vehicle grounding system or to earth ground. | |||
| Remote control | Control your Inverter at a distance with Remote Control switch | |||
| Application | Automobiles, RVs, boats, tractors, turcks, laptops, TV sets, video games, Cdplayers, DVD players, power tool, office equipment, major household appliances, etc. | |||
| Environment | Operating temperature: 0°C--+40°C @ 100% load; ≥ +60°C @ 50% load | |||
| Operating relative humidity:20%--90% RH non-condensing | ||||
| Storage temperature:-30°C--+70°C | ||||
| Cooling Fan automatically run:inner temperature rising up is ≥45°C, or load power is rising up ≥ 30% | ||||
| Accessories | one pair of 70CM battery cables | |||
| 1 x instruction manual | ||||
| 8 x replaceable fuses | ||||
| Certificate | CE approved | |||
