Quick Details
-
Brand Name:
-
DINGGAN
-
Theory:
-
Magnetic Sensor
-
Output:
-
Switching Transducer
-
Size / Dimension:
-
M12
-
Voltage - Supply:
-
10...30 VDC
-
Output ways:
-
NPN NO/NPN NC/PNP NO/PNP NC
-
Mounting Type:
-
FLUSH
-
Sensing Range:
-
According to the strength of magnetic steel
-
Application:
-
Industrial Automation
-
Connection:
-
2m PVC cable
-
Protection level:
-
IP67
-
Package / Case:
-
metal housing
-
Description:
-

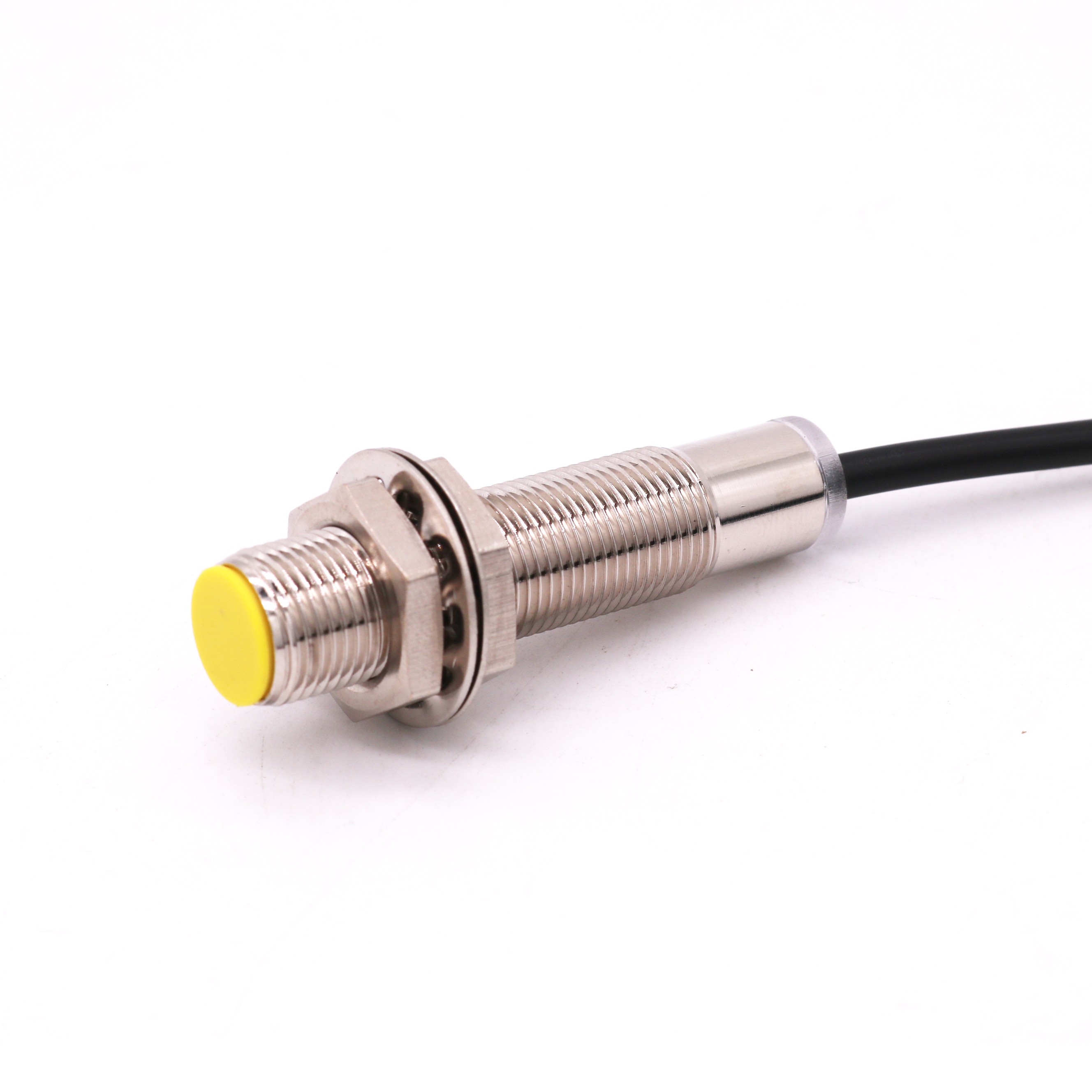

Hall Sensor
Quick Details
-
Use:
-
Magnetic Sensor
-
Model Number:
-
HTC12F10DPO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGGAN
-
Theory:
-
Magnetic Sensor
-
Output:
-
Switching Transducer
-
Size / Dimension:
-
M12
-
Voltage - Supply:
-
10...30 VDC
-
Output ways:
-
NPN NO/NPN NC/PNP NO/PNP NC
-
Mounting Type:
-
FLUSH
-
Sensing Range:
-
According to the strength of magnetic steel
-
Application:
-
Industrial Automation
-
Connection:
-
2m PVC cable
-
Protection level:
-
IP67
-
Package / Case:
-
metal housing
-
Description:
-
Hall Sensor
Product Description
Specification
|
Part number
|
|
|
|
NPN NO
|
HTC12F10DNO
|
|
|
NPN NC
|
IHTC12F10DNC
|
|
|
PNP NO
|
HTC12F10DPO
|
|
|
PNP NC
|
HTC12F10DPC
|
|
|
Technical specifications
|
|
|
|
Mounting type
|
Flush
|
|
|
Rated distance(Sn)
|
10mm(According to the strength of permanent magnet)
|
|
|
Dimensions
|
M12*32mm
|
|
|
Output
|
NO/NC(Depends on above part number)
|
|
|
Supply voltage
|
10...30 VDC
|
|
|
Standard target
|
Permanent Magnet
|
|
|
Switch point drifts(%/Sr)
|
≤±10%
|
|
|
Load current
|
100mA
|
|
|
Voltage drop
|
≤1.5V
|
|
|
Consumption current
|
80mA
|
|
|
Protection circuit
|
Short-circuit, overload, reverse polarity
|
|
|
Indicator
|
Red LED
|
|
|
Ambient temperature
|
-20ºC...70 ºC
|
|
|
Switching frequency(F)
|
3000Hz
|
|
|
Insulation resistance
|
≥500MΩ(500VDC)
|
|
|
Vibration resistance
|
10...50Hz(1.5mm)
|
|
|
Protection degree
|
IP67
|
|
|
Connection type
|
2m PVC cable
|
|
|
Housing material
|
Nickel-copper alloy
|
|
