Mainly used to control AC motor forward and reverse(such as: projection screen, electric curtains, electric hangers, garage doors, retractable doors etc), can use the equipment to be controller to achieve the motor's positive and negative, or switch on and off conversion to achieve wired and wireless compatibility
- Product Details
- {{item.text}}
Quick Details
-
Encoding type:
-
Learning Code
-
Key word:
-
motor forward and reverse stop switch
-
Working voltage:
-
AC220±10% or DC12V and 24V can be choose
-
Load power:
-
≤500w
-
Distance:
-
100-500 meters(open space)
-
Frequency:
-
315MHz/433.92MHz/other
-
N.W:
-
80g
-
Use range:
-
Electric curtains, electric hangers, garage doors etc
-
Dimension:
-
92*50*18mm
-
Product Name:
-
AC220V wireless remote control switch rolling door
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Encoding type:
-
Learning Code
-
Key word:
-
motor forward and reverse stop switch
-
Working voltage:
-
AC220±10% or DC12V and 24V can be choose
-
Load power:
-
≤500w
-
Distance:
-
100-500 meters(open space)
-
Frequency:
-
315MHz/433.92MHz/other
-
N.W:
-
80g
-
Use range:
-
Electric curtains, electric hangers, garage doors etc
-
Dimension:
-
92*50*18mm
-
Product Name:
-
AC220V wireless remote control switch rolling door
Product Description

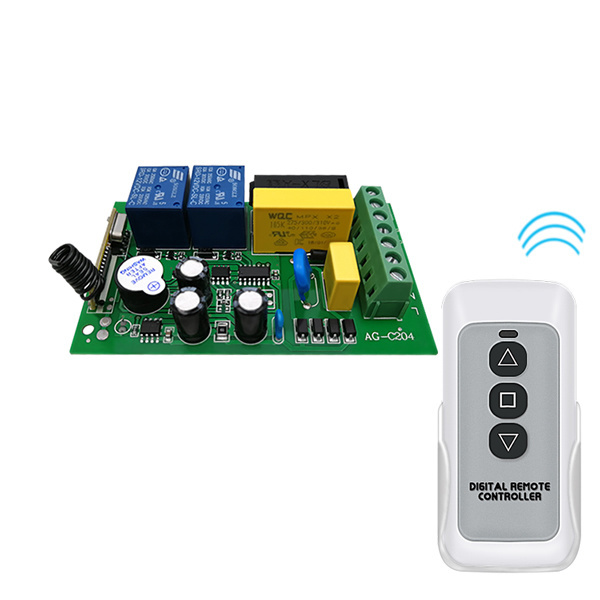

Motor Up Down Stop Remote Control Switch DC 12V 24V AC220V Motor Forwards Reverse Stop Wireless Switches 315 433MHz
|
Product Name
|
Wireless remote control switch
|
|
Model
|
AB-C204
|
|
Frequency
|
315mhz, 433mhz
|
|
Voltage
|
DC12V, DC24, AC220V optional
|
|
Max current
|
10A
|
|
Encoding type
|
Learning code
|
|
Use range
|
Electric curtains, electric hangers, garage doors etc
|
Learning way
First complete clear the code, then press UPbutton or DOWN button, press one of the button on the remote at the same time, wait until the LED flashes five times, at that time means learning code has been completed
Note
UP and DOWN buttons are independent learn
After power-on, the LED indicator is always on, and the LED flashes when running
Clearing code way
After ensuring that the power wire is correctly connected, the power-on LED is on, press the STOP button without releasing, wait for LED flash twice, that means complete clear code
Precautions
1. The bottom plate is charged, do not touch after power on.
2. If the motor does not work after installation, you can exchange the direction line to try
-
-
-
-
Application
Packing&Shipping
You also can choose your own shipping forwarder.
Company Introduction
Shenzhen Aiba Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.
Our Services & Strength
Our services
1). Your inquiry related to our products or prices will be replied in 12 hours
2). Well-trained and experienced staffs to answer all your enquires in fluent English
3). OEM & ODM, any your customized products we can help you to design and put into production
4). Protection of your sales area, ideas of design and all your private information
5). Deliver by air mail or ship for your orders
Trade terms
1). Payment:T/T, Paypal and western union, other payment terms can negotiable
2). Bulk order 30% deposits before production,70% balance to be paid before delivery
3) . Samples can be delivered in 3-5 work days
4) . Shipping freight are quoted under your requests
5) . Discounts are offered based on order quantities
6). FOB price are quoted under inquiry
Certification
FAQ
Q: Are you a trade company or manufacturer?
We are a manufacturer
Q: What products does your company can provide?
We produce wireless remote control&remote control switch, remote control duplicator, brand remote control replacement, transmitter and receiver module, infrared beam sensor, smart touch switch etc.
Q: What is the MOQ of your company?
Our MOQ is 100pcs, if need sample first to test we warmly welcome!
Q: If I want to print our logo in your products can you do it for us?
Yes, we can customized for you just need tell us the detailed information about your request.
Q: When can I receive my goods after make payment?
Generally it depends on your quantity, if there is in stock samples will be shipped to you 3-5 working days, and bulks order need 7-15 working days.
