Quick Details
-
Max Speed:
-
10-20PCS/Min
-
Voltage:
-
220V50Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JSM
-
Dimension(L*W*H):
-
1100x460x450mm
-
Weight:
-
64 KG, 64KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

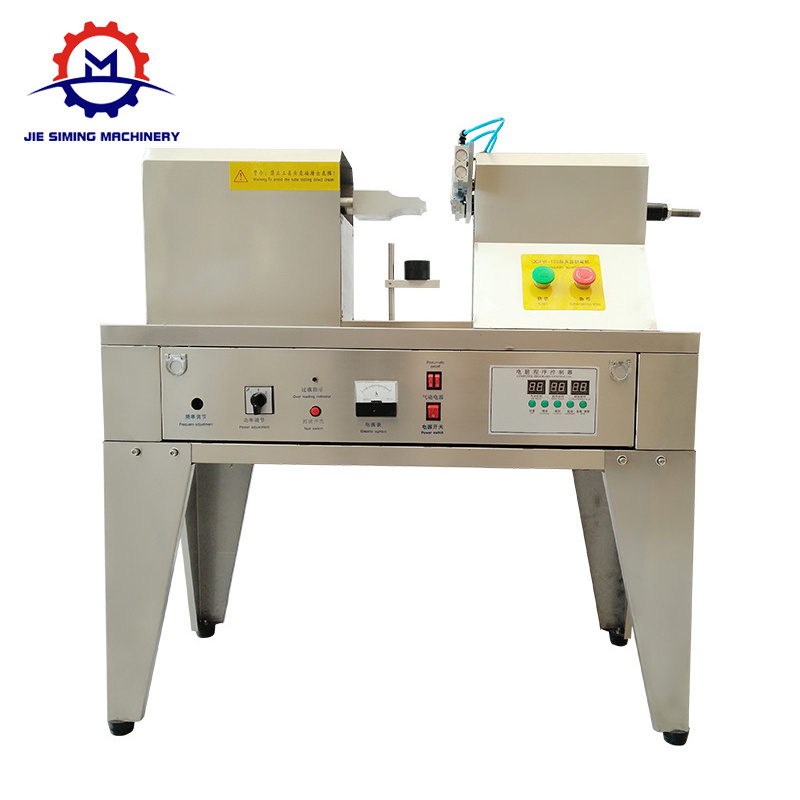

ultrasonic tube tail sealing machine
-
Sealing diameter:
-
5-80MM(customizable)
-
Processing height:
-
0-300MM(customizable)
-
Sealing speed:
-
15 sticks/minutes
-
Whether or not a knife:
-
have
-
Work plan:
-
70MM
-
Working frequency:
-
20KHZ
-
Function:
-
ultrasonic tube tail sealing
Quick Details
-
Packaging Type:
-
CANS, case
-
Packaging Material:
-
Paper, Plastic, Wood
-
Driven Type:
-
Electric
-
Max Speed:
-
10-20PCS/Min
-
Voltage:
-
220V50Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JSM
-
Dimension(L*W*H):
-
1100x460x450mm
-
Weight:
-
64 KG, 64KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
ultrasonic tube tail sealing machine
-
Sealing diameter:
-
5-80MM(customizable)
-
Processing height:
-
0-300MM(customizable)
-
Sealing speed:
-
15 sticks/minutes
-
Whether or not a knife:
-
have
-
Work plan:
-
70MM
-
Working frequency:
-
20KHZ
-
Function:
-
ultrasonic tube tail sealing
Product Application
Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.
Working principle
Utilizing the energy produced by c high speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last.
Machine feature
1.Two dimensional adjustment of work piece platform, it is easy to operate.
2.It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.
3.Overload protection, phase separation protection, power-fail protection.
4.Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.
5.It can sealing soft tube also can printing date and cutting.
Control stability
The machine adopts high quality chip circuit board, which is stable in control.
High-quality components
High quality cylinder, reliable quality, durable, long service life.
Sealing, cutting and printing at one time
Increase the sealing and cutting function, forming once. This machine is suitable for toothpaste, cosmetics, food hoses.
Oil-water filter
Filter moisture and dust in the air to protect the machine cylinder. Increase the service life of the machine.
Ultrasound End Seal
Ultrasound sealing end, sharp edge cutting, beautiful effect, precision steel manufacturing, durable.
Liftable hose bracket
It can lift hose bracket and can be used for hoses of different sizes.
Independent Overload and Overcurrent Protection Device.
Independent Overload and Overcurrent Protection Device.In order to avoid the problem of current overload.
