Product Name:
-

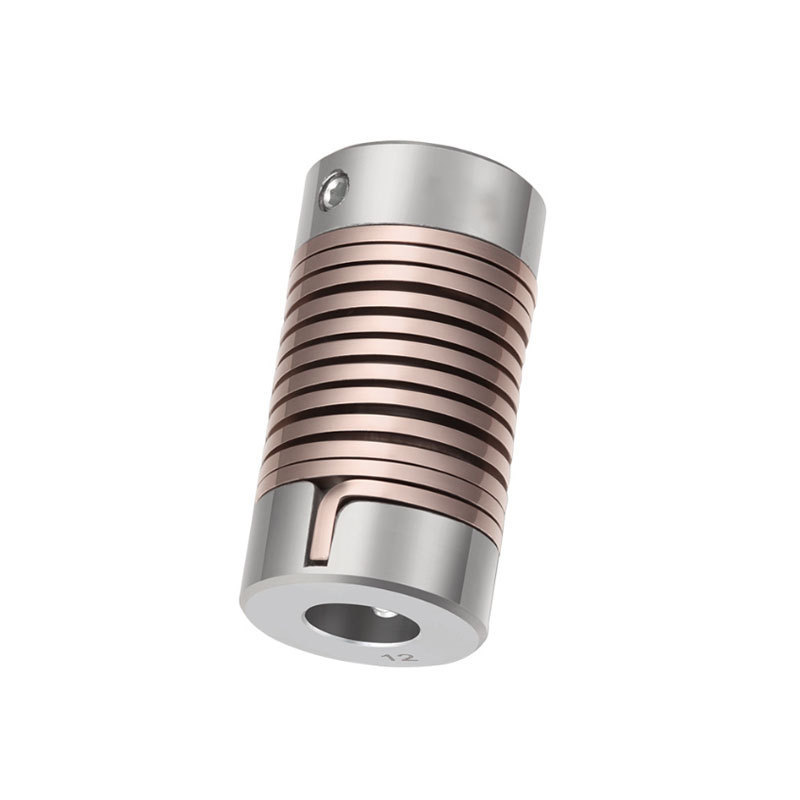

Encoder Coupling
-
OEM & ODM:
-
Acceptable
-
Packing:
-
Carton or wooden box
-
Keyword:
-
Rigid Coupling
Quick Details
-
Warranty:
-
6 Months
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
-
Structure:
-
Universal
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Steel
-
Brand Name:
-
KONLIDA
-
Place of Origin:
-
Jiangsu, China
-
Product Name:
-
Encoder Coupling
-
OEM & ODM:
-
Acceptable
-
Packing:
-
Carton or wooden box
-
Keyword:
-
Rigid Coupling
Products Description
Features:
● Bushings made of Zinc alloy
● Elastomer made of Spring steel
● Simple structure,flexible, low inertia,allowing angular misalignments
● The installation is easy, the spring steel is more efficiently absorbed parallelangular misalignments and shaft end-play
● Applicable to micro-motorencoder
● Setscrew type.
● Simple structure,flexible, low inertia,allowing angular misalignments
● The installation is easy, the spring steel is more efficiently absorbed parallelangular misalignments and shaft end-play
● Applicable to micro-motorencoder
● Setscrew type.
Specification
Dimension:(Unit:mm)
|
Model Parameter
|
Common Bore Diameter d1,d2
|
ΦD
|
L
|
LF
|
F
|
M
|
Tightening Screw Torque (N.M)
|
|||||||
|
KLD-16X25
|
5,6,6.35,7,8,9,10
|
16
|
25
|
11.45
|
4.0
|
M3
|
0.7
|
|||||||
|
KLD-16X35
|
5,6,6.35,7,8,9,10
|
16
|
35
|
12.5
|
3.8
|
M4
|
1.7
|
|||||||
|
KLD-26X50
|
6,6.35,7,8,9,10,11,12,12.7,14
|
26
|
50
|
17
|
5.0
|
M5
|
4
|
|||||||
|
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters.
|
|
|
|
|
|
|
|
|||||||
Specifications(Unit:mm)
|
Model Parameter
|
Rated Torque(N.m)
|
Allowable Eccentricity (mm)
|
Allowable Deflection Angle (°)
|
Allowable Axial Deviation (mm)
|
Maximum Speed (rpm)
|
Moment of Inertia (N· m)
|
Coupling Weight (g)
|
|||||||
|
KLD-16X25
|
0.5
|
1
|
8
|
±1.0
|
3000
|
1.02x10-6
|
30
|
|||||||
|
KLD-16X35
|
0.5
|
1
|
8
|
±1.0
|
3000
|
1.02x10-6
|
70
|
|||||||
|
KLD-26X50
|
1.5
|
3
|
8
|
±1.0
|
3000
|
1.15x10-5
|
130
|
|||||||
|
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters.
|
|
|
|
|
|
|
|
|||||||
Application
Applied to CNC Machine、Laser Cutting Machines 、Ball Screws、Module Slides、Electronic Equipment、Automation equipment.
