- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MiCODUS
-
Model Number:
-
MV901N
-
Size:
-
33 (L) x 15 (W) x 90 (H) mm
-
Backup Battery:
-
180mAh, Upload interval time 1 hour ,the battery last around 7 days.
-
Weight:
-
63.2g
-
Operating Voltage:
-
9-95VDC
-
Network:
-
2G GSM / GPRS 850/900/1800/1900Mhz
-
GPS Sensitivity:
-
-159dBm
-
Positioning Ways:
-
GPS + LBS
-
Tracking system:
-
Www.micodus.net
-
Certificate:
-
CE ROHS
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, Beidou, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Waterproof, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence, Cut Off Fuel, Movement Alarm, Vibration Alarm, Engine ON/OFF Alarm, Cut Wire Alarm, History Route Playback for 6 Months, Life Time Free MiCODUS Tracking Platform
-
Data Storage:
-
Cloud Storage, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MiCODUS
-
Model Number:
-
MV901N
-
Size:
-
33 (L) x 15 (W) x 90 (H) mm
-
Backup Battery:
-
180mAh, Upload interval time 1 hour ,the battery last around 7 days.
-
Weight:
-
63.2g
-
Operating Voltage:
-
9-95VDC
-
Network:
-
2G GSM / GPRS 850/900/1800/1900Mhz
-
GPS Sensitivity:
-
-159dBm
-
Positioning Ways:
-
GPS + LBS
-
Tracking system:
-
Www.micodus.net
-
Certificate:
-
CE ROHS
Products Description

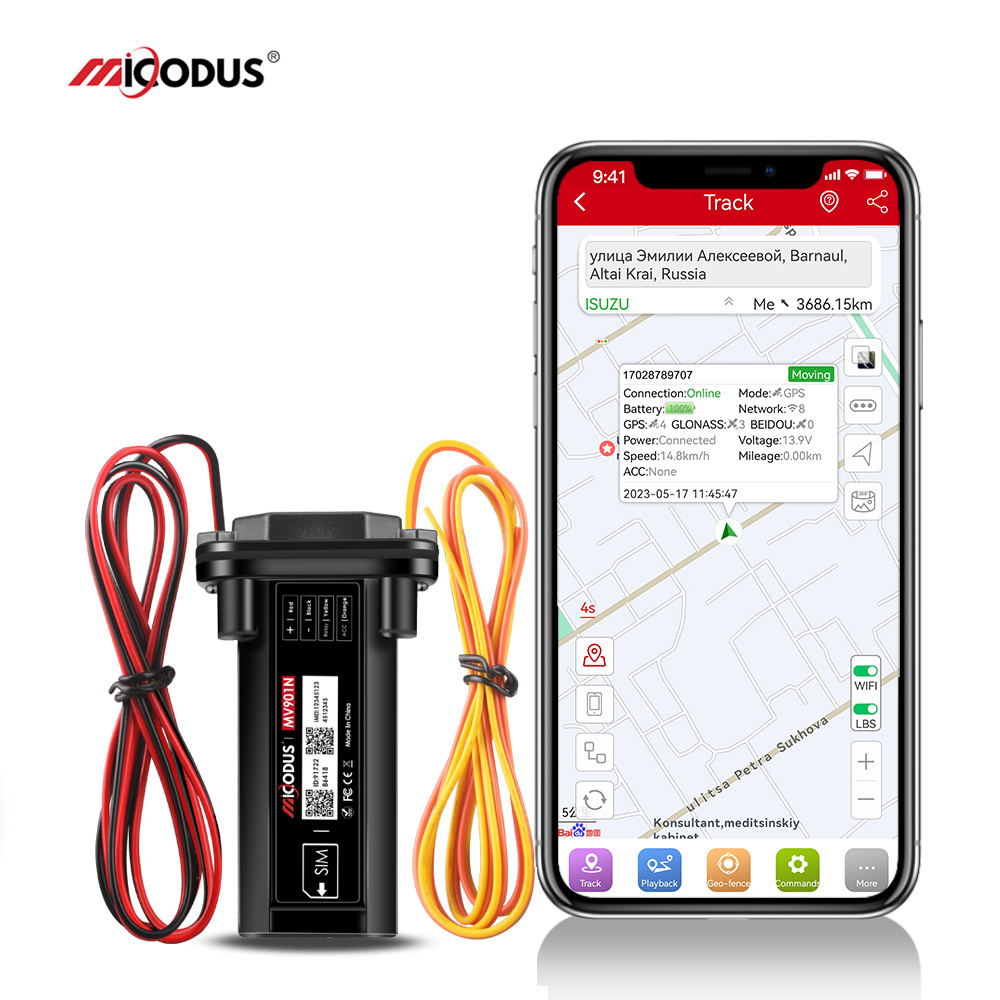

Micodus Tracking System Remote Kill Switch Waterproof MV901N Vehicle Motorcycle Real Time Location Gps Mini Car Tracker Device
Main Features:
1. Compact Size Design and Easy Installation
2. Wide Operating Voltage 9-95V DC , compatible with most vehicles on the market!
3. Remotely Cut Off & Resume Fuel.
4. GPS+LBS+GLONASS+BEIDOU Positioning Ways
5. Realtime Tracking
6. History Route Playback for 180days
7. Power Saving Mode
8. Overspeed Alarm,Movement Alarm,Vibration Alarm.Geofence,Cut Wire Alarm, Engine ON/OFF Alarm.
9. Waterproof
10. ACC Detection.
2. Wide Operating Voltage 9-95V DC , compatible with most vehicles on the market!
3. Remotely Cut Off & Resume Fuel.
4. GPS+LBS+GLONASS+BEIDOU Positioning Ways
5. Realtime Tracking
6. History Route Playback for 180days
7. Power Saving Mode
8. Overspeed Alarm,Movement Alarm,Vibration Alarm.Geofence,Cut Wire Alarm, Engine ON/OFF Alarm.
9. Waterproof
10. ACC Detection.
11. Waterproof
12. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP!
12. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP!
13. MiCODUS Tracking Platform Supports
Multiple Languages.
www.micodus.net
APP: Micodus
APP: Micodus
|
Model
|
MV901N
|
|
Size
|
33 (L) x 15 (W) x 90 (H) mm
|
|
Weight
|
63.2g
|
|
Working Voltage
|
9-80V DC
|
|
Battery Capacity
|
-20℃~55℃
|
|
Working Humidity
|
10%~85%RH non-condensing
|
|
Working Network
|
2g gsm/gprs: 850/900/1800/1900Mhz
|
|
SIM Card
|
Normal SIM
|
|
Cellular Antenna
|
Built-in
|
|
Cold Start
|
≤32 Seconds
|
|
Hot Start
|
≤1 Second
|
|
Position Type
|
GPS+BEIDOU+LBS
|
|
GPS Antenna
|
Built-in
|
|
Tracking sensitivity
|
-162dBm
|
|
GPS Channels
|
64
|
|
Position Accuracy
|
5-10m
|
9-95V Wide Working Voltage
With wide working voltage, MV901N can work with car, truck, motorcycle, electric car and other vehicles. Besides, ,it has built-in protection power board, you needn't worry about the high pressure damage.
Realtime Tracking
It is working based on the GNSS system(GPS+GLONASS+BEIDOU），has no lomit on the tracking distance. And you will can realtime track your target on google maps at anytime anywhere.
Remotely Cut off Fuel
Once met emergency situation you will can remotely cut off the fuel of your car via your cellphone, you also can resume it remotely.
GPS Data Compens By Cornering
When turning, the device will upload a GPS data in order to reflect the details of turning, the uploaded positioning data will be more denser and the trajectory query is more accurate.
GPS Data Supplementary Of Network Blind Area
Without network, the device will disconnect with the server, but the GPS data will be saved by the built-in memory, once the network signal recovered the saved data will be uploaded to the tracking server.
Multiple Alarms For Anti-theft
MiCODUS MV901N GPS tracker has multiple functions: Geo-fence, Movement alarm, Vibration alarm, Engine ON/OFF alarm, Cut wire alarm.
Installation Recomendation
Installation Recomendation for cars: 1. Under Front Dash. 2. Inside Door Pedal
Installation Recomendation for motorcycle: 1.Inside the head light. 2.Inside the front cover 3.Under the pedal 4. Inside the taillight component or plastic
NOTE:
1). The device should face up to the sky.
2). Metal thermal barrier of heating layer of the windshield affects the signal.
NOTE:
1). The device should face up to the sky.
2). Metal thermal barrier of heating layer of the windshield affects the signal.
How to Install the SIM Card
1). Unscrew the screw and open the lip.
2). Plug-in SIM ca
rd (SIM card not include).
3). After inserting the card, there are blue and orange LED lights flashing respectively.
4). Just screw in the screws.
About MiCODUS Tracking Platform
LIFETIME FREE ! Web server and both iOS and Android version APP are available!
1). Time Zone & Local Language: More than 10 languages and timezone settings
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). Lifetime free tracking platform.
7). MiCODUS tracking platform support most GPS models.
8
). Micodus platform can host unlimited quantity of gps tracking device.
www.micodus.net
APP: MiCODUS
1.What is your minimum order quantity?
A: 1pc.
2. Why the GPS tracker device is off-line?
A: Maybe 3 reasons: device power off or outage; weak or none signal;SIM card debts or GPRS service overdue.
3. Why can not monitor?
A: Because you didn't set up the specific number and open the caller display of you SIM card. The latter will affect the former and lead to monitor failure.
4. What is the applicable range of this product?
A: We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycles, e-bikes, motorbikes, buses, etc.
5. Can you do hardware/firmware customization?
A: Yes, OEM/ODM is our specialty. Our R&D team has more than 10 years industry experience.
6. How is quality control and warranty?
A: 2 year warranty. All products have been 100% strictly Quality Checked before packing.
7.
Why are your prices higher than other sellers?
A:
We have strict quality requirements for our products and invest a lot of cost in production. We are committed to providing
high-quality products for
our customers .
8. Does your device have whereabouts safety hazards?
A: Don't worry, when you log in for the first time, the system will ask you to change your password compulsorily. No one can view your device without your permission.
9. Can I add other brands of device to your tracking platform, or add your device to other brands' tracking platform?
A: Generally, as long as the network protocol is compatible, the device can be added to the tracking platform.
