Quick Details
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
90*45*37cm
-
Weight:
-
35 KG
-
Sealing bag material:
-
Aluminum bags paper bags and plastic bags
-
sealing wheels options:
-
3 kinds
-
sealing bag width:
-
10mm
-
sealing bag length:
-
0-unlimited
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Paper
-
Driven Type:
-
Electric
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
90*45*37cm
-
Weight:
-
35 KG
-
Sealing bag material:
-
Aluminum bags paper bags and plastic bags
-
sealing wheels options:
-
3 kinds
-
sealing bag width:
-
10mm
-
sealing bag length:
-
0-unlimited
Product Description

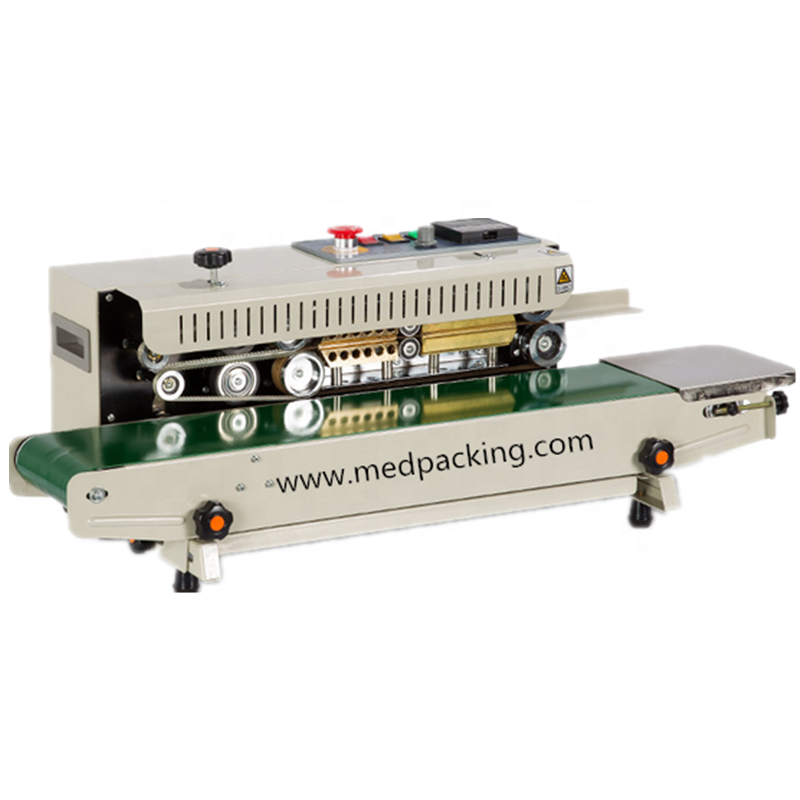

Automatic FR-770 continuous band sealing machine
FR-770 series of automatic plastic film sealing machine adopts electronic constant temperature control and automatic conveying device, can control different shapes of plastic film bags, can be used in all kinds of packaging line, the seal length is not limited
Sealing machine widely used in: food, aquatic, chemical and electronics industries.
Sealing machine can seal all kinds of bags Kraft paper, fresh keeping bag, tea bag, aluminum foil bag, shrink film, food packaging bag, etc.
Notice :
This machine is standard with embossing wheel. If need smooth wheel and stripe wheel need to buy additional.
The operation method for printing wheel to change date
A: Use a corss screwdriver to unscrew the screw head
B: Unscrew the top screw, the screw does not need to take off, you can unscrew
C: Lift the wheel by hand, slowly remove the wheel
D: Remove the embossing wheel
E: Wheel and wrench
F: With the wheel wrench unscrew the lid
G:Unscrew the lid, took out the words，Change the words you need.
The operation method for printing wheel to change date
A: Use a corss screwdriver to unscrew the screw head
B: Unscrew the top screw, the screw does not need to take off, you can unscrew
C: Lift the wheel by hand, slowly remove the wheel
D: Remove the embossing wheel
E: Wheel and wrench
F: With the wheel wrench unscrew the lid
G:Unscrew the lid, took out the words，Change the words you need.
Specification
|
Model
|
FR770 horizontal and vertical model
painted and SUS304 model
|
|
Power supply:
|
220/110V,50HZ
|
|
Sealing width
|
6-----12mm(adjustable)
|
|
Temp.range
|
0--------300°(adjustable)
|
|
Sealing length
|
0- Unlimited
|
|
No.of printing words
|
13
|
|
Exterior dimensions
|
Horizontal type:850*420*320(mm)
Vertical type:850*320*550(mm) Console type:850*420*1000(mm) |
|
Sealing Power
|
500W
|
|
Motor Power
|
50W
|
|
Sealing speed
|
0-20m/min
|
|
Printing type
|
Dry-ink printing
|
|
Film thickness
|
≤0.08mm
|
|
Convery loading
|
≤5KG
|
|
Dimension(L*W*H)
|
850*420*320mm
|
|
Net Weight
|
19kg
|
