Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAMOTEC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
customization
-
Power (kW):
-
9
-
Weight (KG):
-
1400
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Acrylic MDF Plastic Fabric Wood
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
NcStudio Control System
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Transmission:
-
Taiwan TBI Ball Screw
-
Showroom Location:
-
Jinan China
-
Spindle power:
-
3.5KW / 4.5KW / 6KW
-
Keywords:
-
Tombstone Engraving Machine
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAMOTEC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
customization
-
Power (kW):
-
9
-
Weight (KG):
-
1400
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Acrylic MDF Plastic Fabric Wood
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
NcStudio Control System
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Transmission:
-
Taiwan TBI Ball Screw
-
Showroom Location:
-
Jinan China
-
Spindle power:
-
3.5KW / 4.5KW / 6KW
-
Keywords:
-
Tombstone Engraving Machine
Product Description

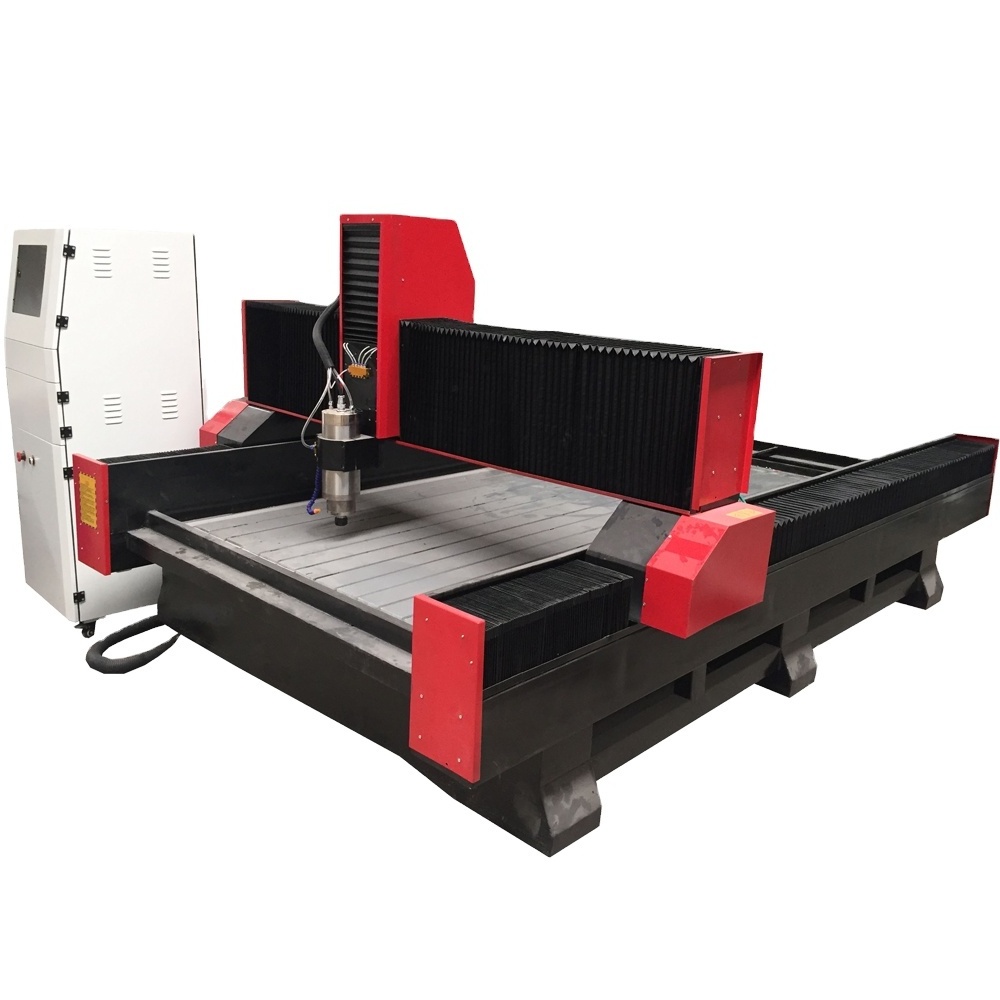

Marble Graving Machine Cnc 3 Axis Stone Sculpture Carving Machine For Tombstone Making For Sale
Product Paramenters
|
No
|
Description
|
Parameter
|
|
1
|
X,Y,Z Working Area
|
1300x2500x300mm
|
|
2
|
X,Y,Z Repositioning Accuracy
|
±0.05mm
|
|
3
|
Table surface
|
T steel and hard PVC
|
|
4
|
Frame
|
Welded structure
|
|
5
|
X, Y axis transmission
|
Rack and pinion gear
|
|
6
|
Z transmission
|
Ball Screw
|
|
7
|
Rail Configuration
|
Taiwan Hiwin square guide rail
|
|
8
|
Max. Traveling Rate
|
25000mm/min
|
|
9
|
Max. Working Speed
|
15000mm/min
|
|
10
|
Spindle Power
|
5.5kw water cooling ATC spindle
|
|
11
|
Spindle Speed
|
24000RPM
|
|
12
|
Drive Motors
|
Leadshine easy servo system (Opitional Yaskawa servo motors)
|
|
13
|
Working Voltage
|
AC380V/50Hz/3PH
|
|
14
|
Command Language
|
G Code
|
|
15
|
Operating System
|
Weihong NK260 ATC control System (Opitional:NC studio for pc)
|
|
16
|
Computer Interface
|
USB
|
|
17
|
Software Compatibility
|
Type3,Ucancam,Artcut (Optional )
|
|
18
|
Packing Size
|
Wooden case
|
|
19
|
N.W.
|
1500Kg/1800kgs
|
|
20
|
Capacity
|
≥2000kgs
|
Sample&Application
Application Industry
Stone Industry : Stone, ink-stone cutting, tomb stone, jade and marble products.
Kitchen Ware Industry : Man-made marble cabinet table surface.
Artwork Decoration Industry : Wood crafts, gift box, jewelry box and other exquisite art crafts.
Woodworking industry : Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical andantique furniture, Exquisite European furniture, decorative products sculpture.
Mold Industry : Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossedmould, biscuit, candy, chocolate mould; Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.
Advertising Industr y: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fairsigns, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel,lightbox;
Application Materials
1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade,crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.
2. Such as granite stone can be layered engraving to 3mm.
3. Marble, bluestone can be engraving to 3mm on time.
4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing,flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect
Quality Control
Packing & Delivery
Wooden cases packing
After-sales Service
1.we have one year warranty, if you have any problems, please contact us.(warranty for the spare parts)
2.we have 24h online service.
3.You can come to our factory to learn how to use the machine or our engineers available to your country to teach you how to use the machine.
4.we have complete English instructions and videos teach you how to use the machine.
