Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Cartmay
-
Model Number:
-
SWAQG-01
-
Product name:
-

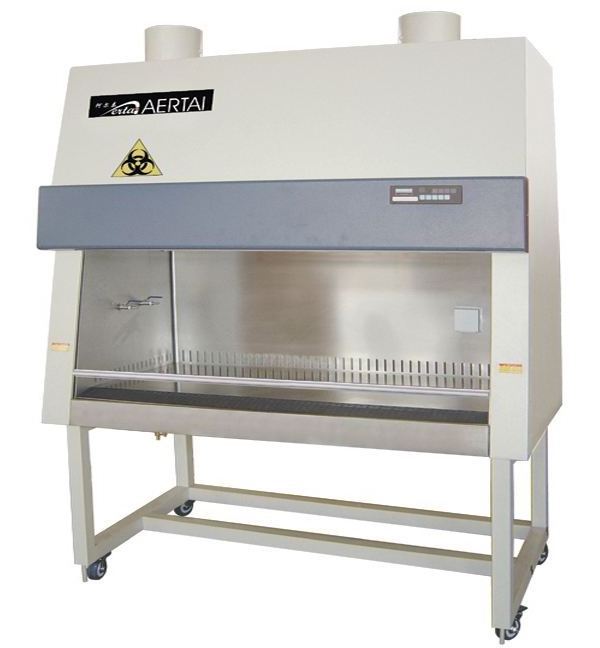

Biological Safety Cabinet
-
Function:
-
Work Station
-
Color:
-
White
-
Tested Opening:
-
Safety Height 200mm (8'')
-
Max Opening:
-
370mm(15")
-
Down Flow Velocity:
-
0.33±0.025m/s
-
HEPA Filter:
-
Tow 99.999% Efficiency
-
Noise:
-
58dB / 61dB
-
LED Lamp:
-
8W*2
-
Power Supply:
-
AC220V/110V 10%
Quick Details
-
Application:
-
Hospital, Workshop, Lab
-
Design Style:
-
Modern
-
Material:
-
Metal
-
Place of Origin:
-
China
-
Brand Name:
-
Cartmay
-
Model Number:
-
SWAQG-01
-
Product name:
-
Biological Safety Cabinet
-
Function:
-
Work Station
-
Color:
-
White
-
Tested Opening:
-
Safety Height 200mm (8'')
-
Max Opening:
-
370mm(15")
-
Down Flow Velocity:
-
0.33±0.025m/s
-
HEPA Filter:
-
Tow 99.999% Efficiency
-
Noise:
-
58dB / 61dB
-
LED Lamp:
-
8W*2
-
Power Supply:
-
AC220V/110V 10%
|
External Size(W*D*H) |
1087*775*2265mm |
1873*775*2295mm |
|
|
Internal Size(W*D*H) |
910*600*660mm |
1700*600*660 mm |
|
|
Work Surface Height |
750mm |
||
|
Max Opening |
520mm (21'') |
550mm (22'') |
|
|
Tested Opening |
Safety height 200mm (8'') |
Safety height 200mm (8'') |
|
|
Airflow Volume |
Inflow |
348m3/h(205cfm) |
649m3/h(382cfm) |
|
Down flow |
65%:649m3/h(382cfm) |
60%:1212m3/h(713cfm) |
|
|
Exhaust |
35%:348m3/h(205cfm) |
40%:649m3/h(382cfm) |
|
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
||
|
HEPA Filter |
Two, 99.999% efficiency at 0.3um, filter life indicator |
||
|
Filter Guard Type |
Aluminum alloy frame |
||
|
Noise |
NSF 49≤61 dB/EN 12469≤58 dB |
||
|
Illumination |
≥1000Lux |
||
|
Display |
LCD Display |
||
|
Waterproof Socket |
2, Total consumption:≤500W |
||
|
Tap |
Water tap*1, Gas tap *1 |
||
|
Ground Resistance |
≤ 0.10Ω |
||
|
Power Supply |
AC220/110V±10%, 50/60Hz ±1Hz, Full load Amps: 9A, BTU/Hr: 1689 |
||
|
Consumption |
300W |
500W |
|
|
Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
||
|
DC Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
||
|
Material |
Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
||
|
UV Lamp |
18W |
40W |
|
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
|||
|
Illuminating Lamp |
10W*2 |
22W*2 |
|
|
LED lamp |
|||
|
Standard Accessory |
Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks |
||
|
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Adjustable base stand, Remote control, Electric height adjustable base stand |
||
|
Package Size (W*D*H) |
1220*1000*1840mm |
2020*1080*1900mm |
|
|
Gross Weight |
270kg |
363kg |
|
