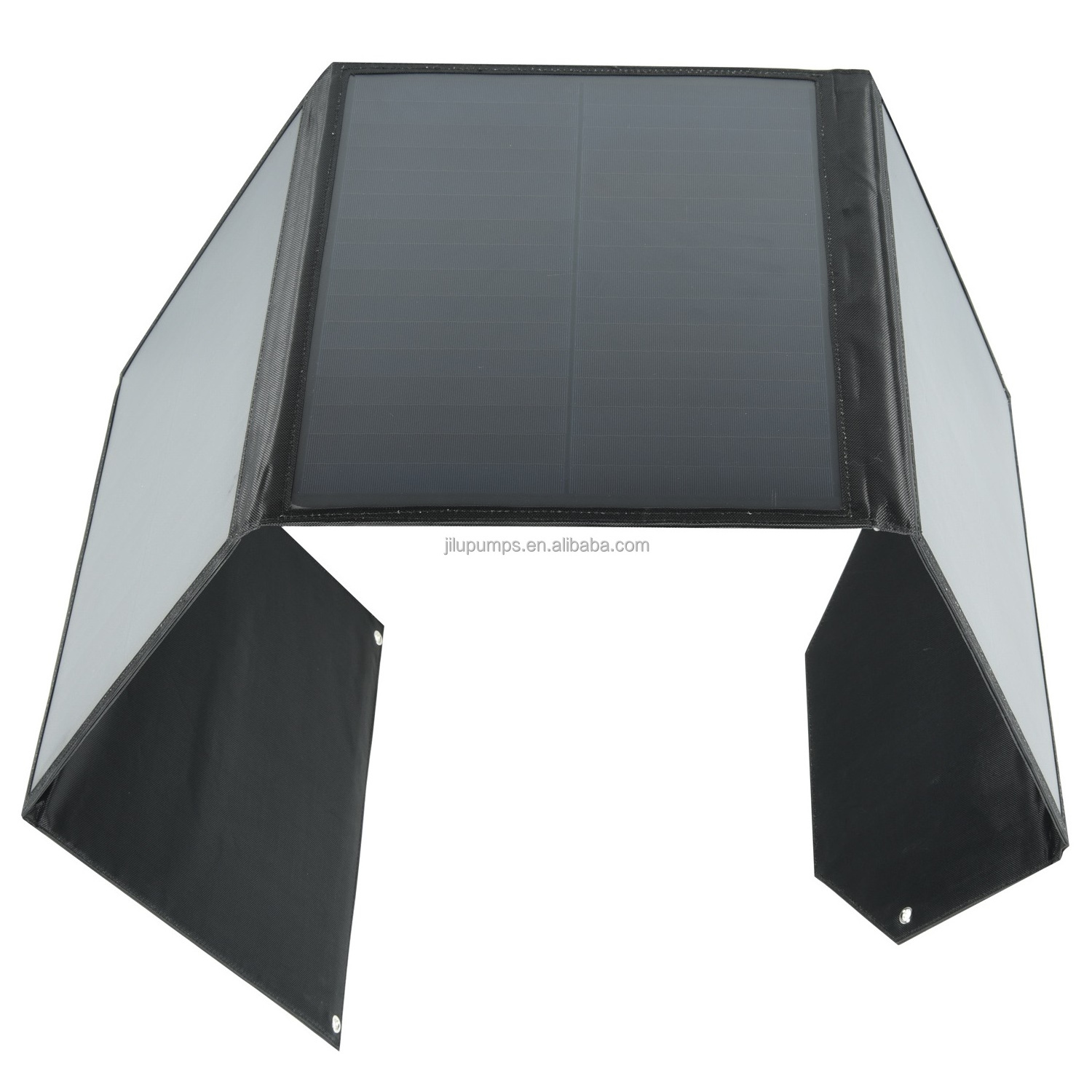

60W Foldable Solar Panel Suitcase Portable Bag for RV Outdoors Camping

60W Foldable Solar Panel Suitcase Portable Bag for RV Outdoors Camping

FOB Reference Price: Get Latest Price

≥1 Sets

US $55

≥100 Sets

US $49

≥500 Sets

US $46

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1years

Brand Name:: OEM

Model Number:: VSFM-01-M-01-60W

Place of Origin:: Zhejiang,China

Panel Dimensions:: 350*320*40mm

Pmax/W:: 60W

Surface:: PET/ETFE

Output:: MC4/Anderson/USB

Vmp/V:: 19v

Imp/A:: 3.53A

Quick Details

Cell size:: 182mmx182mm

Type:: PERC, Half Cell

Panel Efficiency:: 20.3%

Warranty:: 1years

Brand Name:: OEM

Model Number:: VSFM-01-M-01-60W

Place of Origin:: Zhejiang,China

Panel Dimensions:: 350*320*40mm

Pmax/W:: 60W

Surface:: PET/ETFE

Output:: MC4/Anderson/USB

Vmp/V:: 19v

Imp/A:: 3.53A

Customized 60W Folding Solar Blanket Panel All Black Easy Carry Portable Bag PET ETFE Coated High Output Power for Hiking Traveling Outdoor use

Product Description

Material Description:
First floor: PET/ETFE
Second layer: EVA Film
Third floor: High Efficiency Solar Cells
Fourth floor: EVA Film

Multiple Protection: Advanced PET/ETEF Layer with water resistance, corrosion-resistance, high tempperature treatment.

Humanized Design: Foldable design for portability, dual output interfaces.

Customized Solar Panel in different size, voltage, shape solar panel.

Accept ODM and OEM order.

Specification

OUTPUT POWER
(W)

WORKING VOLTAGE (VMP)

WORKING CURRENT
(IMP)

DIMENSIONS
(FOLDED)
(MM)

DIMENSIONS
(UNFOLDED)(MM)

OPEN-CIRCUIT VOLTAGE
(VOC)

SHORT-CIRCUIT CURRENT
(ISC)

WEIGHT

(KG)

60W

19V

3.53A

350*320*40

1430*350*3

21.24V

3.33A

2.6KG

80W

19.2V

4.33A

418*453*45

740*453*3

22.32V

3.90A

2.9KG

100W

19.6V

5.89A

550*420*45

1650*550*3

22.32V

5.56A

4.6KG

200W

19.8V

11.49A

590*550*38

2240*550*3

22.47V

10.86A

7.5KG

300W

19V

16.6A

700*540*50

3015*540*3

22.46V

15.7A

9.2KG

Output

MC4/Anderson/USB+Type-C/XT60

Accessories

1. PWM/MPPT controller *1;

2. 5 meters cable with Anderson or MC4 connector*1

3. 30cm cable of Alligator/MC4 connector*1

4. User mannal*1

Detailed photos

Application

Packing & Delivery

FAQ

Q1: Are you trading company or factory?
We are manufacturer with our own factory,with automatic production lines and professional testing equipment.

Q2: Where is your company and factory?
Our company and factory are located in Zhejiang,China.

Q3: Do you provide OEM or ODM services?
OEM &ODM are all acceptable.

Q4: What's your products warranty?
All of our products have 1 year warranty.

Q5: Why solar panel cannot work quickly when connect to the device? How to use the solar panel rightly?
As you know, solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground.The intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try to test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.

Q6: Is the solar panel waterproof?
The solar panel is not waterproof. To Maximize the lifespan of the module, please don't make it get wet.

Q7: How to clean the solar panel surface?
We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface.Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
