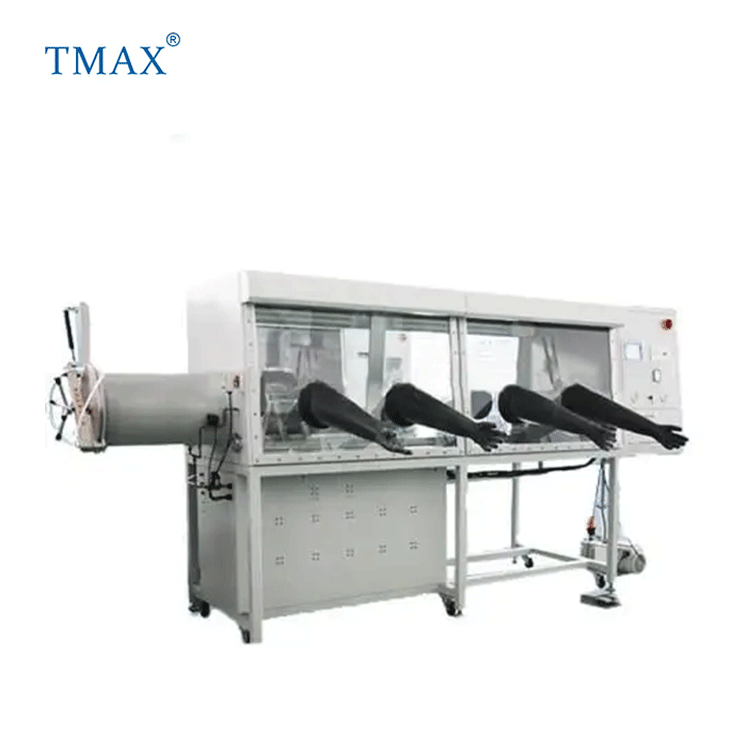

Laboratory Stainless Steel Big Vacuum Multi Station Glove Box Price with Automatic Pressure Control and Purging Valves

Laboratory Stainless Steel Big Vacuum Multi Station Glove Box Price with Automatic Pressure Control and Purging Valves

FOB Reference Price: Get Latest Price

≥1 Sets

US $18800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Work Positions:: 2-8

Rotate Speed:: 50-410 rpm or 40-365 rpm

Structure:: Rubber roller

Quick Details

Warranty:: 1 year

Brand Name:: TMAX

Model Number:: TMAX-GBP

Place of Origin:: Fujian, China

Work Positions:: 2-8

Rotate Speed:: 50-410 rpm or 40-365 rpm

Structure:: Rubber roller

Stainless Steel Big Vacuum Multi Station Glove Box Price with Automatic Pressure Control and Purging Valves

Features

Closed Loop Gas Circulation

Inert gas in a closed loop. The gas is circulated by the blower and purifier, H2O, O2 can be removed continuously.

Auto Purging

The replacement of the atmosphere inside the glove box can be achieved automatically by the purging valves.

Automatic Regeneration

H2O and O2 removal material can be regenerated. The regeneration process can be program controlled.

Automatic Pressure Control

The pressure in the glove box is controlled automatically by the Programmable Logic Controller (PLC). Working pressure can be set between +10mba and -10mba. If the pressure goes over+/- 12mbar, the system will be protected automatically.

Eco Mode

The vacuum pump will be activated automatically when necessary, and will turn off after a period of idle time. Blower frequency will be switched to 25Hz when moisture and oxygen level reaches to less than 1 ppm

Specifications of Standard Model of Purification Glove Box
No.	Model No.	Box Dimensions	Total Dimensions	Operating Sides	Numbers of Gloves	Options
1	GBP800S-2	1200800930mm	19158301830mm	Single	2	Single or double purification columns
2	GBP1000S-4	12001000930mm	191510601830mm	Single	4	Single or double purification columns
3	GBP1000D-4	12001000930mm	191510601830mm	Double	4	Single or double purification columns
4	GBP1200S-2	12001200930mm	191512601830mm	Single	2	Single or double purification columns
5	GBP1200D-4	12001200930mm	191512601830mm	Double	4	Single or double purification columns

6	GBP800S-3	1500800930mm	221510601830mm	Single	3	Single or double purification columns
7	GBP1000S-3	15001000930mm	221510601830mm	Single	3	Single or double purification columns
8	GBP1000D-6	15001000930mm	221510601830mm	Double	6	Single or double purification columns
9	GBP1200S-3	15001200930mm	221512601830mm	Single	3	Single or double purification columns
10	GBP1200D-6	15001200930mm	221512601830mm	Double	6	Single or double purification columns

11	GBP800S-4	1900800930mm	261510601830mm	Single	4	Single or double purification columns
12	GBP1000S-4	19001000930mm	261510601830mm	Single	4	Single or double purification columns
13	GBP1000D-8	19001000930mm	261510601830mm	Double	8	Single or double purification columns
14	GBP1200S-4	19001200930mm	261512601830mm	Single	4	Single or double purification columns
15	GBP1200D-8	19001200930mm	261512601830mm	Double	8	Single or double purification columns

Notes:
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2,Ar,He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements
