Quick Details
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
S3600-48G6XF-PoE+
-
Place of Origin:
-
Guangdong, China
-
Keywords:
-
OEM/ODM 48-Port POE+ network switch CCTV security solution for camera
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Enclosure Type /installtion:
-
Rack-mountable 1u
-
Max PoE Power Budget:
-
780W
-
Environmental:
-
Operating Temperature: 0~40℃
-
Dimension:
-
440(W) x 44(H) x 330(D)mm
-
Weight:
-
4.85kg
-
FAN:
-
Forced-Air Cooling
Quick Details
-
Transmission Rate:
-
48*1G +6*10G SFP+
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
216Gbps
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
S3600-48G6XF-PoE+
-
Place of Origin:
-
Guangdong, China
-
Keywords:
-
OEM/ODM 48-Port POE+ network switch CCTV security solution for camera
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Enclosure Type /installtion:
-
Rack-mountable 1u
-
Max PoE Power Budget:
-
780W
-
Environmental:
-
Operating Temperature: 0~40℃
-
Dimension:
-
440(W) x 44(H) x 330(D)mm
-
Weight:
-
4.85kg
-
FAN:
-
Forced-Air Cooling

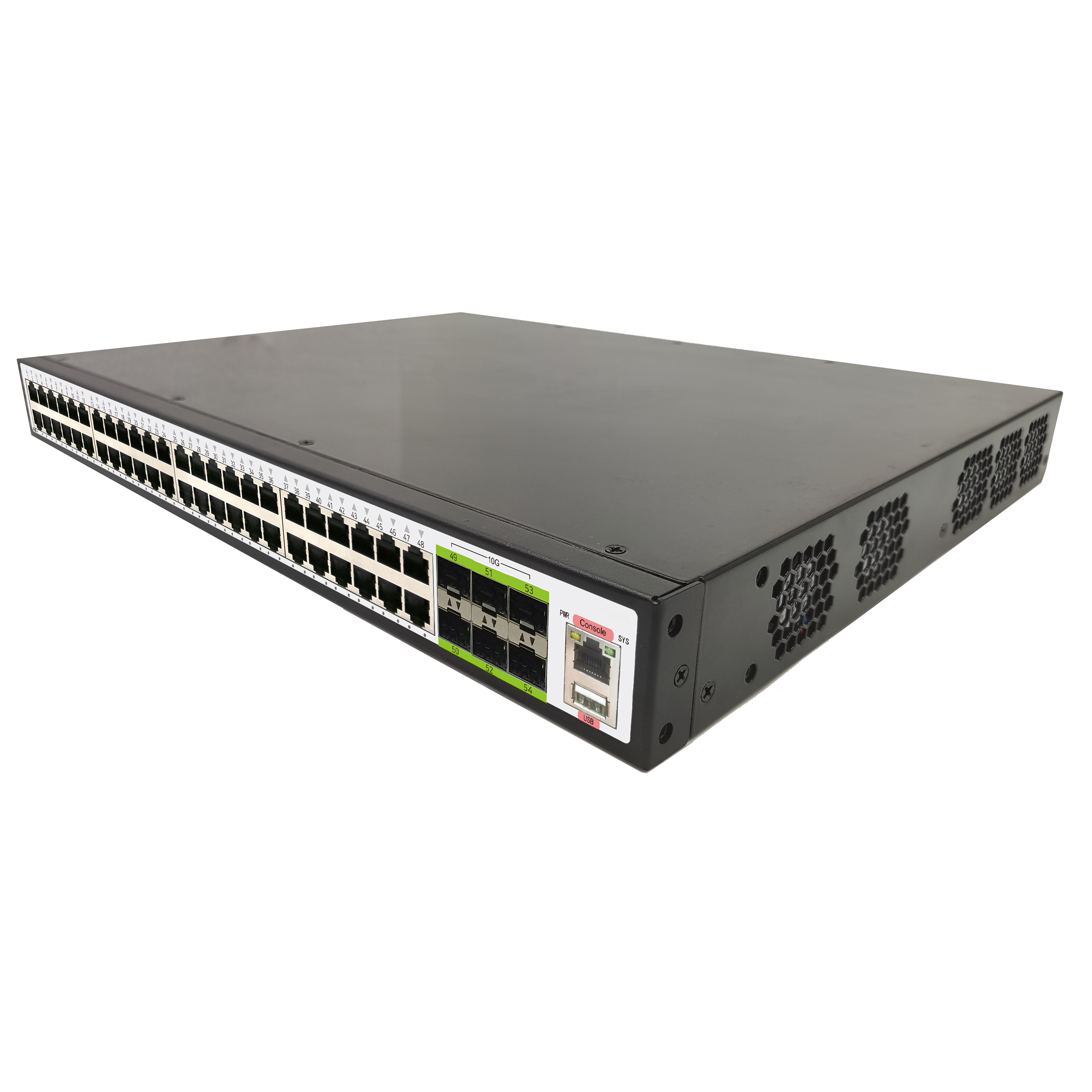

OEM/ODM 48-Port POE+ network switch CCTV security solution for IP camera
Product Description
Details Images
PDnet
S3600-48G6XF-PoE+
48*1G RJ45 Port+6*10G SFP+ Port PoE+ Network Switch
1-48 Ports 10/100/1000Mbps
PWR LINK/ACT Led:Green
Speed Led: 10M Orange/100M Orange
1000M Green
PoE Speed Led: Orange
49-52 Ports 10Gbps
Speed Led:
10G Green
Accessories of details:
One European Standard Power Cable
One Pack Screw Footpads
Two Machine Rack ears
Products Datasheet
|
Product
|
Specifications
|
|
Physical Specification
|
Description
|
|
Performance
|
Performance • Switching Capacity: 216Gbps • Throughput: 160.70Mpps • MAC Capacity: 32K
|
|
Hardware
|
Hardware • Flash Memory: 256MB • DRAM: 4GB
|
|
Interface
|
• 48-Port 10/100/1000Base-T • 6-Port 10G Base-R(SFP/SFP+)
• 1-Port Console(With RJ-45) • 1-Port USB
|
|
Power
|
• Input:AC 100~240VAC, 50/60Hz • Power Consumption: 75W
|
|
PoE
|
• Max PoE Power Budget: 780W • Support 48-Ports 10/100/1000 802.3af/at Base-T
• 15.4W simultaneously on 48 ports ,30W simultaneously on 24 ports
|
|
Environmental
|
• Operating Temperature: 0~40℃ • Operating Humidity: 20~85%RH (Non-Condensing)
• Storage Temperature: -20~70℃ • Storage Humidity: 5~95%RH (Non-Condensing)
|
|
Mechanical
|
• Dimension: 440(W) x 44(H) x 330(D)mm • Weight:4.85kg
|
|
Air Flow
|
• FAN : Forced-Air Cooling
|
|
|
|
|
Features
|
Description
|
|
System
|
• Management • Deviceview • Services
• DNS • PoE • SNMP
• LLDP • ISDP • Timer Schedule
|
|
Switching
|
• Ports Mgmt • LAG • VLANs
• AddressTables • STP • Multicast
• MVR • Auto-Voip • UDLD
• Loop Protect
|
|
VLAN
|
• 4K VLAN ID • Port VLAN • GARP Switch
• 802.1q Port based VLAN • Protocol VLANs • 802.1Q TUNNELING
• Voice VLAN
|
|
Link Aggregation
|
• IEEE 802.3ad with LACP – 12 aggregation group(1 aggregation group is up to 8 physical ports)
|
|
QoS
|
• 8 queue per port • Rate Limit (Ingress/Egress) • Diffserv
• Auto QoS • Cos
|
|
Security
|
• Mgmt Security • Acess • Denial of Service
• Port Authentication • Traffic Control • Control
• ACL
|
|
Monitoring
|
• Ports • Mirroring • sFlow
• Log
|
|
Maintenance
|
• Save Config • Reset • File Export
• Upgrade • File Management • Troubleshooting
|
