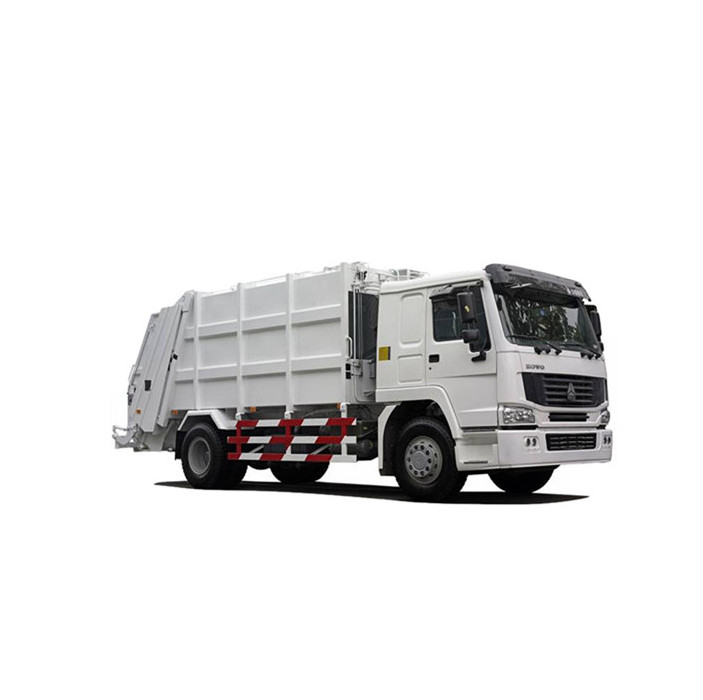

16m3 Inner City Garbage Transport Vehicle
Compressed garbage truck is produced by using Germany technology, and has outstanding technical advantage. The product has high system
pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic
degrees, quick loading speed, convenient, safe and reliable operation, and hasn’ t secondary pollution. The product is suitable for collection
and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed
garbage truck uses compartment and truck separation, is equipped with several compartments for one truck, and can be used as small garbage transfer station
1. Tech parameters
|
Model |
ZZ3257N3247C |
|
Driving type |
6*4 |
|
Kerb weight ( kg) |
12230 |
|
Engine |
WD615.69,336HP, Euro2 emission standard |
|
Displacement (L) |
9.726 |
|
Cab |
HW70 standard cabin,with airconditioner |
|
Transmission |
HW15710,SINOTRUK ten speed gear-box Option: 19710T with synchronizer (+550 USD) |
|
Steering |
ZF8098, German hydraulic steering with power assistance |
|
Number of axle |
3 |
|
Driving axle |
AC16 rated loading capacity:16T ratio:5.45 |
|
Axle-loading(kg) |
7000/18000(two axle paralleled) |
|
Front axle |
HF9,HOWO new off road used 9T front axle, with disc braking system |
|
Rear track(mm) |
1830 |
|
front/rear Overhang (mm) |
1500/1589 |
|
Wheel base (mm) |
3225+1350 |
|
Number of spring leaf |
10/12 |
|
Tires |
12.00-20 biasply tire with one spare tire |
|
Approach/departure angle(°) |
19/25 |
|
Maximum speed(km/h) |
75 |
|
Dustbin volume |
16m³ |
|
Overall sizes (mm) |
7545*2496*3170 |
2. Three questions you may ask, here are the answers from Rita(+15194169903)
Q1.How about your product quality?
A:All our spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.
Q2. How about your company's service, especially after-sale service?
A: SINOTRUK VEHICLES has been in this field for nearly 20 years and has strong production and distribution capability. We always offer our every customer with 6 months warranty , wholehearted, all-round and full-range services and do our best to solve all the problems and put our customer's interests in the first place.
Q3:Is there any advantages of your price?
A: SINOTRUK VEHICLES provides guarantees for reasonable price and good quality.
