Quick Details
-
Brand Name:
-
qwifm
-
Description:
-
proximity sensor switch
-
with cable:
-
2m
-
Power supply:
-
12-24VDC
-
Detection distance:
-
4mm
-
Mounting:
-
Non-flush
-
Working temperature:
-
-25~70℃
-
Usage:
-
Position Sensor
-
Theory:
-
Inductance Sensor
-
Output:
-
Analog SENSOR
-
Amplifier Type:
-
Analog Output
-
Application:
-
Industrial Automation
Quick Details
-

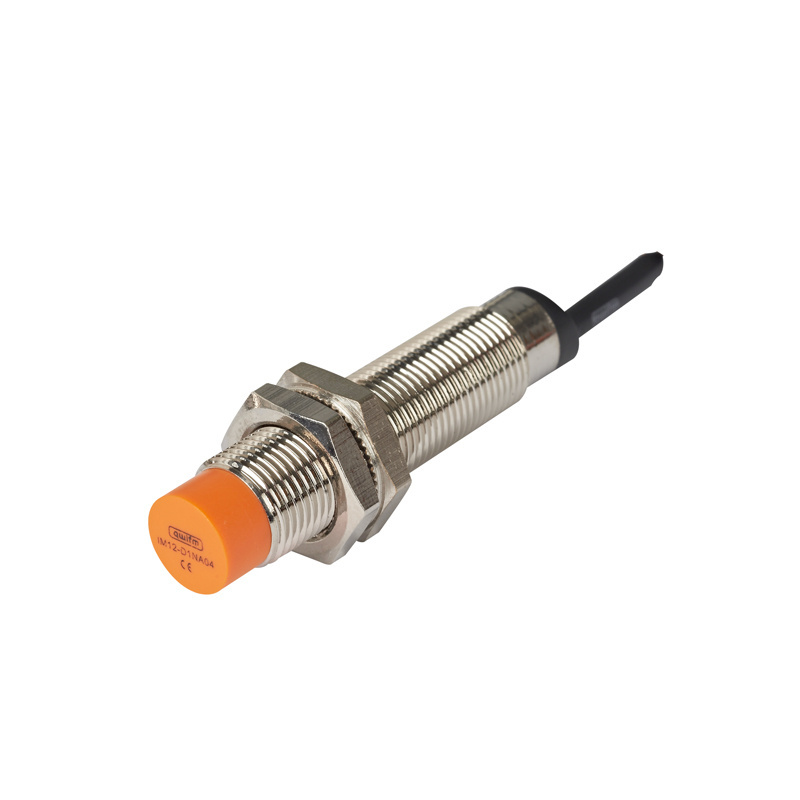

Model Number:
-
IM12-D1NA04
-
Type:
-
proximity sensor
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
qwifm
-
Description:
-
proximity sensor switch
-
with cable:
-
2m
-
Power supply:
-
12-24VDC
-
Detection distance:
-
4mm
-
Mounting:
-
Non-flush
-
Working temperature:
-
-25~70℃
-
Usage:
-
Position Sensor
-
Theory:
-
Inductance Sensor
-
Output:
-
Analog SENSOR
-
Amplifier Type:
-
Analog Output
-
Application:
-
Industrial Automation
QWIFM, as a manufacturer of industrial automation products with 22+ years' experience.
Technical Sheet
|
Product model
|
M8
|
M12
|
M18
|
M30
|
|||
|
Mounting type
|
Flush/Non-flush
|
Flush/Non-flush
|
Flush/Non-flush
|
Flush/Non-flush
|
|||
|
Sensing distance
|
2mm / 4mm
|
4mm / 8mm
|
8mm / 16mm
|
16mm / 25mm
|
|||
|
Control output
|
NPN, NO
PNP, NO
|
NPN, NO
PNP, NO
|
NPN, NO
PNP, NO
|
NPN, NO
PNP, NO
|
|||
|
Output current
|
≤150mA
|
|
≤200mA
|
|
|||
|
Output voltage
|
<1.5V
|
|
|
|
|||
|
Consumption current
|
<10mA
|
|
|
|
|||
|
Standard sensing object
|
8*8*1 ( A3 Iron)
|
12*12*1 ( A3 Iron)
|
18*18*1 ( A3 Iron)
|
30*30*1 ( A3 Iron)
|
|||
|
Repeated precision
|
0.01
|
0.01
|
0.01
|
0.05
|
|||
|
Response frequency
|
Flush: 800Hz
Non-flush: 600Hz
|
Flush: 600Hz
Non-flush: 500Hz
|
Flush: 500Hz
Non-flush: 150Hz
|
Flush: 150Hz
Non-flush: 100Hz
|
|||
|
Working Ambient Temp.
|
-25℃~+70℃
|
|
|
|
|||
|
Insulation resistance
|
≥50MΩ
|
|
|
|
|||
|
Housing Material
|
Metal
|
|
|
|
|||
|
Protection Grade
|
IP68
|
|
|
|
|||
|
Current short-circuit protection
|
220mA( Excluding AC Output Product
|
|
|
|
|||
-With Short-circuit protection, Polarity protection, and Over-current protection.
-Super waterproof, normal used under water 2m.
-Long sensing range, twice times than normal standard product.
-Quality material, Rust-proof and Vibration-proof.
Imported magnetic core, high stability, accurate distance measurement.
Oil-resistant and corrosion-resistant cables can be customized.
Oil-resistant and corrosion-resistant cables can be customized.
-IP68 Standard protection grade, can be customized to IP69.
-Anti-magnetic and electrical interference
We have a strict quality control system and have won high praise from different customers.
-Fast response, good communication, excellent quality, fast delivery...
Our products are exported to Europe, America, Africa, Middle East, Southeast Asia and other countries and regions.
We hope to establish a good cooperative relationship and sincerely recruit agents to achieve a win-win situation.
We hope to establish a good cooperative relationship and sincerely recruit agents to achieve a win-win situation.
1、Are you trading company or manufacturer?
We are manufacturer，specialize in producing proximity sensor, photoelectric sensor,switching power supply, SSR, and rotary encoder for 22 years.
2、What's the minimum order quantity?
1 piece, and we can offer free sample for testing.
3、What's your price?
We have economic and high-end products, can meet different customers' requirements.Meanwhile, we can offer much better price in large quantity.
4、When will you ship my order?
1 day shipping guarantee for stock item and 2-3 weeks for non-stock items.
5、What's your shipping terms?
We can provide courier(DHL, FEDEX,UPS,TNT, etc...)service, air freight, sea freight(-FOB,C&F, CIF,DDP,DDU etc...) service.
6、How can you guarantee the product quality?
We ensure all products 100% tested before departure.Our products have passed CE,ISO9001:2000, ccC, and CB certification.
7、Do youaccept OEM?
Yes.We can special customized waterproof lP68/IP69 sensor, and offer cable length per to customers" request.
8、How can I make an order?
Send inquiry→Tell us your requirements→Our sales will contact you within 2 hours.
2、What's the minimum order quantity?
1 piece, and we can offer free sample for testing.
3、What's your price?
We have economic and high-end products, can meet different customers' requirements.Meanwhile, we can offer much better price in large quantity.
4、When will you ship my order?
1 day shipping guarantee for stock item and 2-3 weeks for non-stock items.
5、What's your shipping terms?
We can provide courier(DHL, FEDEX,UPS,TNT, etc...)service, air freight, sea freight(-FOB,C&F, CIF,DDP,DDU etc...) service.
6、How can you guarantee the product quality?
We ensure all products 100% tested before departure.Our products have passed CE,ISO9001:2000, ccC, and CB certification.
7、Do youaccept OEM?
Yes.We can special customized waterproof lP68/IP69 sensor, and offer cable length per to customers" request.
8、How can I make an order?
Send inquiry→Tell us your requirements→Our sales will contact you within 2 hours.
