Quick Details
-
Power:
-
36.4kW/2600rpm
-
Min. Lifting Height:
-
18m
-
Table Size:
-
3.98m*1.83m
-
Overall Dimensions:
-
4.88*2.27*3.19m
-
Weight:
-
680kg & 680kg
-
Max. Platform Height:
-
16.00m
-
Overall Length:
-
4.88m/3.98m
-
Overall Width:
-
2.27m
-
Overall Height(Rails up):
-
3.19m
-
Overall Height(Rails down):
-
2.49m
-
Platform Extension Size:
-
3.98m*1.83m
-
Ground Clearance:
-
2.59m
-
Wheel Base:
-
2.86m
-
Certification:
-
ISO CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ORIEMAC
-
Power:
-
36.4kW/2600rpm
-
Min. Lifting Height:
-
18m
-
Table Size:
-
3.98m*1.83m
-
Overall Dimensions:
-
4.88*2.27*3.19m
-
Weight:
-
680kg & 680kg
-
Max. Platform Height:
-
16.00m
-
Overall Length:
-
4.88m/3.98m
-
Overall Width:
-
2.27m
-
Overall Height(Rails up):
-
3.19m
-
Overall Height(Rails down):
-
2.49m
-
Platform Extension Size:
-
3.98m*1.83m
-
Ground Clearance:
-
2.59m
-
Wheel Base:
-
2.86m
-
Certification:
-
ISO CE

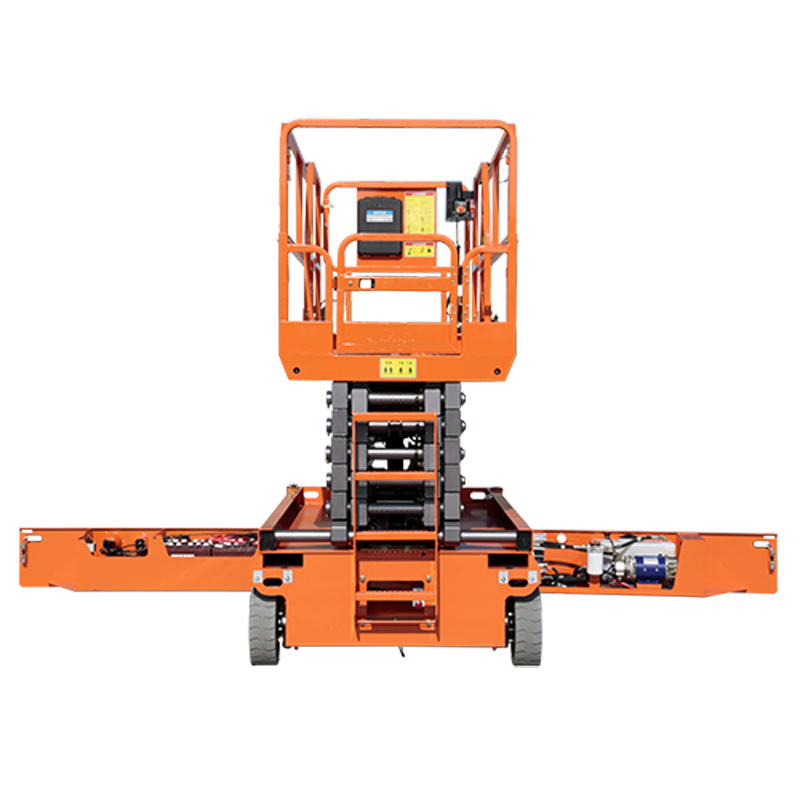

Scissor Lift Table 18m Mobile Skylift Manual JCPT1823RT
Main spec.
Overall Width
:
2.27m & 2.27m
Platform load
:
680kg & 680kg
Working height
:
18.00m & 15.00m
Important features
Large working platform, higher operating efficiency
Four wheel drive, climbing ability of the maximum up to 50%,More mobile
Self-leveling hydraulic outriggers
Slide-out engine tray
| Model | JCPT1823RT | JCPT1523RT |
| Max. Working Height A | 18.00m | 15.00m |
| Max. Platform Floor Height B | 16.00m | 13.00m |
| Overall Length(with/without outriggers) C | 4.88m/3.98m | 4.88m/3.98m |
| Overall Width D | 2.27m | 2.27m |
| Overall Height(rails up) | 3.19m | 2.98m |
| Overall Height(rails down) E | 2.49m | 2.28m |
| Platform Size(length/with F ) | 3.98m×1.83m | 3.98m×1.83m |
| Platform Extension Size G | 6.57m×1.83m | 6.57m×1.83m |
| Ground Clearance | 0.22m | 0.22m |
| Wheel Base H | 2.86m | 2.86m |
| S.W.L | 680kg | 680kg |
| S.W.L On Extension | 227kg | 227kg |
| Maximum Workers Number | 6 | 7 |
| Turning Radius(Inside/Outside) | 2.35m/5.20m | 2.35m/5.20 |
| Travel Speed(Stowed) | 6.1km/h | 6.1km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Up/Down Speed | 123/74sec | 70/52sec |
| Gradeability | 40% | 50% |
| Maximum Working Slope | 2°/3° | 2°/3° |
| Tyre | 33×12-20 | 33×12-20 |
| Engine(Per-kins 404D22) | 38kW/3000rpm | 38kW/3000rpm |
| Engine(Ku-bota V2403-M-DI) | 36.5kW/2600rpm | 36.5kW/2600rpm |
| Hydraulic Tank | 130L | 130L |
| Diesel Tank | 100L | 100L |
