factory price Nitinol Fishing Super Elastic Nickel Titanium Wire NiTi Alloy Wire ASTM F2063 Nitinol Titanium Wire

factory price Nitinol Fishing Super Elastic Nickel Titanium Wire NiTi Alloy Wire ASTM F2063 Nitinol Titanium Wire

FOB Reference Price: Get Latest Price

≥5 Meters

US $3

≥50 Meters

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: nitinol

Grade:: titanium

Ti (Min):: 45

Strength:: 25-50%

Product name:: titanium wire

Standard:: ASTM F2063

Size:: Cusomized

Quick Details

Application:: medical, industry, lab, glass

Place of Origin:: Shaanxi, China

Brand Name:: xyt

Model Number:: nitinol

Grade:: titanium

Ti (Min):: 45

Strength:: 25-50%

Product name:: titanium wire

Standard:: ASTM F2063

Size:: Cusomized

Video Description

Product show

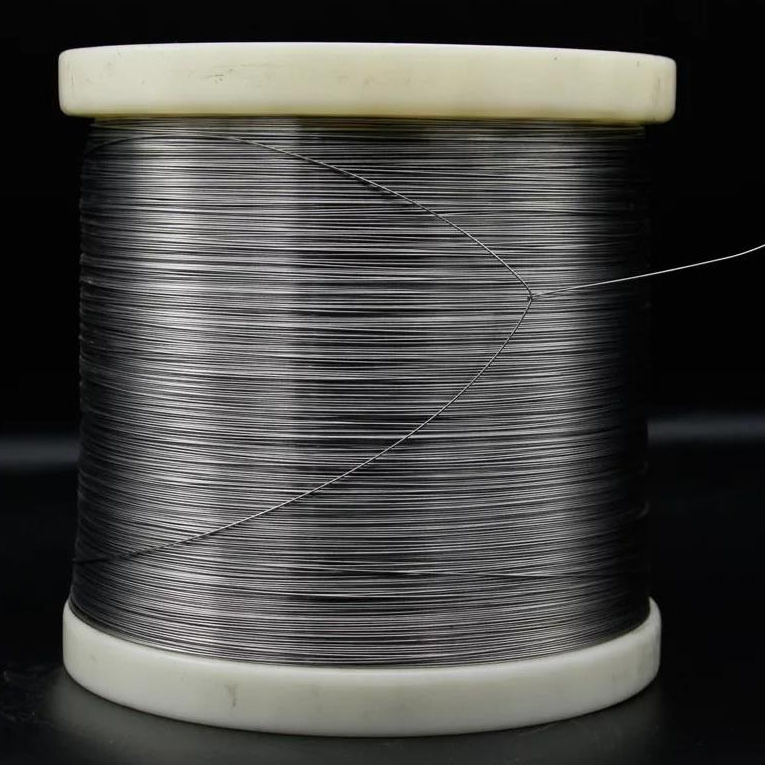

titanium wire

Pure titanium is a silver white metal with many excellent properties. The density of titanium is 4.54g/cm3 , which is 43% lighter than steel and slightly heavier than the well-known light metal magnesium. The mechanical strength is similar to that of steel, two times larger than aluminum and five times larger than magnesium. Titanium is heat-resistant, with a melting point of 1942 K, nearly 1000 K higher than gold and nearly 500 K higher than steel.

Specification of titanium wire Size of titanium wire

A. Specification of titanium wire: φ 0.8- φ 6.0 mm

B.specification of titanium wire for glasses: φ 1.0- φ 6.0 mm dedicated titanium wire

C. Specification of titanium wire: φ 0.2- φ 8.0 mm Hanger Special

Product name：	Titanium wire
Material：	pure Titanium/Titanium alloy
Grade:	Gr2, Gr3,Gr4,Gr5 etc.
Standard:	AWS A5.16/ASTM B863/ASME SB863, ASTMF67, ASTM F136, ISO-5832-2(3) etc
Technique:	cold rolled
Diameter:	0.2-8mm(customized)
Certification:	CE, ISO, SGS, BV
Application:	Welding, Industry, Medical, Aerospace, Electronic etc.
Supply Ability:	50000 tons per month
Price Terms:	CIF CFR FOB EX-W
Payment Terms:	30% deposite and 70% balance before shipment T/T L/C
Packing:	Industrial packaging,single box packaging and standard carton or according to customers demand for steel(Standard export）sea-worthy packing or customized;

If the above specifications cannot meet your needs, please contact us to customize for you

0.1 mm titanium wire dimension tolerance
Diameter	0.1-0.3mm	0.3-0.8mm	0.8-2.0mm	2.0-6.0mm
Tolerance	±0.025	±0.04	±0.05	±0.10
Length	200-500mm	500-1000mm	1000-2000mm	2000mm
Tolerance	±1.0	±1.5	±2.0	±2.5

0.1 mm titanium wire chemical requirements
Element	Composition %
Element	Element	Grade 1	Grade 2	Grade 3	Grade 4	Grade 5	Grade 6	Grade 7	Grade 9	Grade 11
N max	0.03	0.03	0.05	0.05	0.05	0.03	0.03	0.03	0.03
C max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
H max	0.05	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
Fe max	0.2	0.3	0.3	0.5	0.4	0.3	0.5	0.25	0.2
O max	0.18	0.25	0.35	0.4	0.2	0.2	0.25	0.15	0.18
Al					5.5-6.75	4.0-4.6		2.5-3.5
V					3.5-4.5			2.0-.3.0
