* Color Temperature: 5000~5500K (Pure White)
* embedded mount into ceiling
* Luminous Flux is controlled maximum 298.5 lm each
* 4 LED lights in 1 system
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIPL
-
Model Number:
-
SN2021008
-
Lamp Luminous Flux(lm):
-
max 2925 lm/pc
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Input Voltage(V):
-
18~24V DC
-
Work Time:
-
day lighting only, powered by natural sunlight shining
-
Certification:
-
no need, as low voltage low current safe solar DC product
-
Solar Panel:
-
60W/24V mono cells (575x495x25mm), angle is adjustable
-
Battery:
-
not included, but can add as optional accessory
-
LED Panels:
-
2pcs, dia.300mm round shape, embedded mount into ceiling
-
LED Driver:
-
no, LED panels will light-up automatically upon sun shining
-
Wire Connection:
-
12m*1+8m*2=20m cables to connect solar panel and LED panels
-
Remote Controller:
-
not included, but can add as optional accessory
-
Dimmer:
-
not included, but can add together with remote controller
Quick Details
-
Application:
-
Residential, Garden, ROAD, Hotel, Office, Warehouse, LANDSCAPE, Sports Stadiums, Theme Park, Other
-
Color Temperature(CCT):
-
5000K (Daylight)
-
IP Rating:
-
IP65
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIPL
-
Model Number:
-
SN2021008
-
Lamp Luminous Flux(lm):
-
max 2925 lm/pc
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Input Voltage(V):
-
18~24V DC
-
Work Time:
-
day lighting only, powered by natural sunlight shining
-
Certification:
-
no need, as low voltage low current safe solar DC product
-
Solar Panel:
-
60W/24V mono cells (575x495x25mm), angle is adjustable
-
Battery:
-
not included, but can add as optional accessory
-
LED Panels:
-
2pcs, dia.300mm round shape, embedded mount into ceiling
-
LED Driver:
-
no, LED panels will light-up automatically upon sun shining
-
Wire Connection:
-
12m*1+8m*2=20m cables to connect solar panel and LED panels
-
Remote Controller:
-
not included, but can add as optional accessory
-
Dimmer:
-
not included, but can add together with remote controller
Product Description
It looks like a common installation for 4pcs of 120mm round shape LED panel light to facilitate indoor lighting, but our system here is special, and it contains
Solar Panel, inbuilt Battery & Smart System Controller
to be the most
smart, practical & energy saving natural lighting
system, to
breakthrough any conventional grid-consumed lighting kit as well as any off-grid window skylight /
tubular
skylight / LED skylight
, and absolutely be a best alternative unit to bring you more satisfactions!

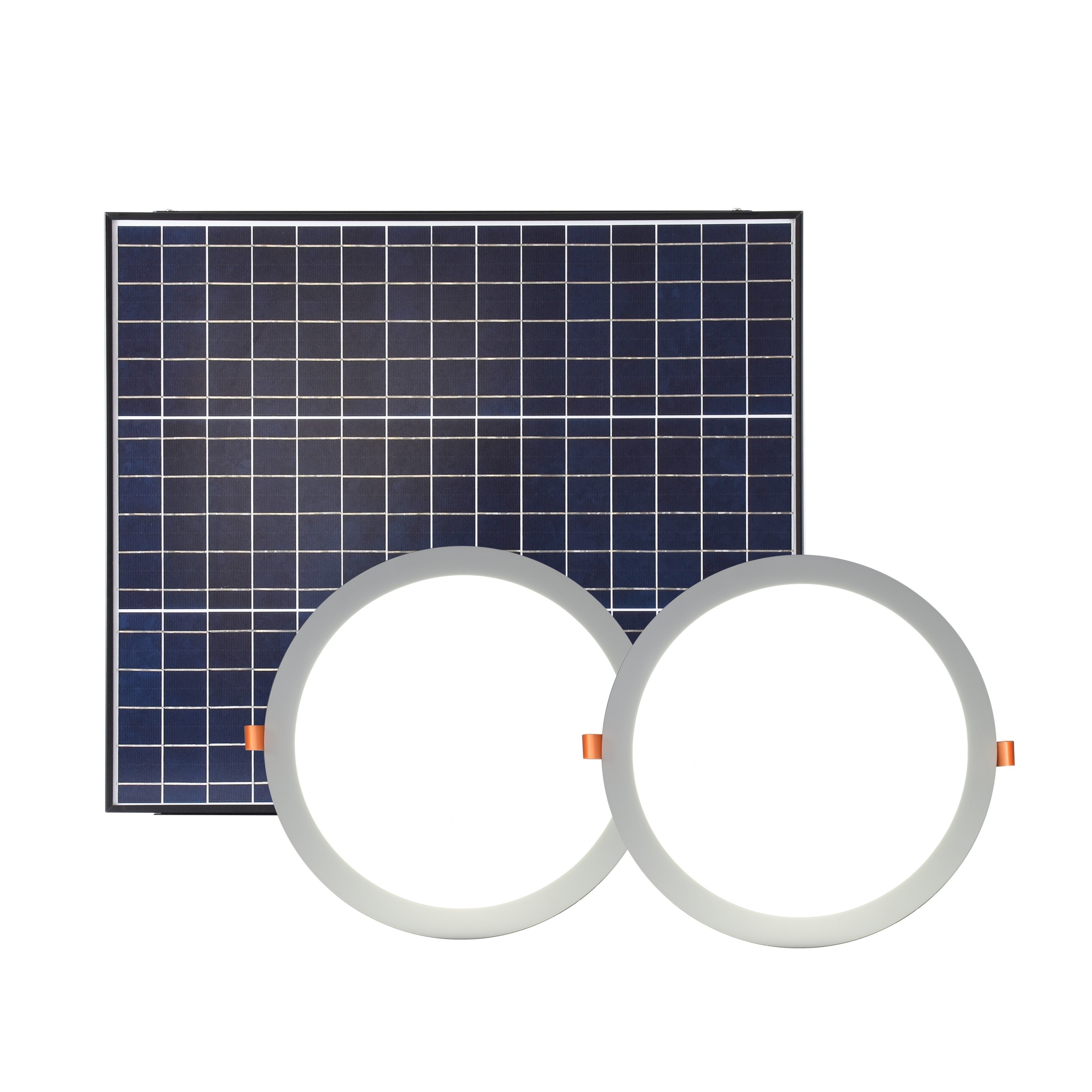

PRODUCT PART DISPLAY:
Lighting Fixture: LED Panel Light
* dia.120x12mm, carries 3m cable
* Color Temperature: 5000~5500K (Pure White)
* embedded mount into ceiling
* Color Temperature: 5000~5500K (Pure White)
* embedded mount into ceiling
Power Source: Solar Panel Battery Kit
* 20W/24V poly solar panel, 365x410x62mm
*
to charge battery in day time
* 6.4Ah 19.2V battery is assembled at the back side of solar panel
- battery can be charged full in about 7.8 strong sun hours
- battery can support about 10.6 continuous hours
* PV angle is adjustable, includes a full set of mounting kit, carries 10m cable
System Controller: Radar Sensor Kit
* a small white box to joint up all electric circuits
* includes radar induction function:
- LED panels be "ON/OFF" smartly
* ON only when human is in an activity
* OFF when people have left the house or are sleeping static for more than 10 mins
Warm Tips to the System Controller (Radar Sensor Controller):
Metal will affect the function of Radar Sensor, so this white box must be positioned correctly
* if plaster board ceiling installation
- radar sensor box can not be put on top of the LED panel
- it is better to put the controller box away from any metal piece
* if metal ceiling board installation
- radar sensor box is suggested to put outside underneth the ceiling board
- you need to drill a small hole for the wires to penetrate the ceiling board
- it is better to put the controller box away from any metal piece
* if metal ceiling board installation
- radar sensor box is suggested to put outside underneth the ceiling board
- you need to drill a small hole for the wires to penetrate the ceiling board
SYSTEM PERFORMANCE DISPLAY:
Such a smart solar lighting system will be benefitial to install anywhere, and it will be essentially interesting when you or your families go to the kitchen / toliet at deep night, cause you don't need to find out the light switch nor waste electricity should you have forgotten to turn the light off!
OPTIONAL REMOTE CONTROLLER:
Our solar LED skylights are designed to perfrom automatically without user control. But the fact being that manual-control is sometimes wanted, so we now also provide Remote Controller for your choices:
* to control solar LED light off/on flexibly
* to dim/brighten solar LED light flexibly
(of 10 levels dimming function)
Smartly interestingly, our designed remote control will maintain for 12 hours only :
* to control solar LED light off/on flexibly
* to dim/brighten solar LED light flexibly
(of 10 levels dimming function)
Smartly interestingly, our designed remote control will maintain for 12 hours only :
* LED panel will resume default working automatically after 12 hours from the remote setting time
This is beneficial in case you've forgotten to turn the light on, or in case the remote controller was missing...
This is beneficial in case you've forgotten to turn the light on, or in case the remote controller was missing...
PRACTICAL FUNCTION EXTENSIONS:
* a series of operation options:
1.
solar panel + battery + LED light
: light on/off automatically depending on whether human is there or not
2. solar panel + LED light + battery : light-on every seconds of day time & light on/off automatically at night
3. solar panel + LED light + AC/DC power adapter : light-on every seconds of day time & light on/off automatically at night
* different solar light system is for different application purpose , you can choose according to necessities :
SN2017033
: day-lighting nonstop, night-lighting on/off smartly while at 0 energy cost
SN2017031
: day-lighting nonstop, night-lighting on/off smartly at only few energy cost
BROAD APPLICATIONS:
suitable for any place even any corner lighting
MANY OTHER SIZE OPTIONS:
FLEXIBLE COMBINATIONS:
1 PV for Several LED
Own to their easy installation benefits, we can tailor-make any solar lighting system by using 1 solar panel to power several LED panels together, while the mixed LED panel sizes can be different!
Own to their easy installation benefits, we can tailor-make any solar lighting system by using 1 solar panel to power several LED panels together, while the mixed LED panel sizes can be different!
1 PV for Both LED & Fans
We can even use 1 solar panel to power different skylights & fans together!
Just any demand that you would have for the house, SIPL can realize it smartly perfectly!
We can even use 1 solar panel to power different skylights & fans together!
Just any demand that you would have for the house, SIPL can realize it smartly perfectly!
Quality & Warranty
|
LED Panel
|
designed lifespan > 10 years
|
warranty: 5 years
|
|
Solar Panel
|
designed lifespan > 25 years
|
warranty: 15 years
|
|
Battery
|
designed lifespan > 8 years
|
warranty: 2 years
|
|
System Controller
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
other electronic components
|
designed lifespan > 10 years
|
warranty: 5 years
|
|
if Remote Controller
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if AC/DC Power Adapter
|
designed lifespan > 10 years
|
warranty: 5 years
|
* the above warranty terms are based on the products be used indoor and in normal environments, no corrosive substance surrounded
