Quick Details
-
Brand Name:
-
NineGood
-
Model Number:
-
111
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
800PSI
-
Installation:
-
easy
-
Quality:
-
Superior
-
Package:
-
one year
-
Warranty:
-
one year
-
Service:
-
sincere
-
Pressure value:
-
preset
-
Protection class:
-
IP54 or IP00
-
Fitting:
-
male thread
-
Switch type:
-
SPST NO or NC
-
Work life:
-
100,000cycles
-
Certification:
-
CE,CQC,RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NineGood
-
Model Number:
-
111
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
800PSI
-
Installation:
-
easy
-
Quality:
-
Superior
-
Package:
-
one year
-
Warranty:
-
one year
-
Service:
-
sincere
-
Pressure value:
-
preset
-
Protection class:
-
IP54 or IP00
-
Fitting:
-
male thread
-
Switch type:
-
SPST NO or NC
-
Work life:
-
100,000cycles
-
Certification:
-
CE,CQC,RoHS
refrigeration compressor pressure control switch
Advantages:
1.professional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: G1/8"-28BSP T hread (Male ).
3, Electrical connection: 6.35X0.8 Male terminals (Brass & Silver plating).
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A .
5, Fluid media: Air,Water, Oil ,Vacuum,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 (No PVC jacket ); IP54 ( Equipped with PVC jacket ).
8, Ambient temperature : -20°C ~55 °C , Medium temperature : 0°C ~8 0°C.
9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

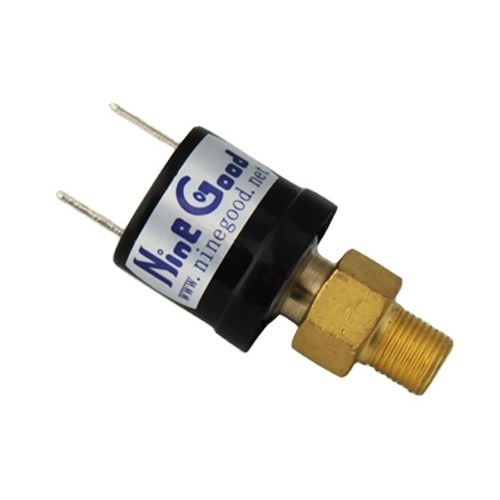

Production Photo:
Dimension Drawing:
