This PE foam fruit net extrusion machine can produce PE foam net, which is a new soft packing material. Due to its unique
expanding reticulation structure and the elastic foamed net film, it is widely used in the package of glass product, precision instrument, and various fruits.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Turui
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
5*1.2*3
-
Power (kW):
-
5.5
-
Weight:
-
3000 KG
-
Name:
-
Fruit Net Making Machine
-
Raw material:
-
PP PE
-
After-sales Service Provided:
-
Online Video Technical Support
-
Automatic Grade:
-
Automatic
-
Usage:
-
Net
-
Final product:
-
foam net, foam mattress, etc
-
Keywords:
-
high quality
-
Capacity:
-
40kg/h
-
Color:
-
Customers' Require
-
Screw type:
-
Single-screw Screw
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
55:1
-
Screw Speed (rpm):
-
120 rpm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Turui
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
5*1.2*3
-
Power (kW):
-
5.5
-
Weight:
-
3000 KG
-
Name:
-
Fruit Net Making Machine
-
Raw material:
-
PP PE
-
After-sales Service Provided:
-
Online Video Technical Support
-
Automatic Grade:
-
Automatic
-
Usage:
-
Net
-
Final product:
-
foam net, foam mattress, etc
-
Keywords:
-
high quality
-
Capacity:
-
40kg/h
-
Color:
-
Customers' Require
-
Screw type:
-
Single-screw Screw
Product Description

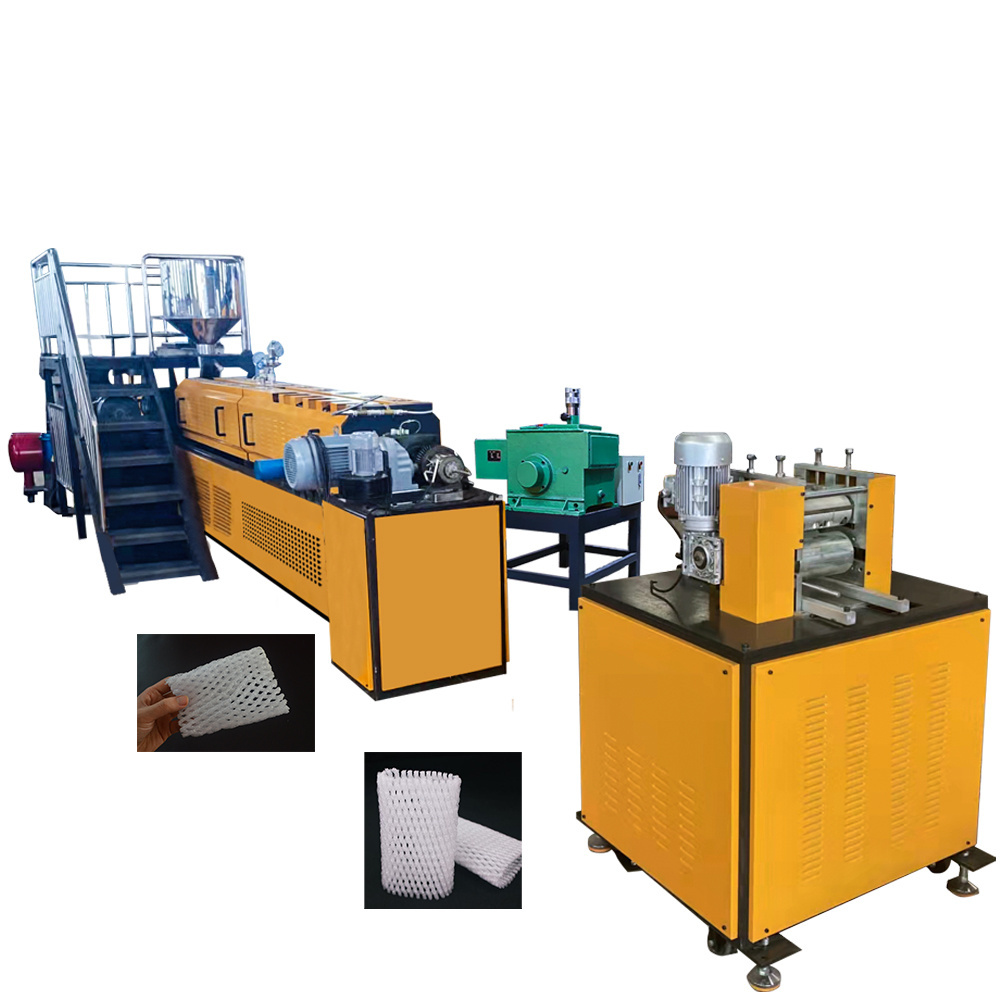

Foam Fruit Net Packing Machine
EPE Foam Net Extrusion Line can produce foam net, pipe, rob,edge, profile by changing mold head, EPE foam net is a new kind of soft packing material. It is widely used for the package of glass products, precision instrument and various kinds of fruits. Due to its unique expanding reticulation structure and the elasticity, it is widely used in the package of glass product, precision instrument, and various fruits.
foam fruit net packing machine
Screen changer and die head unit
Screen changer unit
Do not stop to change the network
Do not stop to change the network
Heating power: 3 KW
Heating zone: 1 pc
Die head unit
Type: Circular die head
Type: Circular die head
Quantity of die head: 1 set
Material:carbon and alloy steel
Heating zone: one
Heating method: Heating circular
Die motor: 3 KW
Haul-off and cutting unit
Length controlled: controlled by haul-off Material of the knife: carbon and alloy steel Driven type: motor drives gear box,
controlled by inverter. Motor power: 0.75kw*2 (speed regulation) Count control: meter controller can be preset alarming
controlled by inverter. Motor power: 0.75kw*2 (speed regulation) Count control: meter controller can be preset alarming
Extruding unit
Screw tube
Diameter: ∮140mm
Material: 38CrMoAlA nitrogen treatment Heating area: 7pcs
Method of heating：cast aluminum heater Method of cooling: outer water cooling
Screw
Screw
Diameter:
∮75（L/D-55：1）
Material: 38CrMoAlA nitrogen treatment Compression ratio: 3：1
Rotating speed: 0-48r/min
Specification
|
Model
|
HD-70
|
HD-75
|
|
Extruder
|
70/55
|
75/55
|
|
L/D
|
55:1
|
55:1
|
|
Capacity (kg/h)
|
25-30
|
45-50
|
|
Foaming rate
|
10-40
|
10-40
|
|
Installed capacity (kw)
|
28
|
32
|
|
Overall size (mm)
|
5500*1200*1700
|
8000*1300*1700
|
|
Weight (T)
|
3.5
|
4
|
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
