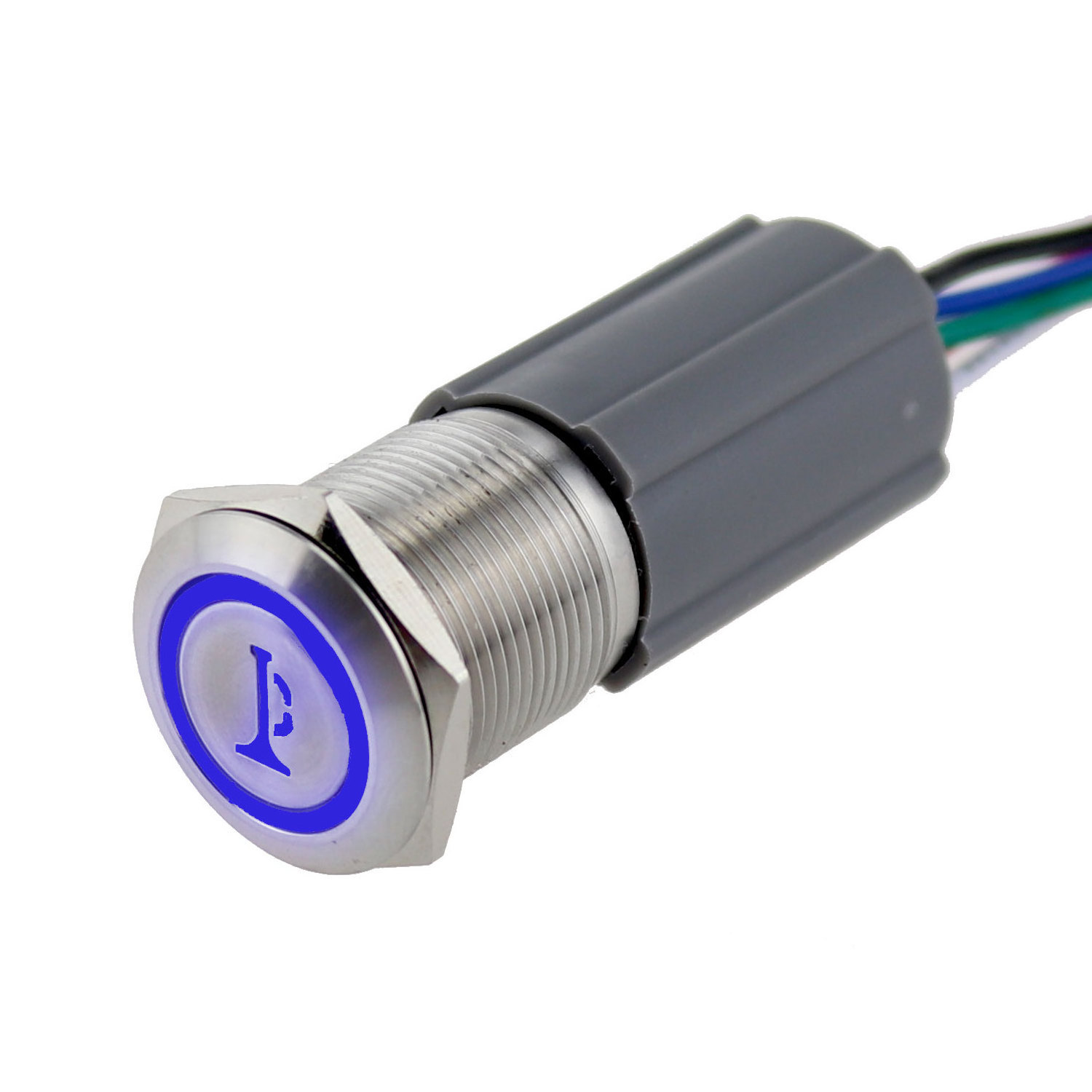

PRODUCT FEATURES
|
|
|
|
Install Diameter
|
19mm
|
|
|
Operation Type
|
Momentary or Latching
|
|
|
Switch Combination
|
1NO+1NC / 2NO 2NC
|
|
|
Head Shape
|
Flat Round Head
|
|
|
Terminal Type
|
5 PIN TERNINAL
|
|
|
Panel Thickness
|
1-10mm
|
|
|
Operating Distance
|
About 2.8mm
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
Stainless Steel / Nickel plated brass / Black aluminum oxidation
|
|
|
Button Material
|
Stainless Steel / Nickel plated brass / Black aluminum oxidation
|
|
|
Base Material
|
PBT
|
|
|
Contact Material
|
Silver Alloy
|
|
|
LED SPECIFICATIONS
|
|
|
|
LED Type
|
Horn Symbol
|
|
|
LED Color
|
Red / Green / Yellow / Blue/ White / Orange / Purple / Bi-color / Tri-color
|
|
|
LED Voltage
|
3V / 6V / 12V / 24V / 36V / 110V / 220V
|
|
|
LED Life
|
More Than 40,000 hours
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Max Switch Rating
|
5A / 250V AC/ DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Mechanical Life
|
More than 1000,000 cycles
|
|
|
Electrical Life
|
More than 100,000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP 67
|
|
|
Operation Temperature
|
20℃～+55℃
|
|
|
Operating Pressure
|
About 3-5N
|
|
|
Torque
|
5-14Nm
|
|
