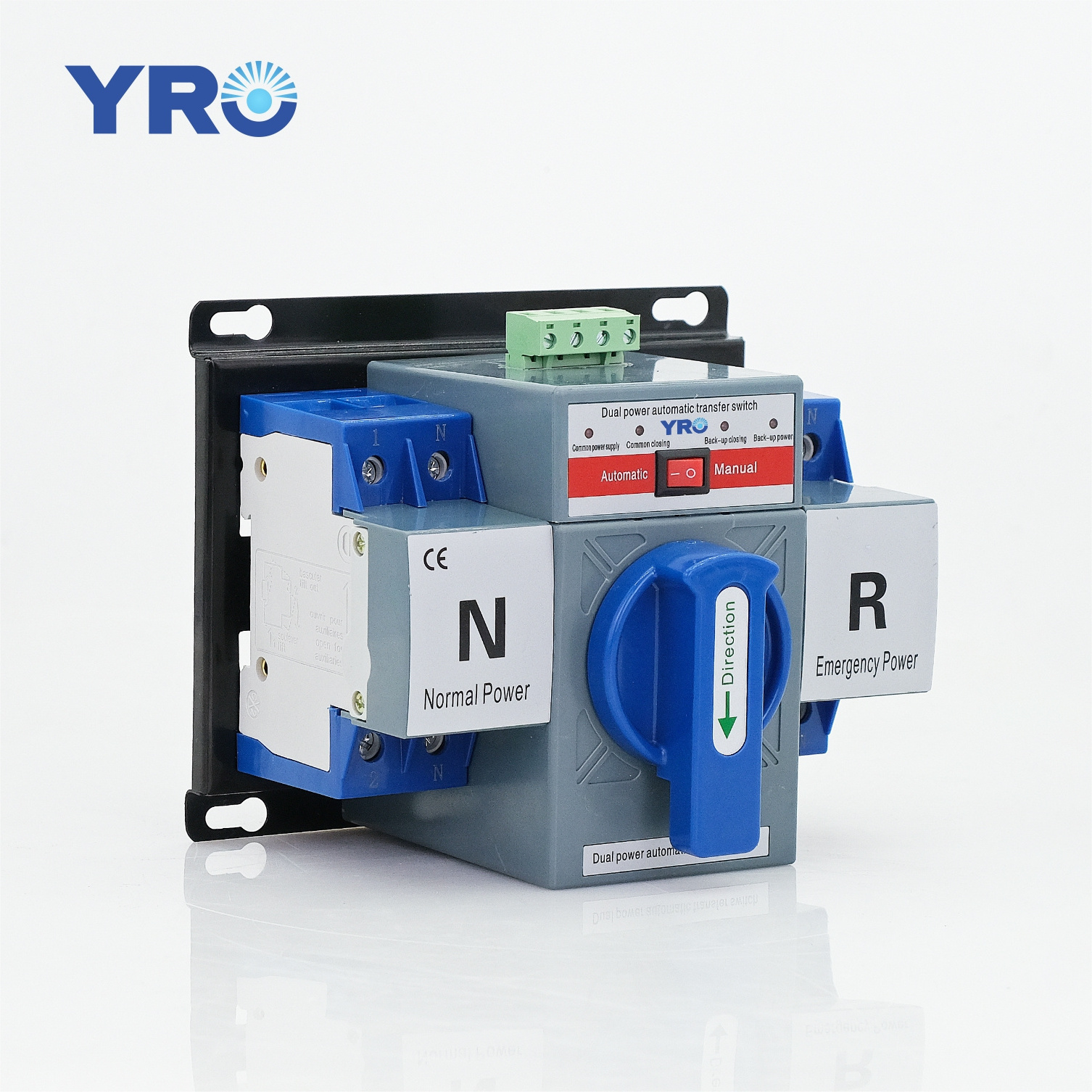

YRQ2CB-63 series automatic transfer switch is designed and developed by our company according to universal customers'
requirements.
This switch uses YRCB-63(C45=CB2) miniature circuit breaker as the actating element, is equipped with the new type
control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control(OPINIONAL) and power
generation, and it
is specially used in the important power supply locations where the power failure is not allowed.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YRQ2CB-63
-
Max. Current:
-
63A
-
Product Name:
-
4P/125A automatic switch
-
Pole:
-
4p
-
Frequency:
-
50Hz/60Hz
-
Rated current:
-
63A
-
Warranty:
-
1 Year
-
Rated Voltage:
-
400V
-
Certification:
-
CE ISO
Quick Details
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YRO
-
Model Number:
-
YRQ2CB-63
-
Max. Current:
-
63A
-
Product Name:
-
4P/125A automatic switch
-
Pole:
-
4p
-
Frequency:
-
50Hz/60Hz
-
Rated current:
-
63A
-
Warranty:
-
1 Year
-
Rated Voltage:
-
400V
-
Certification:
-
CE ISO
Product Description
Specification
|
Type
|
YRQ2CB-63
|
|
Specification current Ie(A)
|
6/10/16/20/25/32/40/50/63
|
|
Rated operating voltage, Ue (V)
|
AC230V/AC400V
|
|
Rated insulating voltage Ui (V)
|
AC 690V
|
|
Rated impulse withstand voltage (KV)
|
4KV
|
|
Rated short circuit making capacity Icm
|
6KA
|
|
Rated short circuit breaking capacity Icn
|
4.5KA
|
|
Service life
|
5000 times
|
|
Electric equipment grade
|
CB Class
|
|
Controller
|
Type A(basic type)
|
|
Rated control supply voltage,Us(V)
|
230V 50/60Hz
|
|
Operating transfer time (no time delay)
|
≤3s
|
|
keyword
|
AC ATS automatic transfer switch
|
