Fast Slide Power Energy Storage Plug Amphenol Surlok Connector

Fast Slide Power Energy Storage Plug Amphenol Surlok Connector

FOB Reference Price: Get Latest Price

≥10 Pieces

US $5.78

≥50 Pieces

US $5.35

≥500 Pieces

US $4.85

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Renhotec

Model Number:: Energy Storage Connector

Connector Type:: Plug

Orientation:: Straight / Right Angled

Terminal Diameter:: 6mm

Rated Current:: 60A / 100A / 120A

Rated Voltage:: 1000V / 1500V (Customizable)

Color:: Red / Black / Orange

Contact Material:: Cooper

Protection Rating:: IP54 / IP67

Flammability Rating:: UL 94 V-0

Certificate:: CE / RoHs

Quick Details

Type:: HV Connector

Application:: BMS / Energy Storage / Lithium Battery Pack

Gender:: Male

Place of Origin:: Guangdong, China

Brand Name:: Renhotec

Model Number:: Energy Storage Connector

Connector Type:: Plug

Orientation:: Straight / Right Angled

Terminal Diameter:: 6mm

Rated Current:: 60A / 100A / 120A

Rated Voltage:: 1000V / 1500V (Customizable)

Color:: Red / Black / Orange

Contact Material:: Cooper

Protection Rating:: IP54 / IP67

Flammability Rating:: UL 94 V-0

Certificate:: CE / RoHs

Full Series Energy Storage Connector

Product Description

Connector for Energy Storage Systems
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series, making it safer for workers to install energy storage systems (ESS).

Energy Storage Connectors meet customers’ critical technical indicators such as plugging force, insulation resistance, dielectric strength, and temperature rise through professional CAE simulation design. They are widely used in energy storage, new vehicles, and other industries.
ESS designers can use the connectors in tandem or separately based on the specific application requirements. The battery storage connectors are installed on the front of battery modules, while the connectors are installed on the back.
The energy storage connectors rotate 360 degrees , so they can accommodate the best angle to arrange heavy cabling. They have mechanical coding that protects against polarity reversal and prevents incorrect mating.
The battery storage connectors have a drawer-style , slide-in connection , eliminating the need for field wiring. The modular connection system can be scaled to meet application requirements, removing the constraints of cabling and allowing higher power distribution.

Products Detail

Manufacturer	Renhotec
Type	Plug / Socket
Orientation	Straight / Right Angled
Contact Size	6mm / 8mm / 12mm / 14mm
Rated Current	60A / 100A / 120A / 150A / 200A / 250A / 300A / 350A / 400A / 500A
Rated Voltage	1500V Max
Shielding	Shielded / Unshielded
Contact Finish	Silver
Protection Rating	IP54 / IP67
Color	Orange / Red / Black
Contact Material	Copper
Temperature Range	-40°C~ +125°C

Products Feature

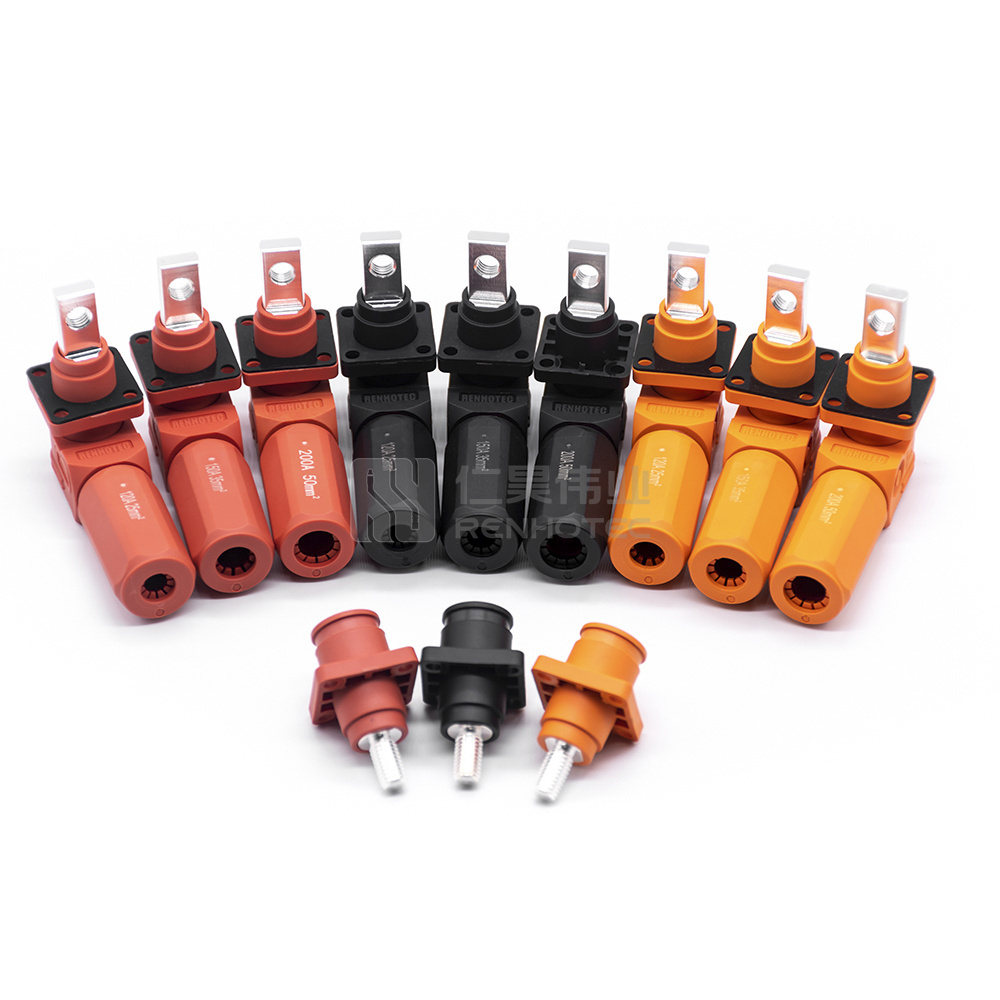

Suitable for Installation Environment , Three Colors Available

In order to be more adaptable to more installation scenarios, energy storage connector plugs are generally curved, we can also make straight plugs according to your needs.
The connectors are available in orange, red and black colors.

Custom Wire Harnesses

In addition to connectors, we can customize various energy storage connector harnesses to suit your needs.

Energy storage connector harnesses can be adapted to 60A~350A rated current and 10mm²~95mm².

Three Types of Terminals are Available

The receptacles of energy storage connectors are available with three types of terminals: copper plate thread, female
thread, and male thread.
You can choose the socket with the correct terminal block according to your specific installation environment.

Unique Contact Piece Design

Our connectors use the Flexcoils finger technology, small size, high current carrying capacity, compared to the same size of the terminal, can have more current.
