Quick Details
-
Range of Spindle Speed(r.p.m):
-
7.5 - 1000 r.p.m
-
Width of bed (mm):
-
550mm
-
Max. Turned Length (mm):
-
4850 mm
-
Spindle Motor Power(kW):
-
11Kw
-
Year:
-
2020
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YAWO
-
Model Number:
-
CW6263
-
Voltage:
-
380V, 50Hz 3Phases
-
Weight (KG):
-
3500 KG
-
CNC or Not:
-
Normal lathe
-
Automatic Grade:
-
Manual lathe
-
Name:
-
Lathe
-
Product Name:
-
lathe machine
-
Key words:
-
torno
-
Machine Type:
-
Conventional Lathe
-
Product type:
-
heavy duty lathe
-
Precision:
-
turning machine
-
Key word:
-
lathe machine turning
-
Keyword:
-
torno paralelo
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Max. Swing Diameter (mm):
-
630 mm
-
Certification:
-
CE Standard
Quick Details
-
Max. Length of Workpiece (mm):
-
5000 mm
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
105
-
Range of Spindle Speed(r.p.m):
-
7.5 - 1000 r.p.m
-
Width of bed (mm):
-
550mm
-
Max. Turned Length (mm):
-
4850 mm
-
Spindle Motor Power(kW):
-
11Kw
-
Year:
-
2020
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YAWO
-
Model Number:
-
CW6263
-
Voltage:
-
380V, 50Hz 3Phases
-
Weight (KG):
-
3500 KG
-
CNC or Not:
-
Normal lathe
-
Automatic Grade:
-
Manual lathe
-
Name:
-
Lathe
-
Product Name:
-
lathe machine
-
Key words:
-
torno
-
Machine Type:
-
Conventional Lathe
-
Product type:
-
heavy duty lathe
-
Precision:
-
turning machine
-
Key word:
-
lathe machine turning
-
Keyword:
-
torno paralelo
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Max. Swing Diameter (mm):
-
630 mm
-
Certification:
-
CE Standard
Product Description
● Good for turning long workpieces
●
The surface of the bedways is supersonic frequency handened.
● The spindle system is high in rigitidy and accuracy.
● Clutch in headstock makes the lathe more safe and reliable
● Ballscrew Centralised for X and Z axis
● Centralized Lubrication system.
Product Paramenters
|
Specification
|
CW6163
CW6263
|
CW6180
CW6280
|
CW61110
CW62110
|
CW61125Q
CW62125Q
|
|||
|
Swing over bed
|
630mm
|
800mm
|
1100mm
|
1250mm
|
|||
|
Swing over cross slide
|
350mm
|
480mm
|
800mm
|
920mm
|
|||
|
Swing over gap
|
800mm
|
1000mm
|
1300mm
|
1450mm
|
|||
|
Workpiece length
|
1500 3000 5000 6000 8000 10000 12000 20000mm
|
|
|
|
|||
|
Spindle bore
|
105mm (optional 130mm)
|
|
|
|
|||
|
Spindle speed and range
|
7.5-1000 18kinds
|
5.4-720 18kinds
|
4.8-640 18kinds
|
|
|||
|
Cross feed step and range
|
0.05-24.3 64kinds
|
|
|
|
|||
|
Range 1:1
|
0.1-1.52
|
|
|
|
|||
|
Range 16:1
|
1.6-24.3
|
|
|
|
|||
|
Change gears feed range
|
0.06-0.912 mm/r
|
|
0.05-0.76 mm/r
|
|
|||
|
Ratio of longitudianl feed to cross
|
1/2
|
|
|
|
|||
|
Saddle rapid speed
|
4000 mm/min
|
|
|
|
|||
|
Leadscrew pitch
|
12(metric) 1/2(inch)
|
|
|
|
|||
|
Metric thread
|
50 kinds 1-240 (other type thread 14 kinds)
|
|
|
|
|||
|
Inch thread
|
26 kinds 14-1 t.p.i
|
|
|
|
|||
|
Module thread
|
53 kinds 0.5-120
|
|
|
|
|||
|
Pitch thread
|
24kinds 28-1DP
|
|
|
|
|||
|
Lower tool post travel
|
420mm
|
500mm
|
|
|
|||
|
Upper tool post travel
|
200mm
|
|
|
|
|||
|
Tailstock travel
|
250mm
|
|
|
|
|||
|
Tailstock taper
|
MT6
|
|
|
|
|||
|
Main motor
|
11kw
|
|
|
|
|||
|
Loading capacity
|
2000 kgs
|
2000(2500) kgs
|
2500 kgs
|
2500(6000) kgs
|
|||
|
Bedway width
|
550mm
|
550(600)mm
|
600mm
|
600(755)mm
|
|||
Detailed Images
Precision Chuck
Standard: Four jaw chuck, clients can choose different size chuck addording to requestment. Three chuck is optional. Chuck cover is also standard.
Sliding Box
Sliding box has a fast moving structure, single handle visualization operation; Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.
Steady Rest and Follow Rest
Length above 3000mm, steady rest and follow rest are standard.
Quenching Guide rail
The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipped with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.
CW6163, length 1500mm show

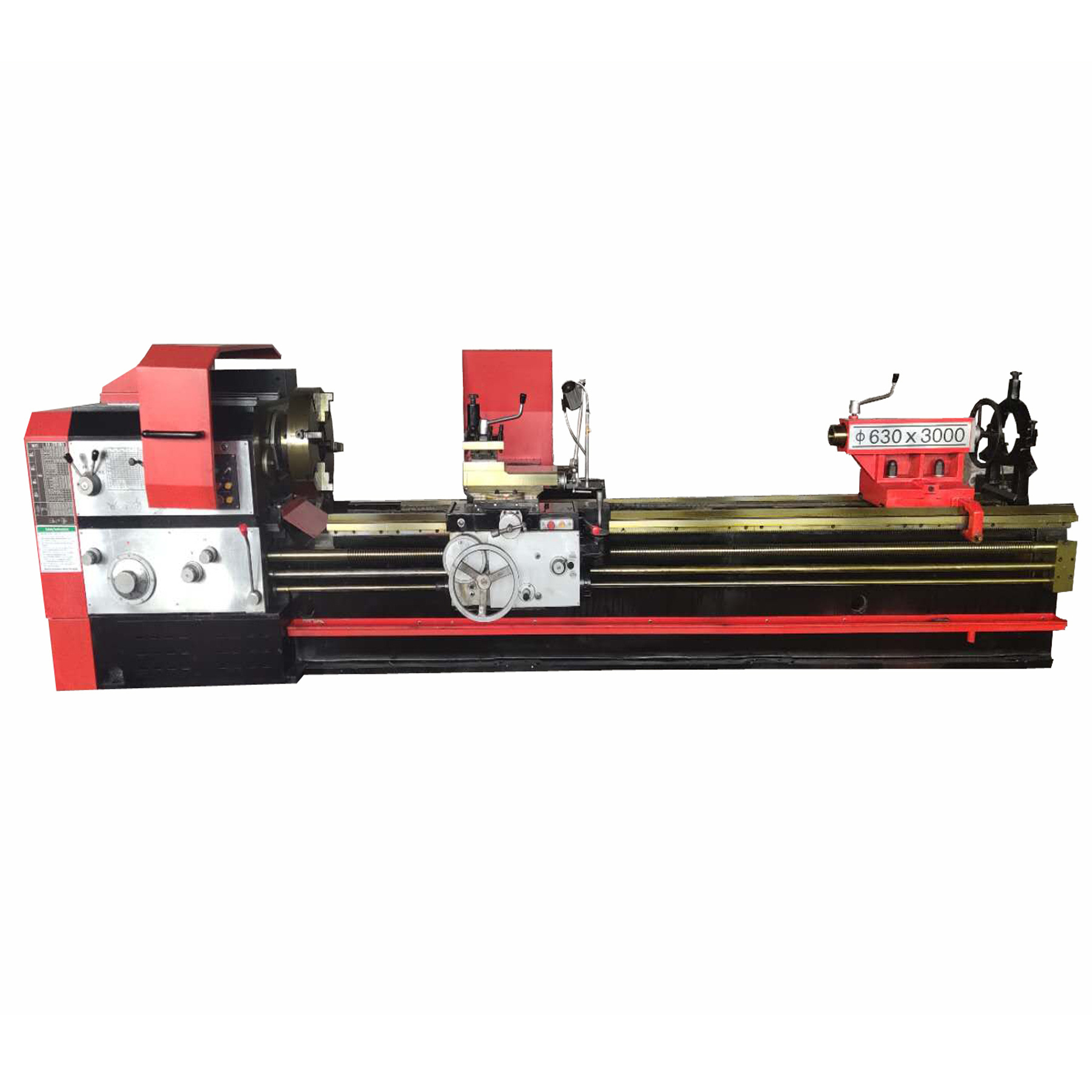

CW6163, length 3000mm show
