Quick Details
-
Function:
-
Industrial Standards
-
Brand Name:
-
POLINOVEL
-
Model Number:
-
PL-BC1200W
-
Input voltage and current:
-
100-240V/50HZ,60HZ
-
output voltage and current:
-
12V/24V/48V
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Lithium Battery Charger
-
Input voltage:
-
90-132Vac or 180-260Vac, 50/60Hz
-
Color:
-
Silver
-
AC plug:
-
Your country's standard
-
DC plug:
-
Anderson, XLR, Clamp Cord, RCA Jack etc
-
Dimension:
-
260x175x90mm
-
Net weight:
-
4.5kg
-
Certificate:
-
CE, ROHS
-
Warranty:
-
12 months
-
Supports Solar Energy:
-
NO
Quick Details
-
Type:
-
Electric
-
Port:
-
AC
-
Material:
-
Aluminium Alloy, Aluminium Alloy
-
Function:
-
Industrial Standards
-
Brand Name:
-
POLINOVEL
-
Model Number:
-
PL-BC1200W
-
Input voltage and current:
-
100-240V/50HZ,60HZ
-
output voltage and current:
-
12V/24V/48V
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Lithium Battery Charger
-
Input voltage:
-
90-132Vac or 180-260Vac, 50/60Hz
-
Color:
-
Silver
-
AC plug:
-
Your country's standard
-
DC plug:
-
Anderson, XLR, Clamp Cord, RCA Jack etc
-
Dimension:
-
260x175x90mm
-
Net weight:
-
4.5kg
-
Certificate:
-
CE, ROHS
-
Warranty:
-
12 months
-
Supports Solar Energy:
-
NO

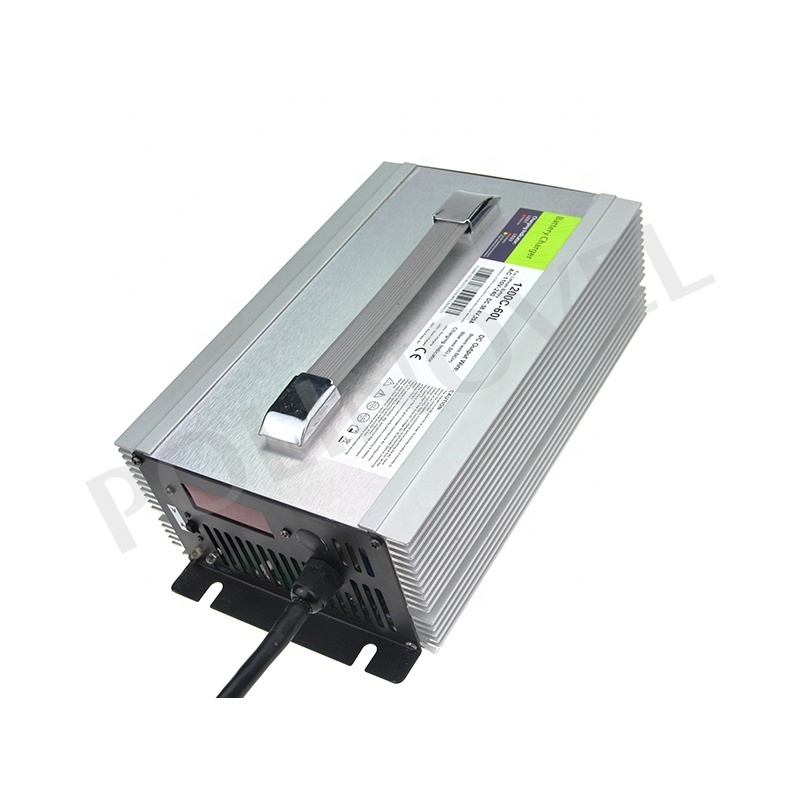

Polinovel 12 24 48 volt lithium lifepo4 battery charger for solar golf cart rv application
| Model | 1200C-12L | 1200C-24L | 1200C-36L | 1200C-48L | 1200C-60L |
| Max output voltage | 14.6V±0.2 | 29.2V±0.2 | 43.8V±0.2 | 58.4V±0.2 | 73V±0.2 |
| Output current | 50A±5% | 30A±5% | 25A±5% | 20A±5% | 15A±5% |
| Battery specification | 4S | 8S | 12S | 16S | 20S |
| Max output power | 1200W | ||||
| Input voltage | 90-132Vac, 180-260Vac, 90-260Vac | ||||
| Shell material | Aluminum | ||||
| Outline dimension | 260x175x90mm | ||||
| Input socket | IEC Standard | ||||
| AC wire | 1.5m length | ||||
| DC wire | 1.5m length | ||||
| Net weight | 4.5kg | ||||
| Humidity | 5~95% (with package) | ||||
| Altitude | ≤3000m (work normally) | ||||
♦ Software over voltage protection: The charger output voltage does not exceed set the maximum charging voltage of the battery.
♦ Current limiting protection: The charger output current does not exceed set battery charge current at CC mode.
♦ Short circuit protectoin: Short circuit protection will be automatically recovery after remove the condition.
♦ Reverse polarity protection: When output wires are reversely connected to the battery, the charger will not operate and will work normally when DC wires are correctly connected.
*Above are the more common using typs of connector, we can also provide other connectors as per customer's request to fit with the battery.
Payment Term: (sample order) T/T or Western Union 100% before production; (bulk order) T/T 30% deposit in advance and balance before shipment.
Trade Term: (sample order) Ex-works; (bulk order) FOB Shenzhen or CIF customer specified port; Final term please refers to the quotation you received from our sales .
Packing: all the products provide by PL ENERGY will be professional packed in standard exporting carton box / wooden case, that are strong enough to bear long distance transportation.
Shipping: PL ENERGY can arrange delivery the products to different countries by sea, air or express, we will recommend the most suitable shipping way according to your order quantity other requests on time or cost.
For any quesiton and price quotation, welcome to contact us by sending your inquiry now !
