Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODOELEC
-
Model Number:
-
ODO250A
-
Name:
-
Electrical Switch
-
Feature:
-
Emergency Switch
-
Electric Life:
-
1000 Times
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP50
-
Max. Current:
-
125A/250A
-
Max. Voltage:
-
80V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODOELEC
-
Model Number:
-
ODO250A
-
Name:
-
Electrical Switch
-
Feature:
-
Emergency Switch
-
Electric Life:
-
1000 Times
-
Certification:
-
CE
Application
220V 250A Electric Forklift Parts Direct Current Power Supply Switch ED250
Emergency switch is applicable in various electric motor and other supporting equipment. It is very safe and convenient.

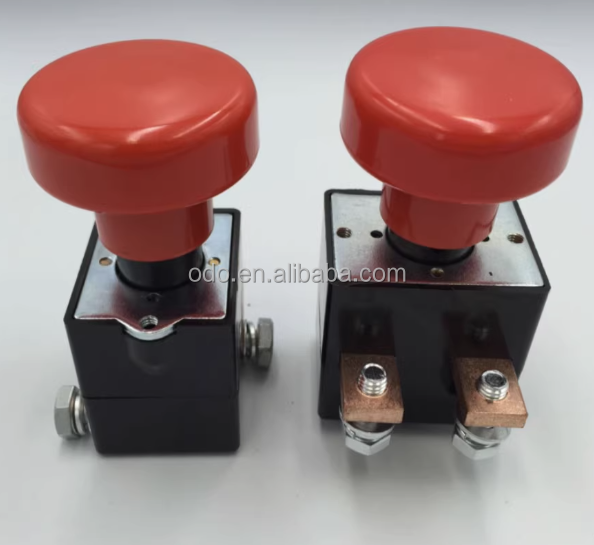

Detailed Images
|
Model
|
ODO250A
|
|
Rated voltage
|
≯80V
|
|
Contact circuit rated load current
|
250A
|
|
Typical voltage drop across contacts per 100A
|
≯60mV
|
|
Insulation resistance
|
≥50MΩ
|
|
Electric strength to resist
|
50/60Hz 1000VAC/1 min
|
|
Contact form
|
1NO
|
Performance
|
Closing force
|
20N≤F1≤50N
|
|
|
||
|
Disconnectiong force (Ft)
|
20N≤F1≤50N
|
|
|
||
|
Body size
|
64.5mm*63mm*132mm (max)
|
|
|
||
|
weight
|
≤450g
|
|
|
||
Technical parameter
|
Overload current
|
≤7le, ≯1s
|
|
|
||
|
Electric life
|
≥10000 times
|
|
|
||
|
Mechanical life
|
50 thousand times
|
|
|
||
|
Work specification
|
Continuous
|
|
|
||
|
Contact material
|
AgCdO/ AgCuO
|
|
|
||
|
Technical Specification
|
GB14048.3-2010
|
|
|
||
Installation Diagram
