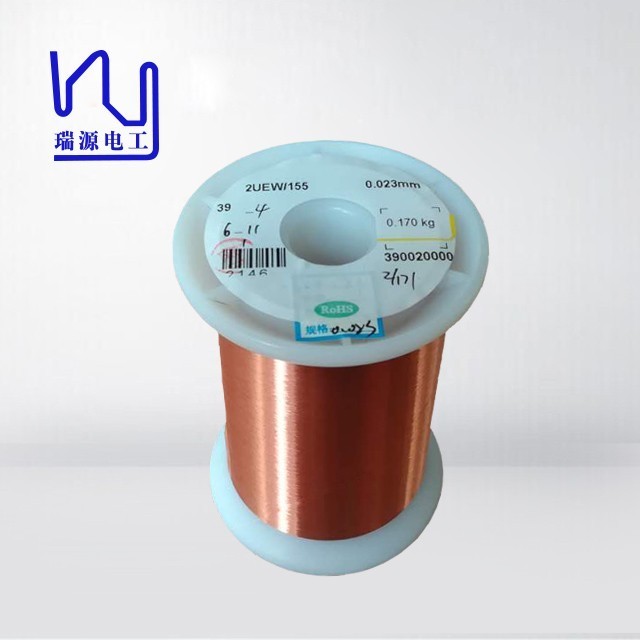

Ultra Thin extreame fine copper wire for Appliance , multi applications wide size range

Ultra Thin Copper Wire extreame fine copper wire for Appliance , multi applications applicable wide size range

Home appliances is our part of life, we use them every day. From the tiny appliance like hair dryers to the big one such as refrigerator, air conditioner. There are different sizes of enamelled cooper wire inside all of them.

Ruiyuan offers not only enamelled cooper wire but proved by market with AWG 20-56 different sizes.

Under the respective standard (customized to the region where appropriate), the typical technical values are given for the different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimid etc

Features and benefits:

1.Very good solderability that can be soldered without removal of coating.

2.Small tg δ value under high frequency electronic apparatus.

3.Easy to be dyed to different colors for identifying purpose when soldered.

4.Meets NEMA MW 80 standards for copper magnet wire and complies with RoHS regulations

Certificates and standards:

ISO 9001-2000, ISO TS 16949, ISO 14001-2004, UL Approved,

IEC, JIS and NEMA.

Applications of enamelled copper wire for Home Appliance

1.White h ousehold appliances
2.I ntelligent electric meter
3 Hair dryer

4.Charger

Temperature specifications:

Ultra Thin Copper Wire extreame fine copper wire for Appliance , multi applications applicable wide size range

Home appliances is our part of life, we use them every day. From the tiny appliance like hair dryers to the big one such as refrigerator, air conditioner. There are different sizes of enamelled cooper wire inside all of them.

Ruiyuan offers not only enamelled cooper wire but proved by market with AWG 20-56 different sizes.

Under the respective standard (customized to the region where appropriate), the typical technical values are given for the different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimid etc

Features and benefits:

1.Very good solderability that can be soldered without removal of coating.

2.Small tg δ value under high frequency electronic apparatus.

3.Easy to be dyed to different colors for identifying purpose when soldered.

4.Meets NEMA MW 80 standards for copper magnet wire and complies with RoHS regulations

Certificates and standards:

ISO 9001-2000, ISO TS 16949, ISO 14001-2004, UL Approved,

IEC, JIS and NEMA.

Applications of enamelled copper wire for Home Appliance

1.White h ousehold appliances
2.I ntelligent electric meter
3 Hair dryer

4.Charger

Temperature specifications:

ELANTAS	Temperature Class Degrees C
Polyvinyl Formal	Class 105
Polyurethane/Polyamide (Nylon)	Class 155
Polyurethane	Class 155
Polyurethane/Polyamide (Nylon)	Class 180
Polyurethane	Class 180
Solderable Polyester	Class 180
Solderable Polyester/Polyamide (Nylon)	Class 180
Modified Polyester/Polyamide (Nylon)	Class 180
Modified Polyester/Polyamideimide	Class 200
Modified Polyester	Class 200
Modified Polyester/Polyamideimide	Class 200
Modified Polyester/Polyamideimide	Class 220
Polyimide	Class 240
Polyvinyl Butyral Self Bonding over Polyurethane / Nylon	Class 130
Modified Polyester/Polyamideimide/Bondcoat	Class 180
