- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
HDMI Switch 4K
-
Keyword:
-
HDMI Switch
-
Input:
-
5HDMI
-
Certifications:
-
CE FCC ROHS
-
Warranty:
-
1 Year
-
Power Supply:
-
DC 5V 1A
-
Resolution:
-
4k/60hz
-
Dimension (L x W x H):
-
159*63.9*22 (mm)
-
Weight:
-
245g
-
HDMI version:
-
2.0
Quick Details
-
Model Number:
-
HDSW0030M1
-
Brand Name:
-
ASK
-
Place of Origin:
-
GuangDong ShenZhen
-
Product name:
-
HDMI Switch 4K
-
Keyword:
-
HDMI Switch
-
Input:
-
5HDMI
-
Certifications:
-
CE FCC ROHS
-
Warranty:
-
1 Year
-
Power Supply:
-
DC 5V 1A
-
Resolution:
-
4k/60hz
-
Dimension (L x W x H):
-
159*63.9*22 (mm)
-
Weight:
-
245g
-
HDMI version:
-
2.0

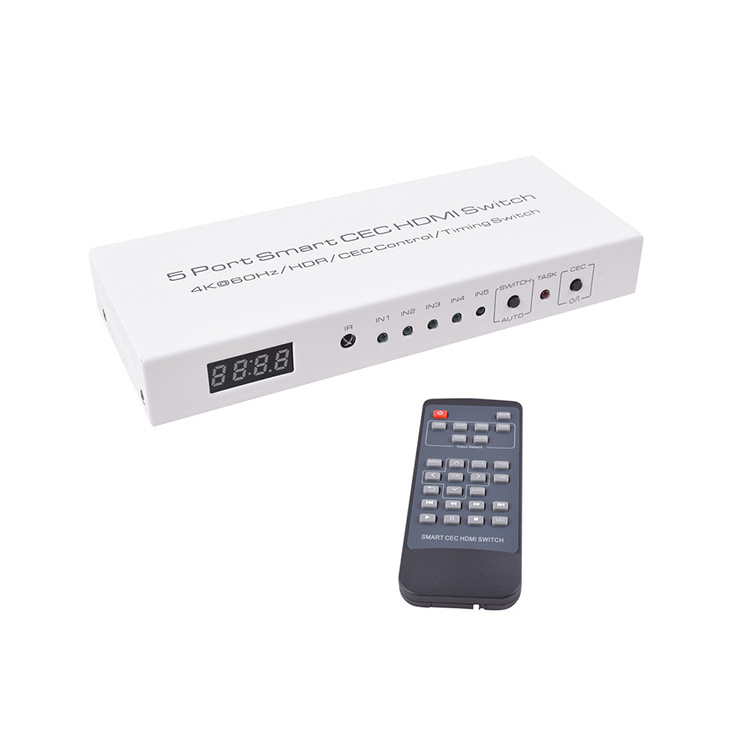

Hot ASK HDSW0030M1 5 Port Smart CEC HDMI time Switch with timer 5x1 4k 60Hz
5 Port Smart CEC HDMI Switch
Model NO:HD SW0030 M1
Introduction:
Our series of HDMI Converter, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
ASK HDSW0030M1 5 Port Smart CEC HDMI time Switch with timer 5x1 4k 60Hz
The device can switch five HDMI Inputs to one HDMI Output, It can easily switch five routes of UHD Source to any one UHD display or projector.
ASK HDSW0030M1 5 Port Smart CEC HDMI time Switch with timer 5x1 4k 60Hz
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Spec: HD SW0015 M1
|
Mode l No . |
HD SW0030M1 |
|
Mode l name |
5 Port Smart CEC HDMI Switch |
|
Input channel |
5 port |
|
Output channel |
1 port |
|
Video format |
480P/720P/1080P/2160P@60/50/30/25/24(Support1080P@120) Supports HDR and Dol Vision |
|
Deep color |
8/10/12Bit @ 480P/720P/1080P 8Bit@ 2160P |
|
Audio format |
Dolby HD/DTS HD/Dolby At om s/Do lb y AC3/DTS/LPCM etc. |
|
|
600MHz Max. |
|
Transmission rate |
18Gbps Max. |
|
Input cable l ength |
2160P/AWG 26 ≤ 5m ; 1080P/AWG 26 ≤ 10 m |
|
Output cable l ength |
2160P/AWG 26 ≤ 5 m ; 1080P/AWG 26 ≤ 12 m |
|
Power adapter specification |
Input: AC 100~240V / Output: DC 5V/1A |
|
Max w orking c urrent |
350 mA |
|
Working t emperature r ange |
-5 ~ +40 ℃ |
|
Working h umidity r ange |
5 to 85%RH( No Condensation ) |
|
Storage t emperature |
-15 to 55 ℃ |
|
Storage h umidity |
5 ~95%RH( No Condensation ) |
|
Size |
1 59 * 63.9 *2 2 (mm) |
|
Weight |
245 g |
|
Accessories |
Manual , Power Adaptor , R emote C ontrol |
ASK HDSW0030M1 5 Port Smart CEC HDMI Switch 5x1 4k 60Hz
Accessories Content:
1, Manual
2, Remote
3 ,5V Power Adaptor
ASK HDSW0030M1 5 Port Smart CEC HDMI Switch 5x1 4k 60Hz
Physical Connect Port:
To use HDMI Cable to connect the HD Source with the HDMI Input port of device.
To use HDMI Cable to connect the HDMI Output port of device with the Display.
To connect the DC5V power adaptor with the DC5V port of the device.
T hen press again the Switch Button at device or press the 1,2,3 ,4,5 button
at remote, it can choose the input channel that you want.
Business Terms
HDMI Switch 4K 60HZ HDMI 5x1 Port 5 In 1 Out with IR Wireless Remote Control Full HD 4K HDMI Switch
| Accepted Delivery Terms: | FOB, CIF, EXW |
| Accepted Payment Currency: | USD, EUR, HKD, GBP, CNY |
| Accepted Payment Type: | T/T, L/C, Western Union, Cash |
| Nearest Port: | Shenzhen |
Hot New Model 5 Port Smart CEC HDMI Switch Support Supports HDR and Dolby Vision 4k 60Hz
Operation of remote:
Q1
.What is your MOQ?
A
: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.
Q2
.What package do your use for the product?
A
:Usually we have professional neutral package for the products. Customized package are also available based on certain MOQ.
Q3
.What is your main market?
A
: Asia Australasia Central/South America Eastern Europe Mid East/Africa North America Western Europe
HDMI Switch 4K 60HZ HDMI 5x1 Port 5 In 1 Out with IR Wireless Remote Control Full HD 4K HDMI Switch
