The waste tire processing production line can recycle tires in the diameter range of 400-3000mm according to customer requirements. The applicability is strong. The output size can be controlled within the range of 5-100mm, and the output can reach 200-10000kg/h.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
1200
-
Voltage:
-
Customers request
-
Dimension(L*W*H):
-
15*10*4m
-
Year:
-
2021
-
Weight (KG):
-
10000 kg
-
Power (kW):
-
200
-
Name:
-

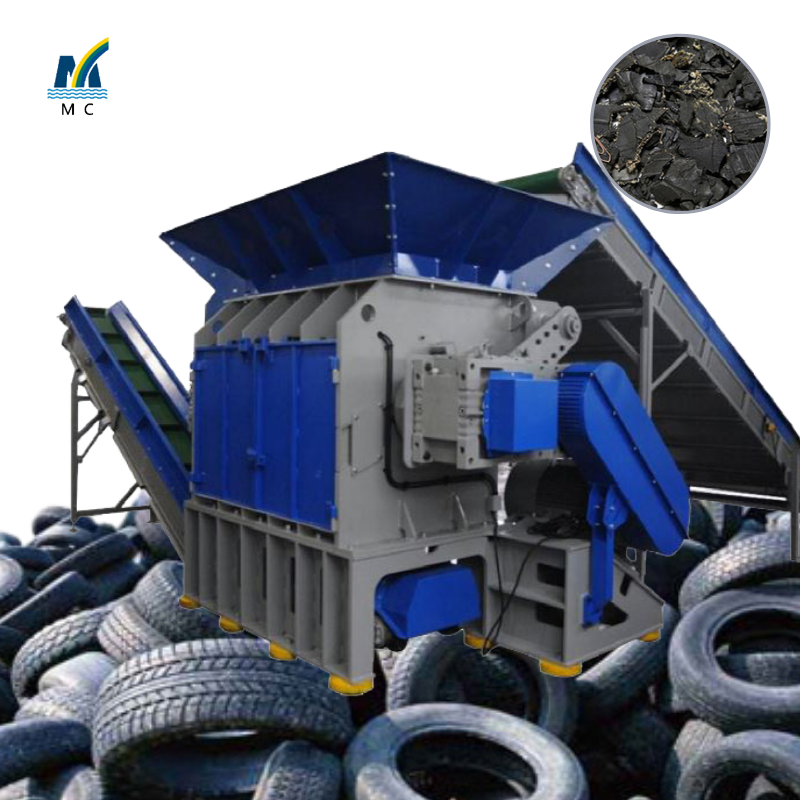

Two Shaft Waste Tire Crusher Shredder Machine
-
Keyword:
-
TDF TDA PNSS rubber shredding machinery tire recycling plant
-
Color:
-
Customers' Demand
-
Final product:
-
Small Scraps
-
Capacity:
-
1000-2000KG/H
-
Shaft Design:
-
Double
-
Blade material:
-
H13
-
Waste tire recycling line:
-
Tire Recycling Equipement Comeplete Line
Quick Details
-
Place of Origin:
-
HEN
-
Brand Name:
-
MC
-
Marketing Type:
-
Hot Product 2021
-
Model Number:
-
1200
-
Voltage:
-
Customers request
-
Dimension(L*W*H):
-
15*10*4m
-
Year:
-
2021
-
Weight (KG):
-
10000 kg
-
Power (kW):
-
200
-
Name:
-
Two Shaft Waste Tire Crusher Shredder Machine
-
Keyword:
-
TDF TDA PNSS rubber shredding machinery tire recycling plant
-
Color:
-
Customers' Demand
-
Final product:
-
Small Scraps
-
Capacity:
-
1000-2000KG/H
-
Shaft Design:
-
Double
-
Blade material:
-
H13
-
Waste tire recycling line:
-
Tire Recycling Equipement Comeplete Line
In order to better give you professional answers, when sending an inquiry, please describe your requirements (such as: processed raw materials, output size,capacity, etc.) and attach your contact information (such as phone number, email, facebook, whatsapp ,WeChat, etc.).
Waste tyre TDF TDA PNSS rubber shredding machinery tire recycling plant
Waste tire processing equipment is a large-scale complete set of equipment that completely separates the three major raw materials contained in the tire: rubber, steel wire, and fiber at room temperature and realizes 100% recycling.
Product Description
The production line runs at room temperature without any chemical additives and will not cause secondary pollution to the environment. The production line adopts PLC control system, which is easy to operate and maintain, and has the characteristics of low energy consumption and long service life.
Operating principle
*First, the steel wire tire decomposing equipment decomposes the steel wire tire into blocks.
*Then the tire block is broken into (5-10cm) blocks by the tire shredder.
*After the steel wire separator: the rubber and the steel wire are separated and processed into rubber particles. (10mm-20mm).
* In the rubber pellet machine: crush the rubber particles to a smaller size (1mm-7mm).
*After passing through the vibrating screen: sort the rubber particles of different sizes, and send the oversized particles back to the crusher Carry out secondary pulverization,.
*Then fiber separator: remove foreign matter and fibers, then enter the rubber mill at room temperature for fine grinding, processed into fine rubber powder with a fineness of 5-80 mesh,
*Finally bagged after a magnetic separation process Sales.
Crusher effect
whole car recycle price tire shredder machine for wasting recycling
The waste tires are shredded, crushed, milled, separated from the steel wire, separated from nylon, and screened to make pure rubber powder, steel wire and nylon, which can be directly sent to the corresponding factories as industrial raw materials. For example, steelmaking, textiles, construction, building materials, etc.
Application Areas:
Car Tire Truck Tyre Rubber TDF Shredder has been designed for a wide array of applications and industries, suitable for shredding solid material such as tire, car tire, bicycle tires, motorcycle tires, car tires, truck tires, engineering tires, rubber products, carpet padding, rubber floor material, patio deck, livestock mats, sidewalk and etc.
1.Civil Engineering Applications:They can be used as landfill gas trench collection walls, as back fill for road landslide repair,
as vibration reducing material for railway lines and as back fill for maintaining walls.
2.Ground and Crumb Rubber: For example, it can be used in paving projects or be moulded into products. Common examples of rubber
moulded products include carpet padding, rubber flooring materials, patio decks, livestock mats, movable speed bumps, sidewalks,
dock bumpers, railroad crossing blocks just to mention but a few.
3.Carbon Source:Instead of using coke or coal in steel mills, rubber can be used as a source of fuel. In fact, studies have
recommended that steel mills should adopt burning of rubber as fuel instead of coal, since coal is mined and can be depleted.
Using rubber as fuel is a great way for these mills to go green and reduce their carbon fingerprints.
Car Tire Truck Tyre Rubber TDF Shredder has been designed for a wide array of applications and industries, suitable for shredding solid material such as tire, car tire, bicycle tires, motorcycle tires, car tires, truck tires, engineering tires, rubber products, carpet padding, rubber floor material, patio deck, livestock mats, sidewalk and etc.
1.Civil Engineering Applications:They can be used as landfill gas trench collection walls, as back fill for road landslide repair,
as vibration reducing material for railway lines and as back fill for maintaining walls.
2.Ground and Crumb Rubber: For example, it can be used in paving projects or be moulded into products. Common examples of rubber
moulded products include carpet padding, rubber flooring materials, patio decks, livestock mats, movable speed bumps, sidewalks,
dock bumpers, railroad crossing blocks just to mention but a few.
3.Carbon Source:Instead of using coke or coal in steel mills, rubber can be used as a source of fuel. In fact, studies have
recommended that steel mills should adopt burning of rubber as fuel instead of coal, since coal is mined and can be depleted.
Using rubber as fuel is a great way for these mills to go green and reduce their carbon fingerprints.
Why choose us?
Direct sales from the factory to save costs and genuine product with excellent quality
Professional designers provide customized services for free
The products made with advanced technology are trustworthy
24 hours online after-sales service
We'll ship the products as soon as possible
Technical Features:
1.No polluted water, no waste gas and no waste residuce during production process;
2.Compact structure, small space and easy maintennance;
3.Lower energy consumption and good cost performance of investment;
4.shredder is designed with a powerful engine, long working length and aggressive input,Internal feeding volume bigger than
traditional and common single shaft shredder machine;
5.The two cutting rotors powerfully grab the feed material;
6.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse
direction to clear the foreign matter, and then resume;
7.Screen is used to make sure the size of the output can meet each customer's requirement( From 40mm-75mm);
8.Cutters removal and replacement can be carried out safely and simply.
9.Our tire shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following
advantages:High Efficiency,Greater Stability,Compact Size,Higher Torque Density,Cost Effective Precision,High Radial Loads.
Main parameters of product performance
|
Model
|
MC-600
|
MC-800
|
MC-1000
|
MC-1200
|
MC-1600
|
MC-1800
|
MC-2000
|
|
Spindle power
(Kg)
|
15*2
|
22*2
|
37*2
|
45*2
|
55*2
|
75*2
|
90*2
|
|
Spindle speed
(r/min)
|
20
|
20
|
18
|
18
|
18
|
18
|
18
|
|
Yield
(t/h)
|
0.8-1.0
|
1.0-1.5
|
2.5-3.0
|
3.0-5.0
|
5.0-8.0
|
8.0-10.0
|
10.0-15.0
|
|
Number of cutters
|
24
|
32
|
22
|
28
|
40
|
44
|
50
|
|
Particle size
(mm)
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
|
Silo size
(mm)
|
600-800
|
800-1000
|
1000-1200
|
1200-1500
|
1600-1800
|
1800-2000
|
2000-2200
|
|
Dimension
(mm)
|
3500*1500*2500
|
4800*1800*2500
|
3800*2000*2800
|
6400*2200*3000
|
6800*2300*3200
|
7300*2500*3500
|
8000*2800*3800
|
|
Weight
(Kg)
|
3200
|
3800
|
4800
|
5600
|
6200
|
7000
|
8000
|
Different types of knife rollers
The advantage of our machine blades
The blade material is made of special alloy tool steel forging banks, precision machining, multiple heat treatments, and low temperature freezing heat treatment technology. ►The overall toughness of hardness can be used repeatedly. - Customized according to clients raw-materials thickness and finished Product Size - SKD11 high alloy steel material - Hardness ≥62-65 HRC - Strong impact resistance - Good toughness and surface hardness - 100% ultrasonic nondestructive inspection
Related machines:
1. Tire bead ( steel wires) removing machine
2. Tire cutter machine
3. Tire crusher machine
4. Tire sperating machine( sperate the metal, fiber, rubber)
5. Tire powder making machine
1. Tire bead ( steel wires) removing machine
2. Tire cutter machine
3. Tire crusher machine
4. Tire sperating machine( sperate the metal, fiber, rubber)
5. Tire powder making machine
