Quick Details
-
Model Number:
-
XZ-DS01-UVC
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
Thingsend
-
Theory:
-
uvc sensor
-
Output:
-
digital sensor
-
Brand:
-
wireless uvc sensor
-
Technology:
-
lora wireless
-
Measurement Range:
-
0-5mW/cm²
-
Power supply:
-
ER26500 3.6V Li-SOCI2 battery
-
Battery life:
-
5year@8700mAH
-
Battery:
-
included and replaceable
-
Wireless Distance:
-
5km (Line of Sight)
-
Working frequency:
-
487mhz(868/920/433mhz customized)
-
Transmission interval:
-
5mins default, 1~240mins settable
Quick Details
-
Usage:
-
Ultraviolet Detection
-
Mounting Type:
-
wall mount
-
Description:
-
Ultraviolet Rays Sensor
-
Model Number:
-
XZ-DS01-UVC
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
Thingsend
-
Theory:
-
uvc sensor
-
Output:
-
digital sensor
-
Brand:
-
wireless uvc sensor
-
Technology:
-
lora wireless
-
Measurement Range:
-
0-5mW/cm²
-
Power supply:
-
ER26500 3.6V Li-SOCI2 battery
-
Battery life:
-
5year@8700mAH
-
Battery:
-
included and replaceable
-
Wireless Distance:
-
5km (Line of Sight)
-
Working frequency:
-
487mhz(868/920/433mhz customized)
-
Transmission interval:
-
5mins default, 1~240mins settable
Product Description
Product Introduction

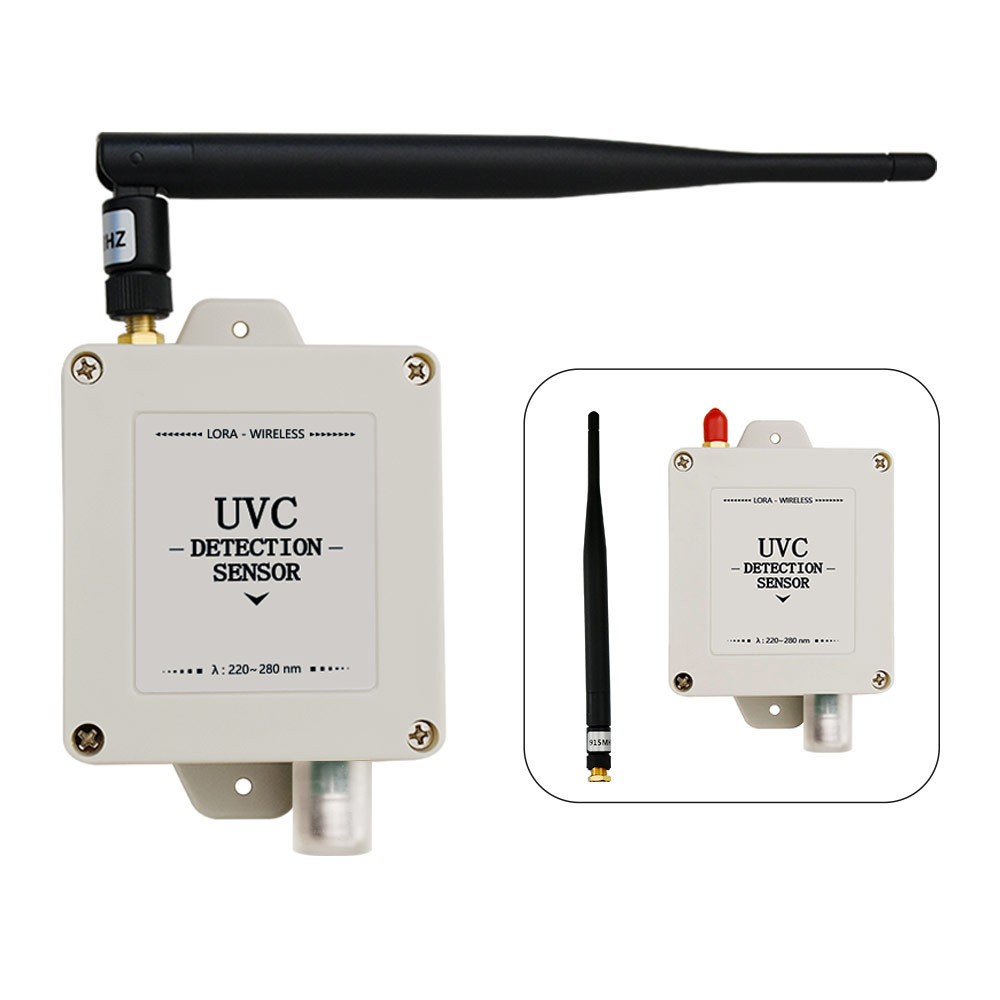

UVC lora wireless uvc sensor is a high quality wireless uvc measuring instrument.It consists of uvc sensor, signal processing circuit, lora communication module and battery.Working with our lora wireless gateway can realize remote temperature and humidity data acquisition. Lora wireless gateway sends data to a third party data acquisition equipment by using USB serial/Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors.
Product Features
♦ Wireless transmission free wiring
♦ Built-in replaceable Li-SOCI2 battery
♦ Built-in replaceable Li-SOCI2 battery
♦
Long
distance lora
wireless transmission
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
Product Parameters
|
General Parameters
|
|
|
|
Transmitting Power:<1 7dBm
|
Receiving Current:< 20mA
|
|
|
Sensitivity:< -136dBm
|
Average power consumption:< 15uA
|
|
|
Transmitting Current :<1 20mA
|
Battery Life:5 year@8700mAH
|
|
|
Transmission Distance: >5KM(L OS)
|
Power supply:1pc ER26500 3.6V (Li- -SOCI2) battery (replaceable and included)
|
|
|
Operating Temperature:-40°C~80°C
|
Working Frequency:476.505 & 488.505MHz (frequency can be customized)
|
|
|
Sensor Parameters
|
|
|
|
Measurement range: 0-5mW/cm²
|
Pressure Range:0.005mW/cm²
|
|
|
Transmission interval: 5mins default,1-240mins settable by user
|
Transmission Interval:30mins default, 1 ~ 240mins settable by user
|
|
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.
Gateway Choice
Our lora sensors can only work with our lora gateway,please click following pictures to learn more information about our lora gateway.
