Quick Details
-
Filling Accuracy:
-
+-0.5%
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAIXINGDA
-
Dimension(L*W*H):
-
As Parameter
-
Weight:
-
6 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
Liquid Filling Machine
-
Manufacturer:
-
Yes
-
OEM:
-
Accept
-
Brand:
-
STRONG
-
Model:
-
KC-280II
-
Function:
-
Liquid Filling
-
Operation Way:
-
Manual
-
ODM:
-
Accept
-
Cetificate:
-
CE Approved
Quick Details
-
Machinery Capacity:
-
200BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Oil, Water, Milk, Beer, Juice
-
Filling Accuracy:
-
+-0.5%
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAIXINGDA
-
Dimension(L*W*H):
-
As Parameter
-
Weight:
-
6 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
Liquid Filling Machine
-
Manufacturer:
-
Yes
-
OEM:
-
Accept
-
Brand:
-
STRONG
-
Model:
-
KC-280II
-
Function:
-
Liquid Filling
-
Operation Way:
-
Manual
-
ODM:
-
Accept
-
Cetificate:
-
CE Approved
Product Description

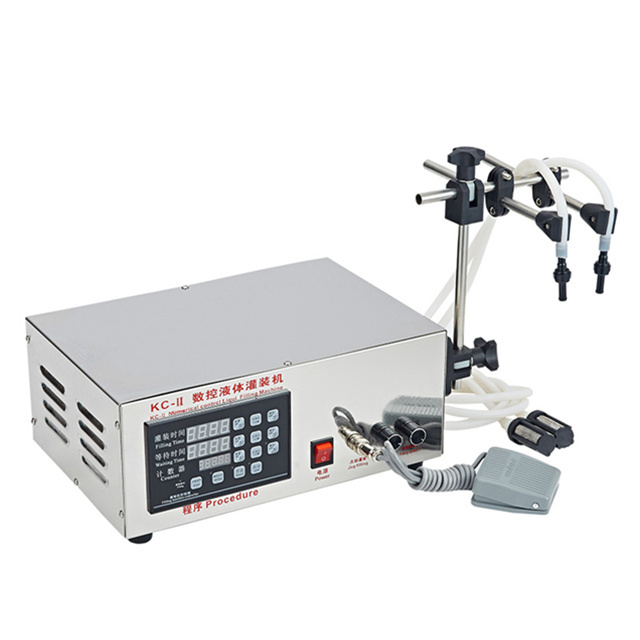

This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc. Liquid suitable: low viscous liquid like water, wine, solutions etc. Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles. The tubes are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility. We can customize based your liquid type and filling rate,to equip related pumps types and filling nozzle,from manual to semi automatic to full automatic.
Machine Details
*English and Chinese Visual Control Panel
Each button have English and Chinese, simple and easy to read and control.
*Full Stainless Steel Machine Body
Full stainless steel machine body, easy to clean and rust protection, durable.
*Best Feeding Pipe plastic material
Food-grade plastic feeding pipe, which meet the food quality inspection standard, Corrosion resistant, the feed inlet has a filter, it makes your filling work safety.
*Adopt Drip-Proof Nozzle Design
Adopt drip-proof nozzle design, filling will be more accuracy.
*Multi-Direction Support Frame
Multi-Direction support frame, it make your filling work more convenience.
*High Quality Imported Single Chip Controller
This machine adopts the import SCM controller, the stability is good and durable.
Machine Parameter
|
Model
|
KC-280II
|
|
Power
|
60W
|
|
Voltage
|
220V(Customize)
|
|
Filling Range
|
5ML-3500ML
|
|
Max Feeding Distance
|
8 Meter
|
|
Max Quantity of Flow
|
4.5 L
|
|
Repetitive Error
|
<1.5%
|
|
Machine Dimension
|
450*250*150MM
|
|
Machine Net Weight
|
6KG
|
Application
This machine is suitable for filling liquid, such as water, juice, alcohol etc.
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
