Quick Details
-
Voltage:
-
220/380V 50HZ
-
Power (kW):
-
20
-
Weight (KG):
-
200
-
Certification:
-
CE ISO
-
Capacity:
-
2200-2500bph
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MERCKPACK
-
Year:
-
2019
-
Voltage:
-
220/380V 50HZ
-
Power (kW):
-
20
-
Weight (KG):
-
200
-
Certification:
-
CE ISO
-
Capacity:
-
2200-2500bph
Product Description

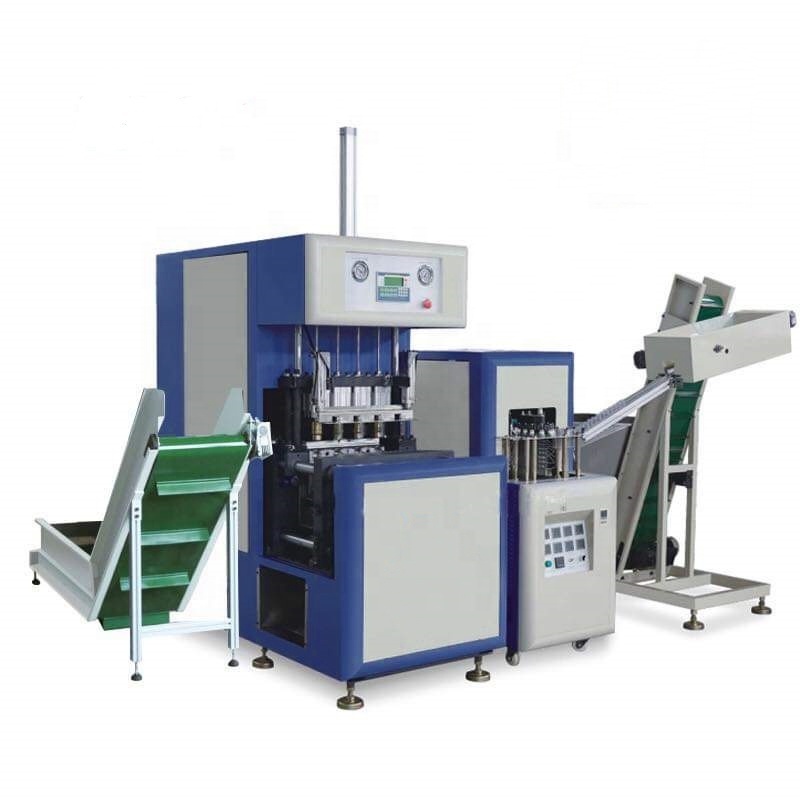

Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 1.5L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.
|
Container
|
Preform Material
|
|
-
|
PET
|
|
|
|
Theoretical Production Capacity
|
|
BPH
|
2500 BPH
|
|
|
|
Max. Volume
|
|
L
|
1.5
|
|
|
|
Max. Diameter
|
|
mm
|
105
|
|
|
|
Max. Bottle Height
|
|
mm
|
360
|
|
|
Molding Unit
|
Clamping Force
|
|
Kn
|
180
|
|
|
|
Max. Mould Plate Dimension(L*W)
|
|
mm
|
700*420
|
|
|
|
Mould Opening Stroke
|
|
mm
|
200
|
|
|
|
Max. Mould Thickness
|
|
mm
|
240
|
|
|
|
Number of Cavity
|
|
cavity
|
4
|
|
|
Electricity
|
Installed Power
|
|
kw
|
21
|
|
|
|
Heating Power
|
|
kw
|
20
|
|
|
|
Voltage/frequency
|
|
v/hz
|
220-380V/50-60Hz
|
|
Packing&Shipping
Standard Wooden Case
