Quick Details
-
Structure::
-
G+G
-
Product name::
-

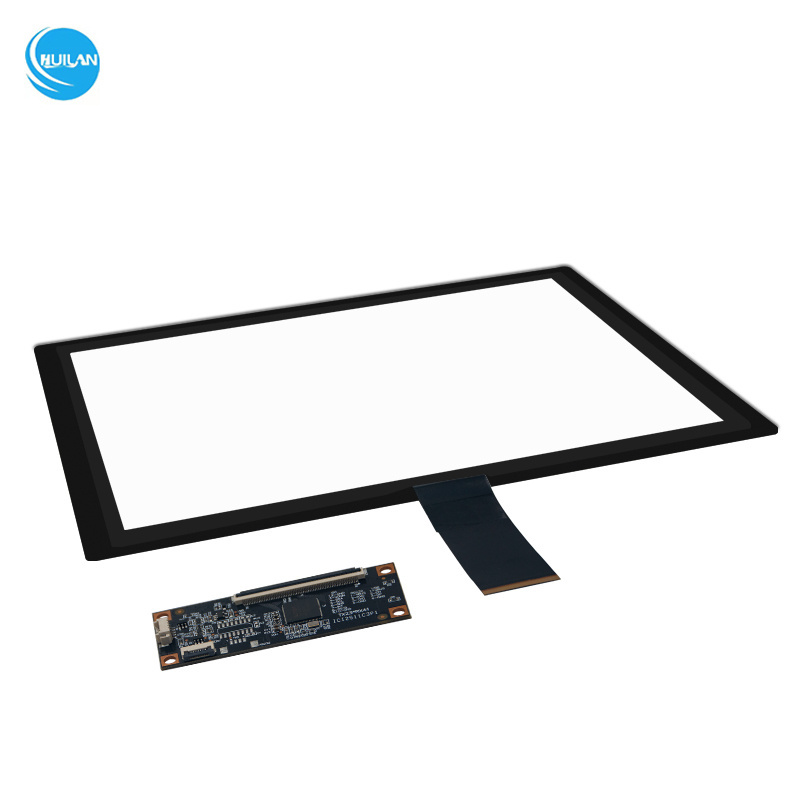

waterproof capacitive touch screen
-
Ratio::
-
4:3
-
Cover Lens O.D.(mm):
-
207 * 166
-
Sensor Glass O.D.(mm):
-
175.05 * 135.54
-
Touch Points::
-
10 Touch Points
-
Interface Type::
-
USB ,I2C,RS232
Quick Details
-
Type:
-
Capacitive
-
Brand Name:
-
HUILAN
-
Place of Origin:
-
China Guangzhou
-
Structure::
-
G+G
-
Product name::
-
waterproof capacitive touch screen
-
Ratio::
-
4:3
-
Cover Lens O.D.(mm):
-
207 * 166
-
Sensor Glass O.D.(mm):
-
175.05 * 135.54
-
Touch Points::
-
10 Touch Points
-
Interface Type::
-
USB ,I2C,RS232
Products Description
Industry Leadingl Capacitive (PCAP) Portfolio
Projective Capacitive screens from 8"to 55"
The projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). projected capacitive touchscreens are designed for the rigors of commercial applications.
variety of capacitive screens are available
|
size
|
Structure
|
Cover Lens O.D.（mm)
|
Sensor Glass O.D.（mm）
|
C/L Visual Area(mm)
|
Touch controller
|
Total Thickness
|
Ratio
|
|
8''
|
G+G
|
207 * 166
|
175.05 * 135.54
|
163 * 122.5
|
ILITEK 2511
|
2.05 ± 0.2 mm
|
4:3
|
|
10.4''
|
G+G
|
259.1*206.3
|
235.2 * 177.4
|
213.1 * 160.3
|
ILITEK 2511
|
2.05 ± 0.2 mm
|
4:3
|
|
12.1''
|
G+G
|
293 * 237
|
258 * 196.5
|
258 * 196.5
|
ILITEK 2511
|
2.05 ± 0.2 mm
|
4:3
|
|
13.3''
|
G+G
|
337 * 208
|
306.4 * 176.5
|
294 * 166
|
ILITEK 2511
|
2.05 ± 0.2 mm
|
16:9
|
|
15''
|
G+G
|
344 * 268
|
320 * 245
|
304 * 228
|
ILITEK 2511
|
2.05 ± 0.2 mm
|
4:3
|
|
15.6''
|
G+G
|
387 * 236
|
358.23 * 209.54
|
344.5 * 193.5
|
ILITEK 2511
|
2.95 ± 0.3 mm
|
16:9
|
|
17''
|
G+G
|
378 * 315
|
354.92 * 287.84
|
338.92 *271.34
|
ILITEK 2510
|
2.05 ± 0.2 mm
|
5:4
|
|
18.5''
|
G+G
|
458 * 283
|
423.8 * 246.4
|
410.8 * 231.4
|
ILITEK 2510
|
2.95 ± 0.3 mm
|
16:9
|
|
19''
|
G+G
|
418 * 348
|
395.32 * 320.56
|
377.32 *302.06
|
ILITEK 2510
|
2.05 ± 0.2 mm
|
5:4
|
|
21.5''
|
G+G
|
524* 321.8
|
493.64 * 286.11
|
477.6 * 269.1
|
ILITEK 2510
|
2.95 ± 0.3 mm
|
16:9
|
|
27''
|
G+G
|
646.17*38395
|
620 * 359
|
598 * 336
|
ILITEK 2312
|
3.95 ± 0.3 mm
|
16:9
|
|
32'
|
G+G
|
754.7*449.3
|
721.5 * 416.65
|
698.7 * 393.3
|
ILITEK 2312
|
4.35 ± 0.3 mm
|
16:9
|
