Quick Details
Quick Details
-
Type:
-
Paper Folding Machine
-
Place of Origin:
-
Beijing, China
-
Processing speed:
-
70-100 book/minute

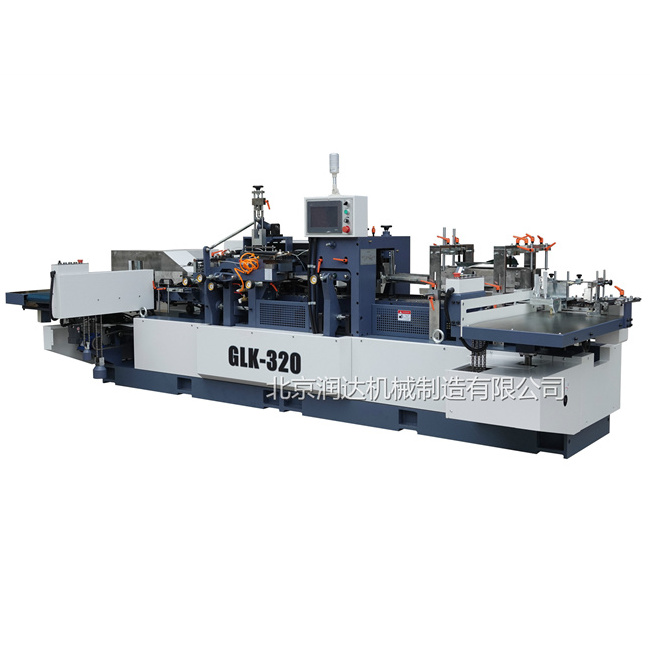

GLK320 Book Flapping Machine
Parameters
Functions:
The book flapping machine to complete book block fore edge cutting(trimming), paper scraps sucking,book cover creasing and folding.
Advantages:
The machine adopts Germany Schneider & Japan Mitsubishi control system, Japan Panasonic servo system and Japan Omron switch.Machine max mechanical speed can reach 45-100 books/minute.
Parameters:
| No. | Name | Description | ||
| 1 | Model | GLK460 | GLK320 | ZK320 |
| 2 | Max book size | 460*250mm | 320*240mm | 320*240mm |
| 3 | Min book size | 125*100mm | 130*94mm | 150*105mm |
| 4 | Max book thickness | 55mm | 50mm | 40mm |
| 5 | Min book thickness | 5mm | 6mm | 6mm |
| 6 | Max book cover folding width | 160mm | 160mm | 160mm |
| 7 | Min book cover folding width | 40mm | 40mm | 40mm |
| 8 | Max mechanical speed | 100 books/minute | 70 books/minute | 45 book/minute |
| 9 | Power | 23KW | 5KW | 4KW |
| 10 | Overall size | 11500*1500*2100mm | 4600*1920*1600mm | 3060*1450*1606mm |
| 11 | Weight | 3800KG | 2400KG | |
Configurations
| GLK460 GLK320 Configurations | |||
| Code Name | Name | Type | Brand |
| QF1 | Breaker | OSMC32N3D32 | Schneider |
| QF2 | Breaker | OSMC32N3D4 | Schneider |
| QF3 | Breaker | OSMC32N1C6 | Schneider |
| KM1 | Contactor | LC1D38M7C AC220V | Schneider |
| FR1 | Thermal relay | LRD06C 1-1.6A | Schneider |
| KA3-12 | Intermediate relay | RXM2LB2BD/RXZE1M2C | Schneider |
| KA1-KA2 | Power realy | RPM42BD/RPZF4 | Schneider |
| EB1-EB3 | Press button head | ZB2BS54C/ZB2BZ101C | Schneider |
| SA1-SA3 | Optional switch | ZB2BD2C/ZB2BZ101C | Schneider |
| SB1-SB3 | Positive transfer button | ZB2BA3C/ZB2BZ101C | Schneider |
| SB4-SB5 | Reverse point move button | ZB2BA1C/ZB2B101C | Schneider |
| TC | Switching mode power supply | ABL2REM24020H | Schneider |
| PLC | Programmable controller | TM218LDA40RN | Schneider |
| HMI | Programmable man-machine interface | HMIGX0552 | Schneider |
| INV1 | Frequency transfomer | ATV312HU55N4 | Schneider |
| HL1 | Alarm light | HVGB2SM | Schneider |
| SB6-SB7 | Reset button | ZB2BA5C/ZB2BZ101C | Schneider |
| SQ1 | Photoelectric switch | E3Z-T61 2M BY OMC | Omron |
| DT | Power switch | TDS40 | TEND |
| SQ2 | Photoelectric switch | E3JK-DS30M1 2 BY OMC | Omron |
| INV2 | Frequency transformer | AVF200-0074 | Panasonic |
| SQ3 | Photoelectric switch | CX441 | Panasonic |
| SQ4 | Travel switch | V-155-1A5 | Omron |
| SQ5 | Inches switch | D4MC-5020 | Omron |
| SQ6 | Proximity switch | TL-Q5MC1-Z | Omron |
| SQ7 | Photoelectric switch | E3Z-T61 2M BY OMC | Omron |
| FN | Fan | DP200A 220V 0.1A | Sunon |
| SB8 | White button | ZB2BA1C/ZB2BZ101C | Schneider |
| SA4 | Optional switch | AB2BD2C/ZB2BZ101C | Schneider |
| EB4 | Scram button | ZB2BS54C/ZB2BZ101C | Schneider |
| KA13-KA14 | Power relay | RPZF4/RXM2LB2BD | Schneider |
| QF4 | Breaker | OSMC32N3C6 | Schneider |
