Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
110*100*75CM
-
Weight:
-
190KGS/200KGS
-
Warranty:
-
1 year
-
Certification:
-
ce
-
COLOR:
-
BLUE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
PR-15/PR-30
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
110*100*75CM
-
Weight:
-
190KGS/200KGS
-
Warranty:
-
1 year
-
Certification:
-
ce
-
COLOR:
-
BLUE

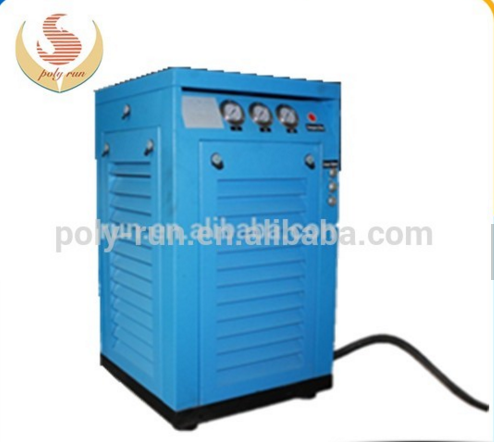

CNG Compressor for Home PR-15/PR-30
Specifications:
Simple installation and operation, low service cost .anti-explosive designed of this compressor make it running in safety. Separate electric controller equipped. It is an ideal unit for filling 2 vehicles at same time, for outdoor and indoor use.
Technology
|
Code |
GS-15 |
GS-30 |
|
|
|
|
|
|
|
Flow rate |
15 Nm3/h 9 cfm |
30 Nm3/h |
18 cfm |
|
|
48 minutes for 60L |
20 minutes for 60L |
|
|
|
tank(200bar 3000psi) |
tank(200bar 3000psi) |
|
|
|
55 minutes for 60L |
25 minutes for 60L |
|
|
Filling time |
tank(250bar 3600psi) |
tank(250bar 3600psi) |
|
|
|
200bar /3000psi or |
200bar /3000psi or |
|
|
Working pressure |
250bar /3600psi |
250bar /3600psi |
|
|
Inlet pressure |
Less than 0.3bar 4.5psi |
Less than 0.3bar 4.5psi |
|
|
|
EX 5.5kw/7.5hp |
EX 11kw/15hp |
|
|
Engine power |
50/60hz three phase |
50/60hz three phase |
|
|
Oil separator / oil filter |
2/1 |
2/1 |
|
|
Safety valve/ Alarm sensor |
1 in final/ option |
1 in final/ |
option |
|
Starter/ Time meter |
Manual/1 |
Manual/1 |
|
|
Switch/ Emergency stop |
Auto stop/ 1 |
Auto stop/1 |
|
|
Condensate / gas drain |
manual |
manual |
|
|
Filling hose connect |
2 |
2 |
|
|
Dimensions (H-W-D) |
1100-1000-750 mm |
1100-1000-750 mm |
|
|
Weight |
190 kg |
200 kg |
|
|
Noise level |
70 db(A) |
70 db(A) |
|
