Quick Details
-
Brand Name:
-
YOULIKE
-
Model Number:
-
M3 FLUSH
-
product name:
-

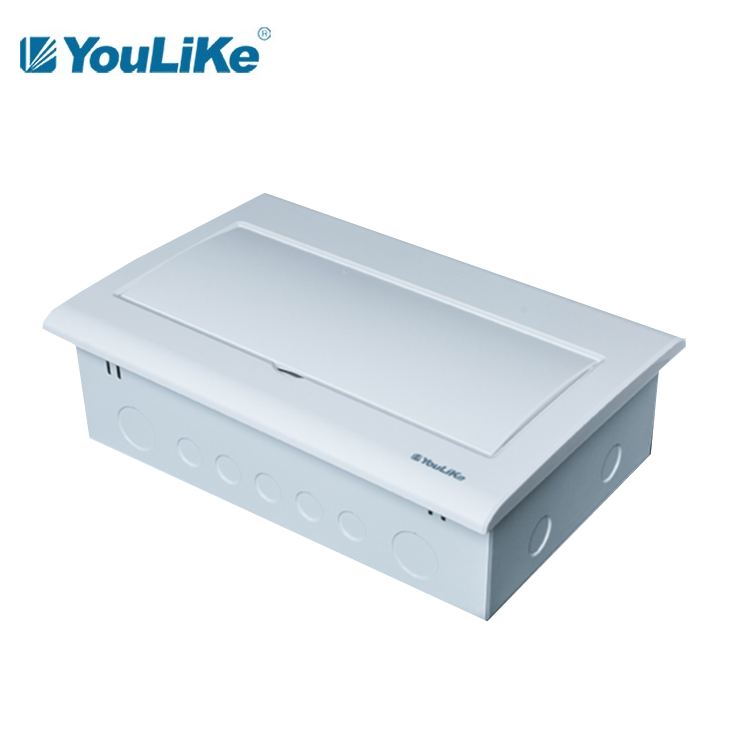

14 Way Electricity Distribution Board
-
Box material:
-
Powder-coated plate/ galvanized plate
-
Ingress protection:
-
IP40
-
Way dimension:
-
18mm
-
Rated current:
-
55A/ 63A
-
Rated voltage:
-
400V+/-20%
-
Plate thickness:
-
0.8mm, 1mm, 1.2mm
-
White door material/Transparent:
-
ABS/ PC
-
Cover base material:
-
ABS/ flame retardant ABS
-
Mounting Type:
-
flush
-
Color:
-
White
Quick Details
-
Voltage:
-
Low voltage
-
Current:
-
55A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOULIKE
-
Model Number:
-
M3 FLUSH
-
product name:
-
14 Way Electricity Distribution Board
-
Box material:
-
Powder-coated plate/ galvanized plate
-
Ingress protection:
-
IP40
-
Way dimension:
-
18mm
-
Rated current:
-
55A/ 63A
-
Rated voltage:
-
400V+/-20%
-
Plate thickness:
-
0.8mm, 1mm, 1.2mm
-
White door material/Transparent:
-
ABS/ PC
-
Cover base material:
-
ABS/ flame retardant ABS
-
Mounting Type:
-
flush
-
Color:
-
White
Distribution Board Electrical Transfer Switch Waterproof 14 Way Electrical Distribution Db Circuit Breaker Box
Related Product
M3 Flush Series Specification
| Type | Box dimension(mm) | Material | Cover dimension(mm) |
| 10way |
256×210×90×1.0 |
ABS/PC+METAL | 278×240×20.0(29.0) |
|
12way
|
292×210×90×1.0 |
ABS/PC+METAL | 316×240×20.0(29.0) |
|
14way
|
328×210×90×1.0 |
ABS/PC+METAL | 352×240×20.0(29.0) |
| 16way |
364×210×90×1.0 |
ABS/PC+METAL | 388×252×20.0(29.0) |
|
18way
|
400×210×90×1.0 |
ABS/PC+METAL | 424×252×20.0(29.0) |
| 20way |
436×210×90×1.0 |
ABS/PC+ METAL | 460×252×20.0(29.0) |
| 24way |
292×380×90×1.0 |
ABS/PC+ METAL | 316×415×22.3(31.3) |
|
32way
|
364×380×90×1.0 |
ABS/PC+METAL | 388×415×22.3(31.3) |
|
40way
|
436×380×90×1.0 |
ABS/PC+METAL | 460×415×22.3(31.3) |
Certificates
Exhibitions
Company
The biggest manufacturer for high quality distribution box since 2005.
Production Capacity : 1. 30,000 square meters production center , including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line , to ensure quality stablility and production efficience.
Market service: 1. yesr service for over 1,800 panel builders and 2,000 real estate companies .
2. Over 500 fully skilled support team , 22 national branches .
3. Stable delivery time all year long as 15days .
R&D ability: 1. Over 65 national patents , to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
