Connector connection
Sliding block installation, optional side mounting bracket and top mounting bracket
Section size: 26* 30mm
Short-circuit protection
overcurrent protection
polarity reversal protection
Real time self-test function
Optical synchronization design, can be powered separately Automatic synchronization signal, effectively avoiding electromagnetic interference
- Product Details
- {{item.text}}
Quick Details
-
Description:
-
safety protection light curtains, safety light curtain
-
Model Number:
-
SOP-E40
-
Type:
-
safty protection light curtain
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Senyd
-
Theory:
-
photoelectric through-beam principle
-
Output:
-
NPN/PNP NC/NO relay
-
power supply:
-
24VDC/12VDC
-
Response Time:
-
200us
-
working ambient temperature:
-
-10~55℃
-
output current:
-
≤500mA
-
light curtain type:
-
through-beam
-
power consumption:
-
<5W
-
number of beams:
-
6-200
-
beam spacing:
-
10mm/20mm/40mm
-
protection height:
-
refer to datasheet
Quick Details
-
Use:
-
safety protection
-
Series:
-
SOP-E40
-
Mounting Type:
-
mounting bracket
-
Description:
-
safety protection light curtains, safety light curtain
-
Model Number:
-
SOP-E40
-
Type:
-
safty protection light curtain
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Senyd
-
Theory:
-
photoelectric through-beam principle
-
Output:
-
NPN/PNP NC/NO relay
-
power supply:
-
24VDC/12VDC
-
Response Time:
-
200us
-
working ambient temperature:
-
-10~55℃
-
output current:
-
≤500mA
-
light curtain type:
-
through-beam
-
power consumption:
-
<5W
-
number of beams:
-
6-200
-
beam spacing:
-
10mm/20mm/40mm
-
protection height:
-
refer to datasheet
Product Overview

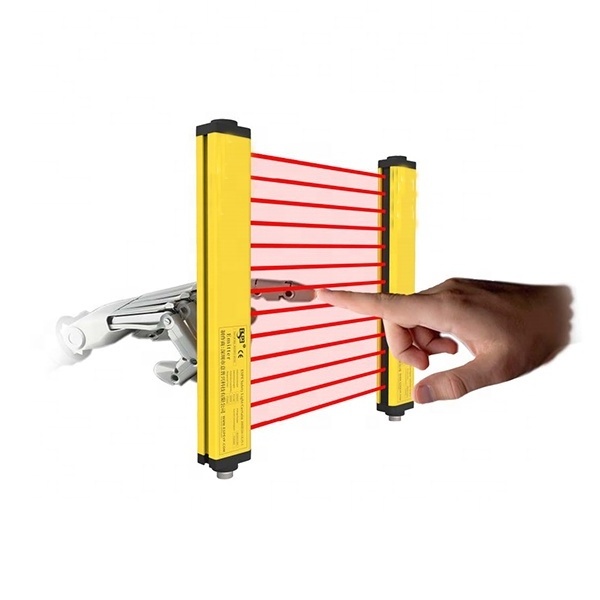

Senyd SOP-E40 series universal safety light curtains
safety light curtains are advanced safety devices used in industrial settings to protect personnel from hazardous areas around machinery. These safety light curtains use infrared light beams to create an invisible safety barrier. If this barrier is breached by a person or object, the light curtain will send a signal to the machinery to stop or initiate a safety response.
SOP-E40 series safety light curtain adopts the principle of optical lens,and the detection width 3m,which can effectively detect any opaque objet entering the light curtain area.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Power supply
|
24vdc
|
|
|
protection height
|
60-2000mm
|
|
|
response time
|
max.5ms
|
|
|
type
|
through beam
|
|
|
output
|
PNP NPN RELAY
|
|
|
protection width
|
0.1m-20m
|
|
|
operation temperature
|
-10...55℃
|
|
|
resolution
|
10/15/20/25/30/45mm
|
|
