Main electric is Schneider brand .
Equipped with open door automatic power-off protection device , more safe .
- Product Details
- {{item.text}}
Quick Details
-
Year:
-
2021
-
Voltage:
-
220v 380v
-
Dimension(L*W*H):
-
1740X810X1830
-
Motor Power (kW):
-
5.5
-
Weight (T):
-
1.9
-
Usage:
-
Pressing Metal Products
-
Keyword:
-
punching and shearing machine
-
Function:
-
Punching Shearing Bending
-
Product name:
-
combined punching and shearing machines
-
Model:
-
Q35Y Ironworker
-
Certification:
-
CE ISO
-
Application:
-
Metal Sheet Stamping
-
Color:
-
Customized
Quick Details
-
Nominal Force (kN):
-
600
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Rongwin
-
Year:
-
2021
-
Voltage:
-
220v 380v
-
Dimension(L*W*H):
-
1740X810X1830
-
Motor Power (kW):
-
5.5
-
Weight (T):
-
1.9
-
Usage:
-
Pressing Metal Products
-
Keyword:
-
punching and shearing machine
-
Function:
-
Punching Shearing Bending
-
Product name:
-
combined punching and shearing machines
-
Model:
-
Q35Y Ironworker
-
Certification:
-
CE ISO
-
Application:
-
Metal Sheet Stamping
-
Color:
-
Customized
Product Description

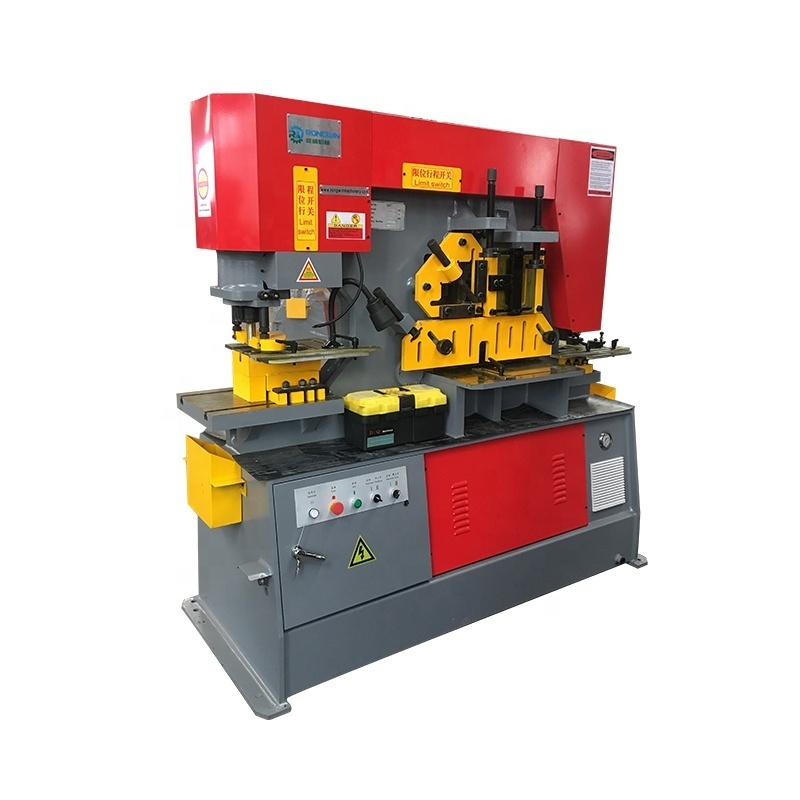

Q35Y series hydraulic ironworkers combined punching and shearing machines
is designed by the most advanced technology, which has the advantages of easy operation, low consumption and low maintenance cost.
Hydraulic ironworkers
machine has multiple functions, including: round hole, square hole, rectangular hole punching; steel plate, flat steel, angle steel, C-groove, H-shaped steel punching; steel plate bending; angle steel shearing, notching and bending; Flat, round, square bar, C-shaped channel, I-beam, T-bar shear; angle bending and pipe notching.
Q35Y series hydraulic ironworker tools have multi-function functions, which is your first choice among similar machines. In addition, all components are of the highest quality in terms of safety, function, performance and maintenance.
Electrical Cabinet
-
-
-
-
-
Main Motor and Valve
Chinese famous brand Shuangta motor and imported valve from Japan
Laser calibration
Higher processing accuracy and easy operation.
Detailed Images
Backgauge
The stop backgauge can be adjusted in accordance with the shearing length, thus, it can control efficient shearing length automatically.
Notching
Special design can excellently cut right-angle, bevel and notch on the angle steel, profile steel and plates. There is a large visible window with scale and stop gauge.
Punching
Full range of universal punches and dies are available . Unique style allows for large angle iron punching, pipe punching and large channel punching .
Bending
Channel steel shearing
I-beam shearing
Round and Square bar shearing
Round and Square bar shear has multiple holes for a variety of sizes. Adjustable hold own for clean square cutting. Optional Channel and beam shears available.
Steel plate and angle steel shearing
There are several visible holes in adjustable holder, which can ensure accurate shearing of steel plates and 45°angle.Working table with scales and adjustable plates can do angle shearing.
Automatic presser foot
Optional automatic presser foot device, saving time and effort, simple operation.
Optional
We also provide CNC hydraulic ironworkers with E21 controller and automatic backgauge.
The ironworker CNC backgauge can be positioned more conveniently, the operation is simpler and the efficiency is higher.
Product Paramenters
|
Model
|
Q35Y-16
|
Q35Y-20
|
Q35Y-25
|
Q35Y-30
|
Q35Y-40
|
Q35Y-50
|
|
L(mm)
|
1650
|
1950
|
2350
|
2680
|
2800
|
3000
|
|
W(mm)
|
800
|
900
|
980
|
1060
|
1160
|
1440
|
|
H(mm)
|
1780
|
1930
|
2100
|
2380
|
2400
|
2450
|
|
Weight(Kg)
|
1900
|
2600
|
4800
|
6800
|
9200
|
12800
|
