Quick Details
-
Rated Lifting Moment:
-
11000 t.m
-
Max. Lifting Height:
-
178m
-
Place of Origin:
-
China
-
Brand Name:
-
zoomlion
-
Max. length of light boom:
-
150m
-
Max. shipping weight per piece:
-
40ton
-
Max. length of heavy boom:
-
141m
-
Engine power:
-
420/1800 kw/rpm
-
Gradeability:
-
30%
Quick Details
-
Weight (KG):
-
800000
-
Application:
-
Engineering Constuction Or Other
-
Rated Loading Capacity:
-
800ton
-
Rated Lifting Moment:
-
11000 t.m
-
Max. Lifting Height:
-
178m
-
Place of Origin:
-
China
-
Brand Name:
-
zoomlion
-
Max. length of light boom:
-
150m
-
Max. shipping weight per piece:
-
40ton
-
Max. length of heavy boom:
-
141m
-
Engine power:
-
420/1800 kw/rpm
-
Gradeability:
-
30%
Contact Way

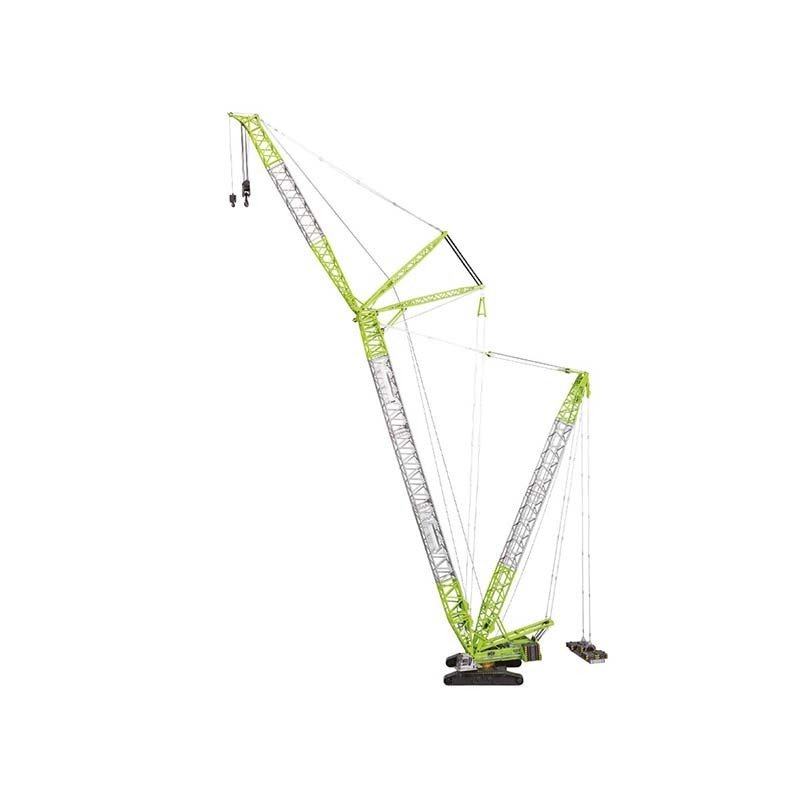

Good Performance 800Ton Mobile Hydraulic Crawler Crane ZCC9800W with Telescoping Boom Hot Sale
Product Overview
China's first ultra-long multi-diameter boom combination; the boom with ultra-wide arm working condition can be up to 171 + 7m, the maximum lifting height is 180m; the overall coverage of 140m 3MW wind turbines, 160m 2.0MW ~ 2.5MW wind turbines .
The wind power of the conventional boom can reach up to 159 + 7m, covering a total of 140m of 2.0MW ~ 2.5MW wind turbines.
Using the upper and lower car separation technology, the maximum transport weight of a single piece is 40t, which meets global road transportation; lightweight, modular design, fully mechanized disassembly and assembly, unique wind power pole head structure, the longest wind power can be completed within 24 hours Assembly under working conditions.
Product Paramenters
|
Model
|
ZCC9800W
|
|
Max. lifting weight
|
800 ton
|
|
Max. lifting moment
|
11000 t.m
|
|
Max. lifting height
|
178 m
|
|
Engine model
|
OM502LA.E3A/3
|
|
Engine power
|
420/1800 kw/rpm
|
|
Superlift mast
|
42 m
|
|
Max. length of heavy boom
|
141 m
|
|
Max. length of light boom
|
150 m
|
|
Gradeability
|
30%
|
|
Operation weight
|
520 ton
|
|
Max. shipping weight per piece
|
40 ton
|
|
Track demension
|
8600 * 10500 * 1500 mm
|
