- Product Details
- {{item.text}}
Quick Details
-
Video Input:
-
hdmi input,support 4096x2160@60fps / 3840x2160@60 / 2560x1440@144fps
-
Audio Input:
-
HDMI embed audio & External Analog audio input
-
Streaming Protocols:
-
SRT /HTTP / HLS / FLV / RTSP / RTMP(S) / UDP / RTP
-
Audio Format:
-
AAC/AAC+/AAC++/MP3/MP2/AC3 G711
-
Video Format:
-
H.264/AVC,H.265/HEVC
-
Video Resolution:
-
Max support 4096x2160@60fps
-
Bitrate Control:
-
VBR/CBR
-
Video FPS:
-
5-144FPS
-
Audio Sample Rates:
-
44.1kHz/48kHz
-
Audio Bitrate:
-
12~640kbps
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINE
-
Model Number:
-
E1026-4K
-
Video Input:
-
hdmi input,support 4096x2160@60fps / 3840x2160@60 / 2560x1440@144fps
-
Audio Input:
-
HDMI embed audio & External Analog audio input
-
Streaming Protocols:
-
SRT /HTTP / HLS / FLV / RTSP / RTMP(S) / UDP / RTP
-
Audio Format:
-
AAC/AAC+/AAC++/MP3/MP2/AC3 G711
-
Video Format:
-
H.264/AVC,H.265/HEVC
-
Video Resolution:
-
Max support 4096x2160@60fps
-
Bitrate Control:
-
VBR/CBR
-
Video FPS:
-
5-144FPS
-
Audio Sample Rates:
-
44.1kHz/48kHz
-
Audio Bitrate:
-
12~640kbps

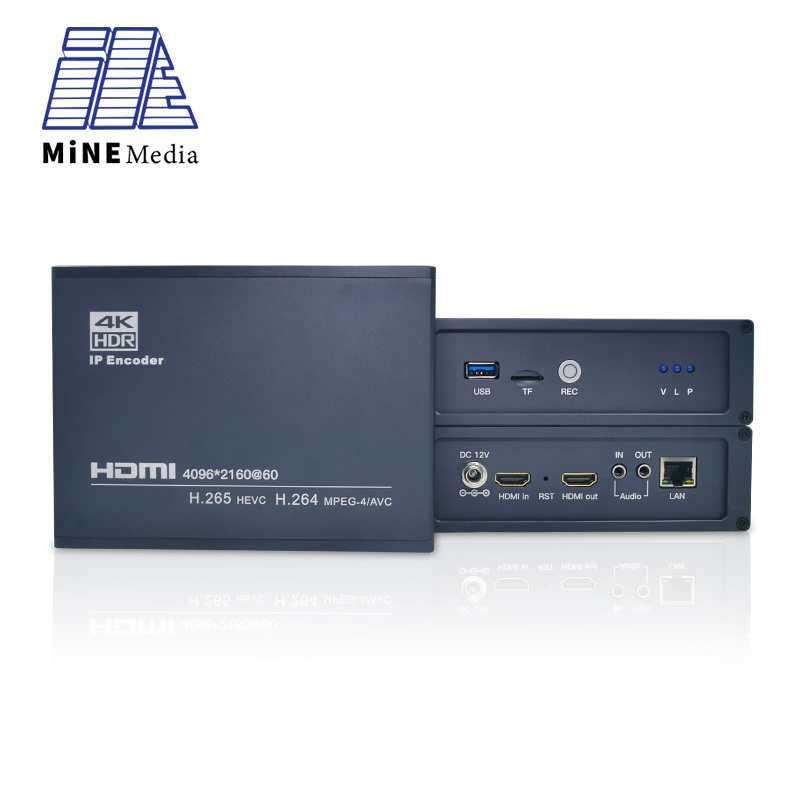

H265 4k@60fps H HDMI to IP IPTV video encoder Support RTMP RTSP UDP Protocol with Loop out
E1026-4K H.26 5 HDMI Video Encoder - which supports input HDMI max resolution at 4096 × 2160 @ 6 0fps, and output stream resolution up to 4096 × 2160 @ 6 0fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features:
1. Embedded HiLinux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. Support HTTP / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF.
4. Support output Multi RTMP (S) ( M ain stream & Sub stream.) to different Media Streaming Server.
5. Support 4K SMPTE 4096x2160@60fps / 3840x2160@60 / 2560x1440@144fps HDMI input and encoding
6. Support BT.2020 WCG
7. Support HDR10, 10bit input and encoding. To fully support 10bit, please ensure that HDMI input is 10bit input, and select h.265 Main10 Profile encoding
8. Support 100m bit rate encoding
9. Support one click recording, support USB 3.0/TF card in NTFS/exFAT/FAT32 format, with SAMBA server built-in, and video can be viewed through network.
10. Support Text and image insert as Stream Logo for M ain stream & Sub stream.
11. Output Stream bitrate adjustable.
12. It supports audio & video Pass-Through by the main chip
13. Support External Analog audio input.
14. Support Audio digital gain.
15. Support remote control via router port forward.
16. Support firmware upgrade.
|
Specification |
|
|
Interfaces |
|
|
Video Input |
HDMI input, Max support 4096x2160@60fps / 3840x2160@60 / 2560x1440@144fps ,etc. |
|
Audio Input |
HDMI embed audio & External Analog audio input |
|
Ethernet |
1 000M bps, RJ-45 |
|
WiFi |
Option – 2.4G |
|
Video Encoding |
|
|
Video Format |
H.264/AVC High/Main/Baseline Profile H.265 /HEVC main profile MJPEG/JPEG baseline |
|
Video Resolution |
Max support 4096x2160@60fps |
|
Video Bitrate |
0.1~ 100 Mbps |
|
Video FPS |
5- 144 FPS |
|
Bitrate Control |
VBR/CBR |
|
Streaming Protocols |
HTTP / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF. |
|
Audio Encoding |
|
|
Audio Format |
AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
|
Sample Rates |
44.1kHz/48kHz |
|
Bitrate |
12~640kbps |
|
System |
|
|
Control Method |
Web based management – IP 192.168.1.168 |
|
Language |
Chinese-English control interface |
|
Firmware |
Ethernet software upgrade |
|
Working environment |
|
|
Operating temperature |
-1 0 to 7 0 deg C |
|
Storage temperature |
–20 to 8 0 deg C |
|
Relative Humidity |
5% to 90% non-condensing |
|
Miscellaneous |
|
|
Dimension ( L × W × H) |
1 50 *1 10 * 45 mm |
|
Approx weight |
500g |
|
Power adapter |
AC input 100-240V 50/60Hz DC output 12V 2A |
Q1, Your Method of shipment?
A1, Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-7 days from China to you, we will choose the best way for you based on our history data, ensure the package will be received safely and smoothly.
Q2, Can I get some Samples?
A2, Yes, sure, we are honored to offer you samples to test, but sample is not free.
While to ensure the products are bought correctly and safely, we will offer online test.
Q3, Can you provide OEM service as per our request? Is it free?
A3, With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
Q4, What about your Warranty?
A4, 1 year warranty for free repair or replacement.
We offer technical supports online by remote help, repair services by our experienced after-sales specialist.
