Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
1.5KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
--
-
Power (kW):
-
1.5
-
Weight (KG):
-
48
-
Model:
-
3020/3040/6030/6040
-
Acceptable material thickness:
-
≤120mm
-
Rack material:
-
12~15mm aluminum plate
-
Table material:
-
Aluminum alloy T table + Water tank
-
Rail type:
-
X Y 1605 ball screw; Z 1204 ball screw, Square line rail track
-
Spindle motor:
-
1500W Air cooling spindle , 0-30000r/min, 6 speed regulation
-
Collet type:
-
ER11,1/8"(3.175mm) Collet
-
Stepper motor and drive:
-
57HS56
-
Repeat positioning Accuracy:
-
0.02mm
-
Communication interface:
-
USB Port
Quick Details
-
Working Table Size(mm):
-
600x400
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 30000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
1.5KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
--
-
Power (kW):
-
1.5
-
Weight (KG):
-
48
-
Model:
-
3020/3040/6030/6040
-
Acceptable material thickness:
-
≤120mm
-
Rack material:
-
12~15mm aluminum plate
-
Table material:
-
Aluminum alloy T table + Water tank
-
Rail type:
-
X Y 1605 ball screw; Z 1204 ball screw, Square line rail track
-
Spindle motor:
-
1500W Air cooling spindle , 0-30000r/min, 6 speed regulation
-
Collet type:
-
ER11,1/8"(3.175mm) Collet
-
Stepper motor and drive:
-
57HS56
-
Repeat positioning Accuracy:
-
0.02mm
-
Communication interface:
-
USB Port

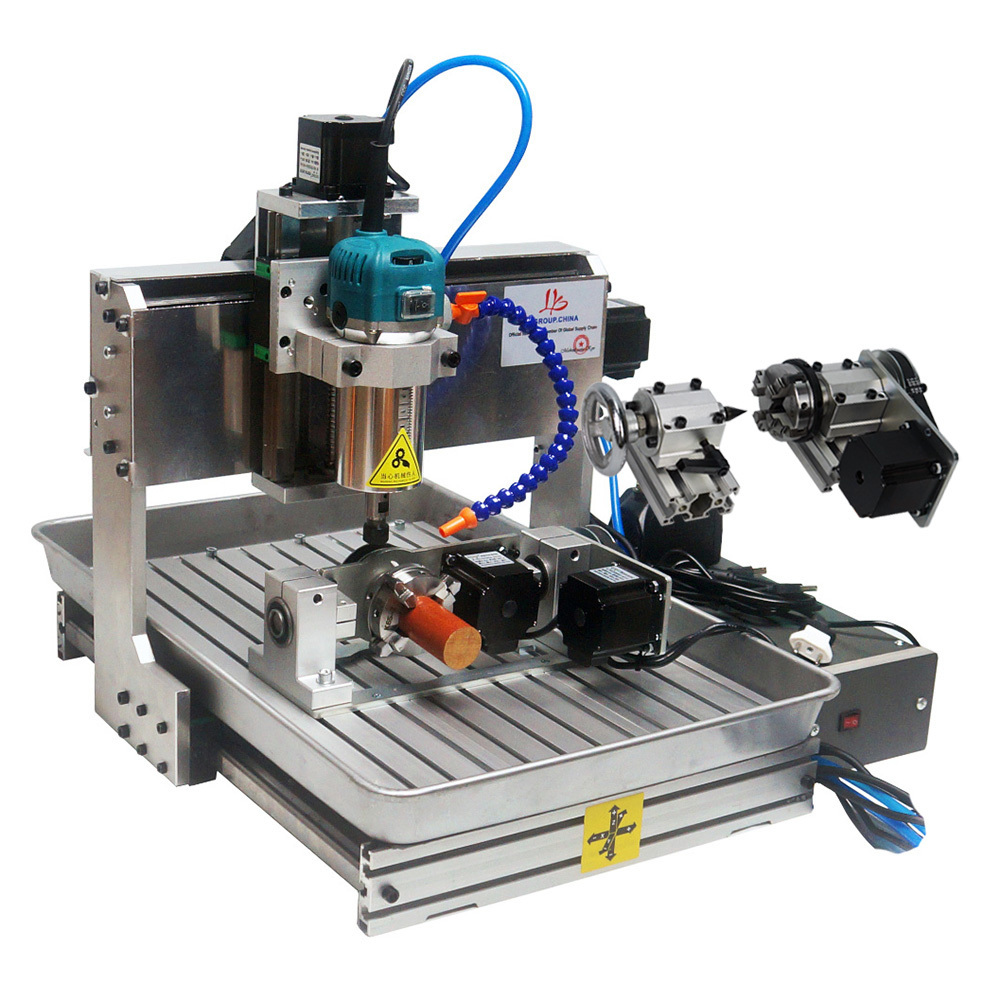

New 5 Axis CNC 6040 Wood Router 1500W 4 Axis Metal Milling Aluminum Engraving Carving Machine 3040 PCB Engraver with Water Tank
Model and Technical Parameters
|
Brand |
LYBGACNC |
|||
|
Model |
LYF2030 |
LYF3040 |
LYF3060 |
LYF4060 |
|
Working stroke (XYZ) mm |
300*400*100 |
300*600*100 |
400*600*100 |
|
|
Machine size cm |
50*40*50 |
62*52*50 |
80*52*50 |
80*60*50 |
|
Weigh |
27 |
31 |
35 |
43 |
|
≤ 120mm |
||||
|
12~15mm aluminum plate |
||||
|
Table material: |
Aluminum alloy T table + Water tank |
|||
|
Rail type |
X Y 1605 ball screw; Z 1204 ball screw, Square line rail track , three-axis is 20 mm square wire track, |
|||
|
Spindle motor |
1500W Air cooling spindle , 0-30000r/min, 6 speed regulation |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
4th Axis (Optional) Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|
5th Axis (Optional) Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts , stepping motor , spindle Free Warranty
Precautions for use
1. Beware of potential safety hazards of electricity use. Please ground the rack and take necessary personal protection measures. It should be placed at a place where children can't touch everyday;
2. The machine is divided into 110 and 220V. Please leave a message when ordering;
3. When the new machine is assembled, the main shaft must be connected to the main shaft output of the control box;
4. After the machine works for a period of time, if the main shaft does not rotate, please check whether the two carbon brushes on the motor are worn;
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
