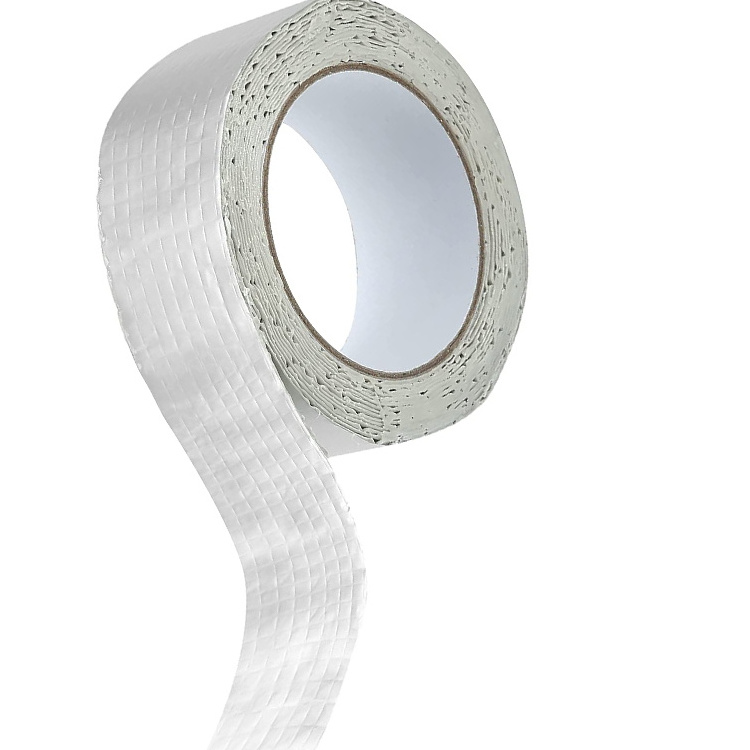

Aluminum single sided self adhesive butyl rubber tape is an exclusive laminate of reflective aluminum foil, rugged, cross-linked polymer films, and a thick layer of butyl rubber. The butyl compound adheres to most surfaces and seals around most punctures, forming a protective waterproof barrier. A high-quality release liner is applied to protect the adhesive surface until installation.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZHB or OEM
-
Model Number:
-
99 serious
-
Type:
-
singel sided butyl tape
-
Product Name:
-
aluminum butyl waterproof tape
-
adhesiv type:
-
butyl rubber
-
Base material:
-
aluminum foil
-
Color:
-
white Other colors can be customized
-
Thickness:
-
1mm-2mm
-
Width:
-
5cm or customized
-
warranty:
-
30 years
-
temperature:
-
-40℃--160℃
-
Certificates:
-
MSDS
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZHB or OEM
-
Model Number:
-
99 serious
-
Type:
-
singel sided butyl tape
-
Product Name:
-
aluminum butyl waterproof tape
-
adhesiv type:
-
butyl rubber
-
Base material:
-
aluminum foil
-
Color:
-
white Other colors can be customized
-
Thickness:
-
1mm-2mm
-
Width:
-
5cm or customized
-
warranty:
-
30 years
-
temperature:
-
-40℃--160℃
-
Certificates:
-
MSDS
Video
Specification
|
Physical Data
|
|
|
||
|
Aluminum layer
|
Sliver,white,blackish green, brick red,As per requirement
|
|
||
|
Butyl Rubber
|
Black,Grey, off-white, As per requirement
|
|
||
|
Roll Width
|
5cm(2”),10cm(4”),15cm(6”),20cm(8”) Max120cm(47.2”)
|
|
||
|
Roll Length
|
5m(16.5ft), 10m(33ft), 15m(50ft), Jumbo rolls 300m(1000ft)
|
|
||
|
Thickness
|
0.5-1.5mm
|
|
||
|
Weight
|
1.65±0.5KG/m² at 1.0mm
|
|
||
|
Technical
|
|
|
||
|
ITEMS
|
Test Method
|
Test Value
|
||
|
Thickness (mm)
|
0.5-1.5MM
|
一
|
||
|
Adhesive force（N/25mm）
|
Based on JIS 0237：2000 180°peel for stainless steel
|
50
|
||
|
Shear adhesion (N/cm2)
|
Adhesion test to shear direction
|
43
|
||
|
Retention force(min)
|
Hanging test piece with vertical position for adhesion area (10mmx20mm) and hooking a weight of 200g, measured the drop time.
|
110
|
||
|
Tensile elongation (%)
|
Based on JIS 0237：2000
|
9
|
||
Aluminum Butyl Tape
DESCRIPTION:
Features:
1.Reliable application performance: its adhesion, water resistance, airtightness, high and low temperature resistance are excellent,and dimensional stability is good.
2.Stable chemical properties: excellent chemical resistance, weather resistance and corrosion resistance.
3.Excellent mechanical properties: high bond strength, high tensile strength, good elasticity and extension properties, strong adaptability to interface deformation and cracking, and excellent follow-up to the deformation of objects.
4.The construction operation process is simple.
Application:
Alu-butyl tape may be used anywhere a fast, dependable waterproofing barrier is needed and is ideal for roofing, patching, gutter repair, flashing, and general waterproofing where the membrane will be exposed. Designed for low-slope roof applications. it is ideal for mobile homes, trailers, RVs, and sun rooms. No glues, torches, tapes or fasteners are required − only a utility knife and a large push or hand roller are needed for installation.
Alu-butyl tape may be used anywhere a fast, dependable waterproofing barrier is needed and is ideal for roofing, patching, gutter repair, flashing, and general waterproofing where the membrane will be exposed. Designed for low-slope roof applications. it is ideal for mobile homes, trailers, RVs, and sun rooms. No glues, torches, tapes or fasteners are required − only a utility knife and a large push or hand roller are needed for installation.
WARM TIPS
Production Process
Our rubber adhesive is refined by ourselves, the quality is guaranteed.
Can be customized according to customer's requirements
Our comparison with some cheap price product on the market
Our products
Defective quality
OEM Service
Packing & Shipping
|
Regular sizes and Packing
|
|
|
|
|||
|
Tape Size
|
Rolls/ Carton
|
Gross Weight
|
Carton Size
|
|||
|
50MM*5M
|
36
|
16KG
|
37CM*37CM*22CM
|
|||
|
100MM*5M
|
18
|
16KG
|
37CM*37CM*22CM
|
|||
|
200MM*5M
|
9
|
16KG
|
|
|||
|
50MM*10M
|
20
|
18KG
|
|
|||
|
100MM*10M
|
10
|
18KG
|
|
|||
|
200MM*10M
|
5
|
18KG
|
|
|||
|
1M*5M*1R
|
2
|
9.35KG
|
25.5*13.5*102CM
|
|||
|
1M*10M*1R
|
1
|
18.15KG
|
15.5*16.5*102CM
|
|||
Certifications
About Us
Nantong Zhonghao Adhesive Products Co., Ltd. was founded in 2012, which is specialized in products of
all tapes. Butyl sealant tapes and butyl waterproofing membrane.
The tapes with high-quality performance, widely used in construction and residential waterproofing, roofing, window-door, automotive sealing, industrial waterproofing.etc. Also,
we export filament tapes, aluminum tapes, PVC tapes, and other adhesive tapes.
